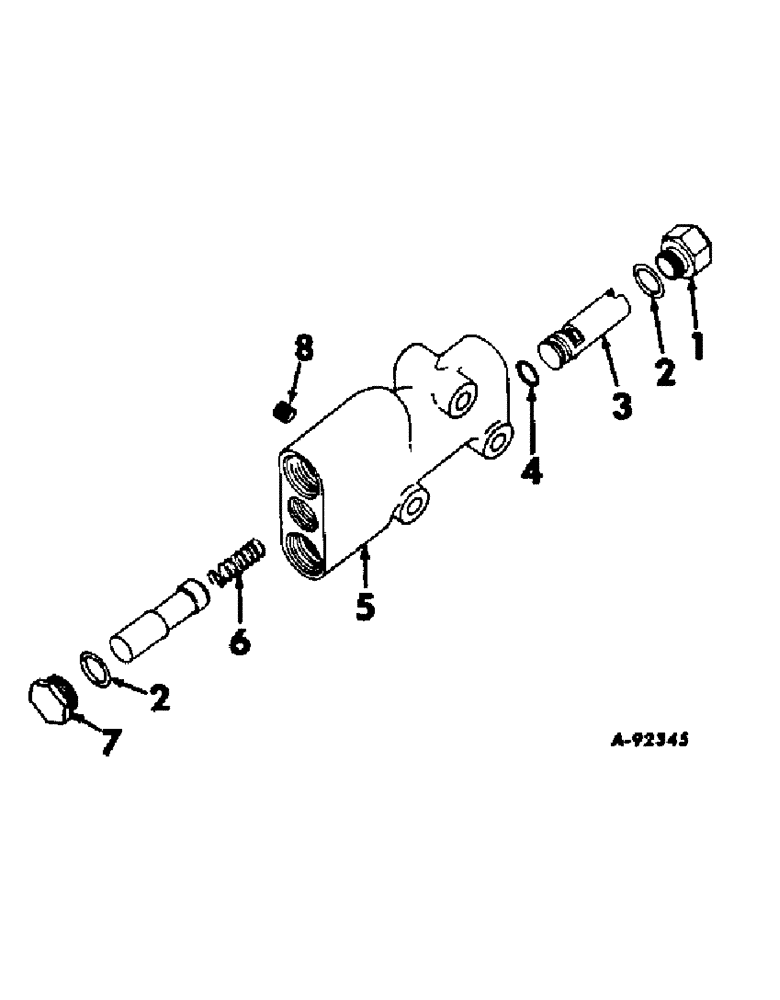

Запчасти Case IH 664 (10-08) - HYDRAULICS, FLOW DIVIDER (07) - HYDRAULICS

543960R91

LOCK VALVE

VALVE ASSY, power steering flow divider

1шт.

1

381336R1

STOP, safety valve

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, safety valve stop

2шт.

3

384444R92

VALVE

ASSY, safety

1шт.

4

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32

1шт.

5

NSS

NOT SOLD SEPARAT

BODY, flow divider valve, not serviced separately, order valve assy

1шт.

6

379211R1

SPRING

flow divider

1шт.

7

379212R11

STOP ASSY, flow divider

1шт.

8

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.
