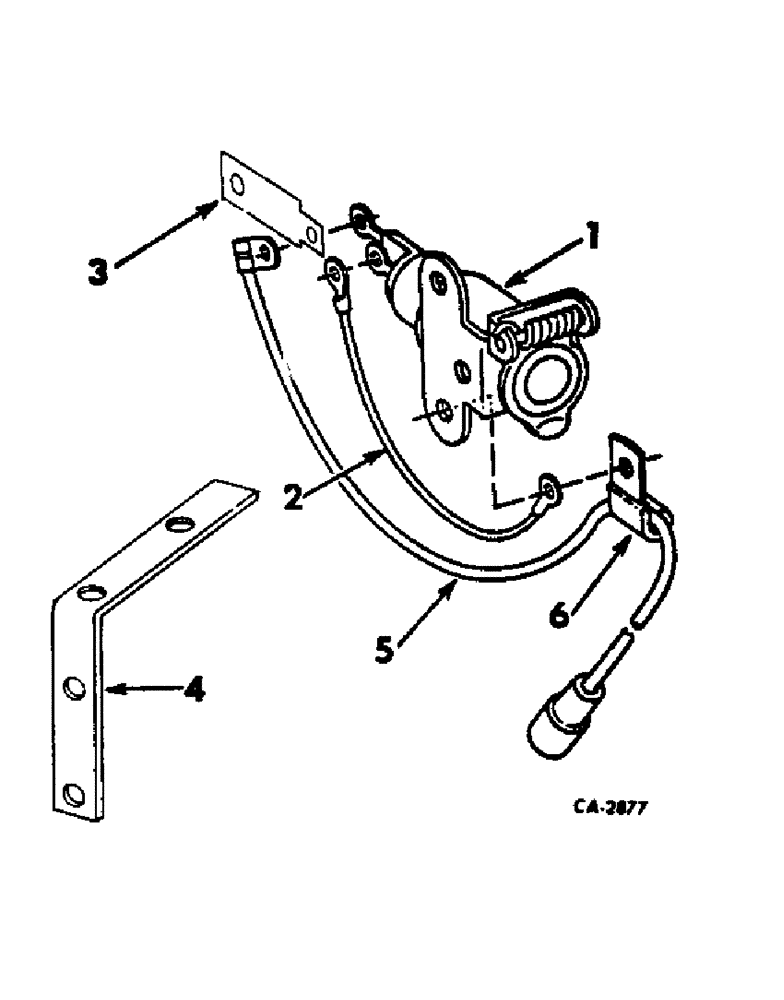

Запчасти Case IH 664 (08-11) - ELECTRICAL, ELECTRIC BREAKAWAY SOCKET (06) - ELECTRICAL

537084R91

PARTS ACCESSORY, electric breakaway connector socket

1шт.

1

362002R92

SOCKET

ASSY, electric breakaway

1шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

2

404395R1

CABLE

ASSY, breakaway, Serial Range: connector-ground

1шт.

3

384396R1

SPADE TERMINAL,Male

TERMINAL, breakaway connector

1шт.

4

537081R1

BRACKET, electric breakaway connector socket

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

180018

CONNECTING LINK

SCREW, 1/4-20 x 5/8 hex-hd cap

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

406688R1

CABLE

ASSY, breakaway connector

1шт.

6

395228R1

CABLE CLIP

CLIP, breakaway connector cable

1шт.
