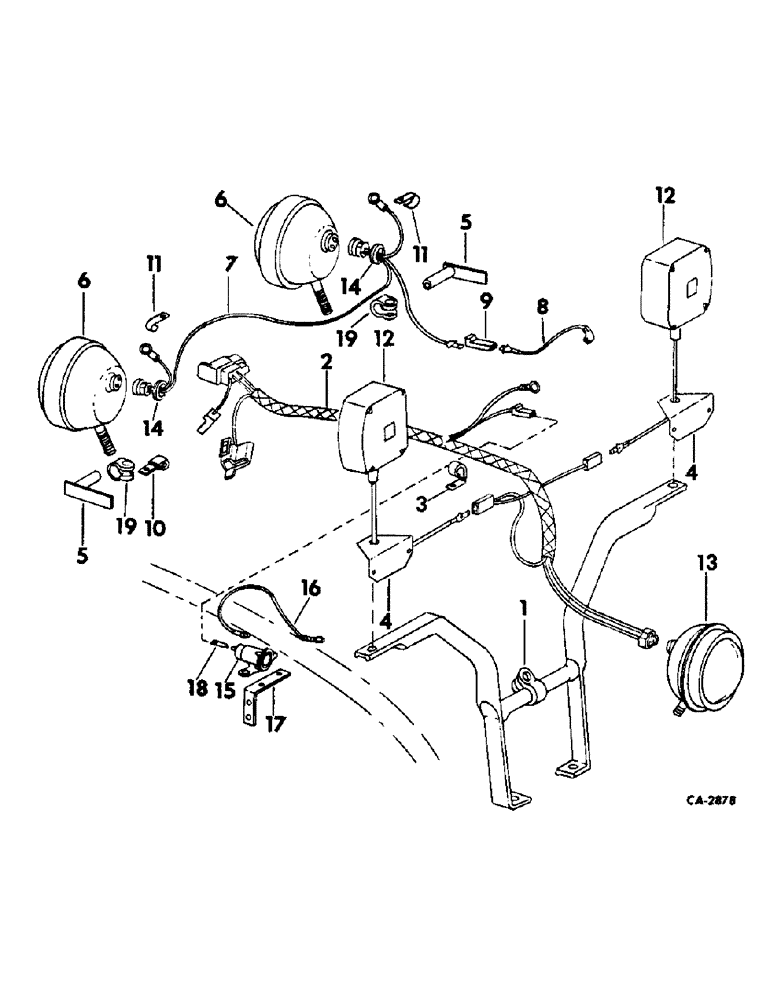

Запчасти Case IH 664 (08-10) - ELECTRICAL, WIRING FOR TRACTORS WITH CROWN FENDERS AND FRONT MOUNTED LIGHTS (06) - ELECTRICAL

1

535867R1

SUPPORT ASSY, warning light

1шт.

2

406693R2

HARNESS

ASSY, rear light

1шт.

3

370821R1

CLIP,ELECTRICAL

CLIP, rear light harness

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

4

533091R1

BRACKET, reflector mtg

2шт.

5

536570R1

POST ASSY, head light

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

4шт.

365503R1

SPACER

light mounting

2шт.

397384R1

SCRAPER RING

SPACER, post mounting

4шт.

6

391005R91

HEADLIGHT

LIGHT, head

2шт.

102637

NUT,1/2"-13, G5

2шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

WASHER, 1/2 C-Z ext

2шт.

7

536572R1

CABLE ASSY, head light

1шт.

8

405224R1

CABLE ASSY, headlamp switch

1шт.

9

376749R1

BODY

CONNECTOR, single unit

1шт.

10

375389R1

CLIP, head light cable

2шт.

11

366460R1

CABLE CLIP

CLIP, head light cable

2шт.

12

NSS

NOT SOLD SEPARAT

FLASHING WARNING LIGHT, refer to starting and lighting listing

2шт.

13

NSS

NOT SOLD SEPARAT

COMBINATION REAR LIGHT, refer to starting and lighting listing

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

14

120408

GROMMET,1/2" ID x 1 1/16" x .188", Diag Cut

head lamp cable

2шт.

15

362002R92

SOCKET

ASSY, electric breakaway

1шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

16

404395R1

CABLE

ASSY, breakaway connector, Serial Range: socket-ground

1шт.

17

537081R1

BRACKET, electric breakaway connector socket

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

384396R1

SPADE TERMINAL,Male

TERMINAL, breakaway connector

1шт.

19

350920R1

CLAMP

2шт.
