(08-09[1]) - ELECTRICAL, BATTERY TRAY

Запчасти Case IH 664 (08-09[1]) - ELECTRICAL, BATTERY TRAY (06) - ELECTRICAL

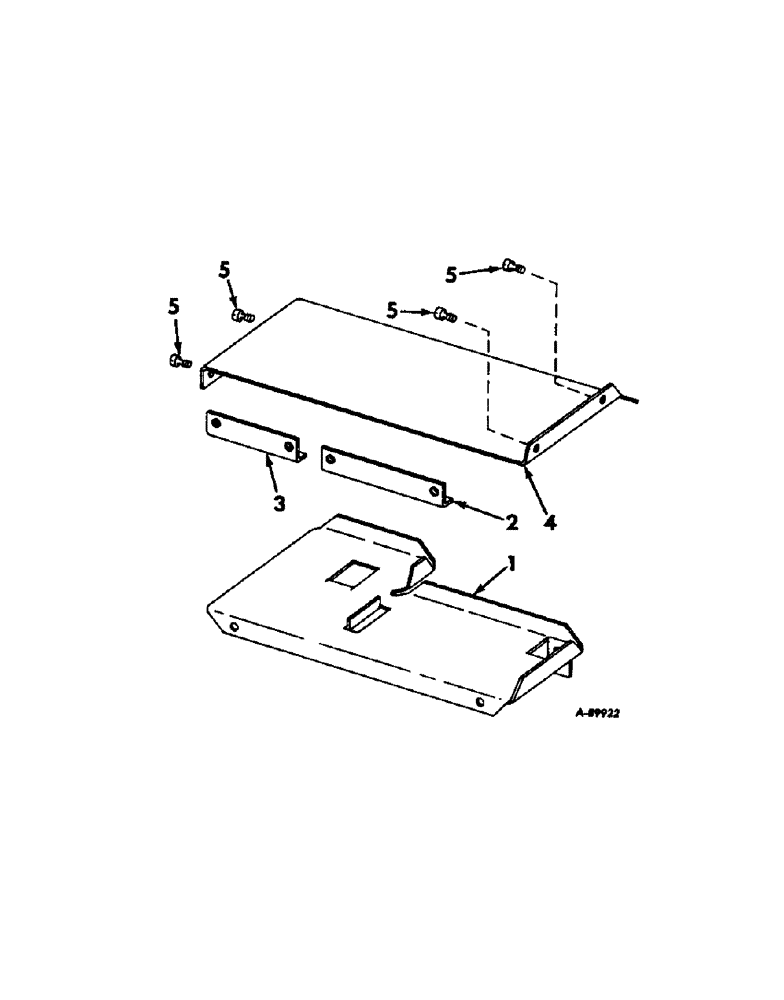

Схема запчастей Case IH 664 - (08-09[1]) - ELECTRICAL, BATTERY TRAY (06) - ELECTRICAL
5
1
2
5
5
4
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

395999R1

TRAY ASSY, battery

1шт.

2

396001R1

ANGLE ASSY, rear battery hold-down

1шт.

3

396003R1

ANGLE ASSY, front battery hold-down

1шт.

4

396007R1

COVER, battery

1шт.

5

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, battery cover thumb

4шт.

376787R1

WASHER

RETAINER, slt-hd capscrew

2шт.
