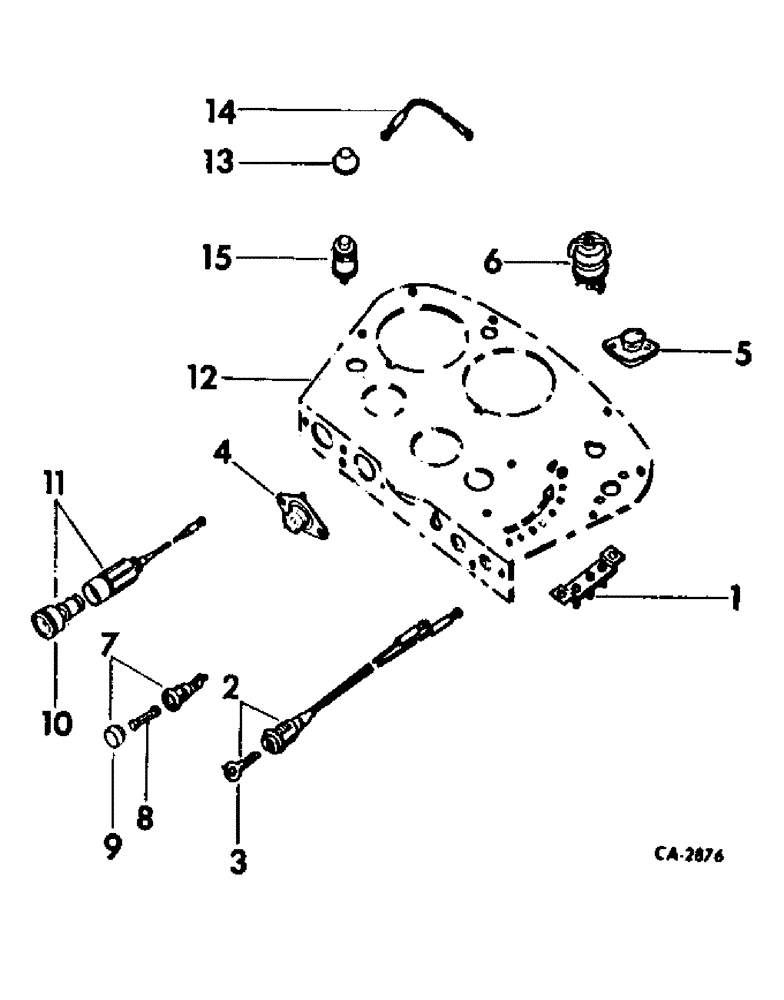

Запчасти Case IH 664 (08-08) - ELECTRICAL, ENGINE CONTROLS AND SWITCHES (06) - ELECTRICAL

1

378336R91

BLOCK

ASSY, junction

1шт.

109084

NUT,1/4"-20, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

2

403562R2

SWITCH

ASSY, ignition key

1шт.

365502R1

NUT

key switch mounting

1шт.

375431R1

LOCK WASHER

key switch mounting

1шт.

3

382458R2

KEY

ignition switch

1шт.

4

397940R93

SWITCH

ASSY, push button

1шт.

120611

NUT,#10 - 32

10-32 C-Z sq-hd mach screw

2шт.

132903

ADAPTER

SCREW, 10-32 x 7/16 C-Z rd-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

5

397940R93

SWITCH

ether solenoid push button

1шт.

120611

NUT,#10 - 32

10-32 C-Z sq

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 C-Z pan-hd slt

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

6

403571R2

SWITCH

lighting

1шт.

7

376852R91

HOUSING

ASSY, fuse

1шт.

8

432644

FUSE,20 Amp, Type SFE

cartridge type SFE 20

1шт.

9

356445R91

KNOB

fuse holder

1шт.

10

378781R91

PACKAGE

UNIT, pop-out

1шт.

11

378338R91

CIGAR LIGHTER

CIGARETTE LIGHTER PARTS ACCESSORY

1шт.

12

NSS

NOT SOLD SEPARAT

PANEL ASSY, instrument, refer to instrument panel and gauges listing, group 11

1шт.

13

371487R1

CYLINDER END CAP

CAP, horn switch dust

1шт.

14

404391R1

CABLE

ASSY, horn switch to junction block

1шт.

15

393209R91

SWITCH

horn, less cap

1шт.
