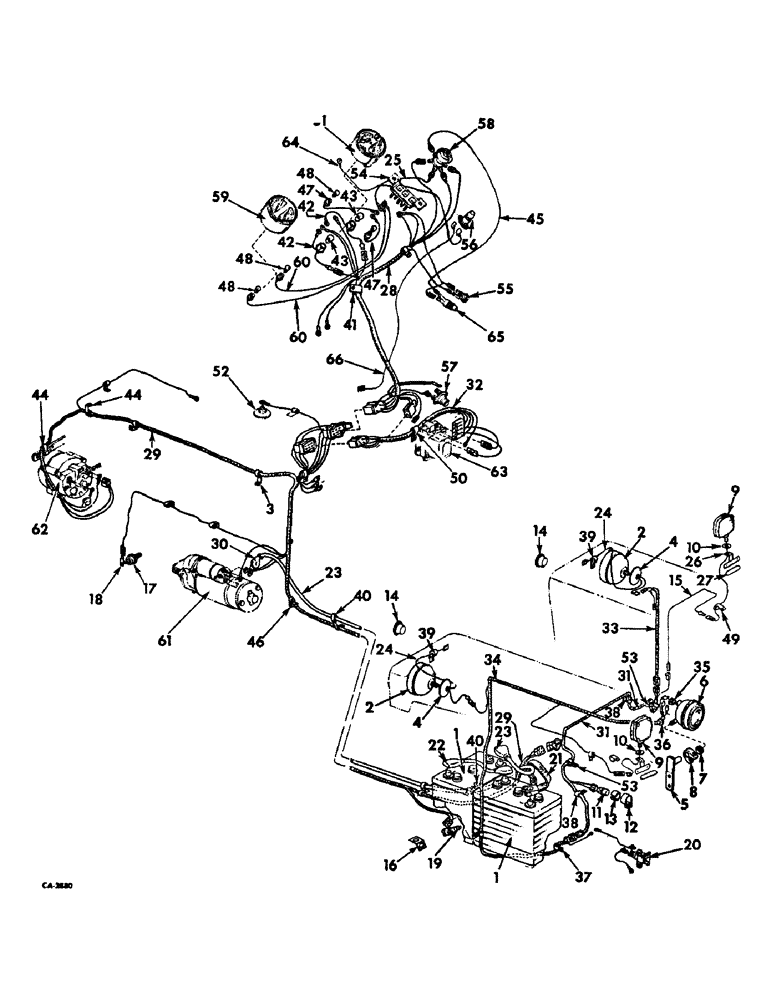

Запчасти Case IH 664 (08-06) - ELECTRICAL, STARTING AND LIGHTING (06) - ELECTRICAL

1

538977R1

BATTERY, 1253X, 6 volt

2шт.

1

538982R1

BATTERY, 1258X, 6 volt heavy duty

2шт.

2

388945R91

HEADLIGHT

LIGHT ASSY, head

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

362123R1

CLIP

main cable harness long

1шт.

109084

NUT,1/4"-20, G5

1шт.

102635

NUT,3/8"-16, G5

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16558R1

WASHER

17/64 x 5/8 x .036

1шт.

4

388947R1

RETAINER

head light

2шт.

5

396740R1

SUPPORT ASSY, rear lamp bracket

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

6

387729R91

LIGHT

ASSY, combination rear & tail, only serviceable items are sealed beam unit, 371461R91 & lamp, 455490

1шт.

7

365503R1

SPACER

combination rear light

1шт.

8

350920R1

CLAMP

combination rear light

1шт.

102637

NUT,1/2"-13, G5

1шт.

Q5035

WASHER

1 x 17/32 x .059

1шт.

9

537328R91

LIGHT

ASSY, sq. warning, only serviceable items are lamp, 9417866, amber lens, 537012R1, red lens, 537011R1, two gaskets, 537010R1 and eight screws, 167048

1шт.

120371

NUT,1/2"-20, G5

2шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

2шт.

10

394262R1

WASHER

GASKET, flashing warning light

2шт.

11

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

12

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

13

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

14

1017970R1

PLUG, plastic tapered

2шт.

15

535866R1

CABLE ASSY, warning light

1шт.

16

534843R1

BRACE ASSY, neutral starting switch bracket

1шт.

17

392249R92

SWITCH

engine oil pressure

1шт.

18

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch straight

1шт.

19

532682R1

SWITCH

ASSY, neutral starting

1шт.

20

NSS

NOT SOLD SEPARAT

SOCKET ASSY, electric breakaway connector, refer to electric breakaway connector socket listing, this group

1шт.

21

370389R91

CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

22

396275R2

CABLE

ASSY, Serial Range: battery-battery

1шт.

23

395953R1

CABLE

ASSY, battery to solenoid switch

1шт.

24

405209R1

CABLE

ASSY, head, Serial Range: lamp-ground

2шт.

25

405222R1

CABLE

ASSY, lighting switch to junction block

1шт.

26

535863R1

BRACKET ASSY, reflector mtg.

2шт.

27

533092R1

REFLECTOR

2шт.

163162

SCREW,Self Tap, Cross Pan Hd, #8 - 18 x 1/2"

No. 8-18 x 1/2 C-Z cr-rec

4шт.

28

405285R1

HARNESS

ASSY, instrument panel

1шт.

29

405297R1

HARNESS

ASSY, main

1шт.

30

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

31

405261R3

HARNESS

ASSY, fender RH

1шт.

32

405266R1

HARNESS

ASSY, voltage regulator

1шт.

33

395941R1

CABLE ASSY, RH fender

1шт.

34

406695R1

HARNESS ASSY, fender LH

1шт.

35

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear lamp

1шт.

36

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

combination rear light cable

2шт.

37

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, fender harness

1шт.

38

370383R1

CLIP

LH & RH fender cable

2шт.

39

362121R1

CLIP

head light and floodlight cables

2шт.

109084

NUT,1/4"-20, G5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

40

370383R1

CLIP

battery to solenoid switch cable

1шт.

41

384557R1

CLIP

panel cable harness

1шт.

42

376856R91

SOCKET

ASSY, oil and amp Tellite

2шт.

43

9412348

BULB,C2B, #257, 14V

LIGHT, No. 257 12 volt, oil & amp Tellite flasher

2шт.

44

363660R1

CLIP

main cable harness

2шт.

45

404419R1

CABLE ASSY, fuse to light switch

1шт.

46

362666R1

CLIP

main cable harness & battery cable

1шт.

47

376853R91

SOCKET

ASSY, instrument light

2шт.

48

9417863

BULB,C2F, #1895, 14V

LIGHT, No. 1895 12 volt

4шт.

49

358986R1

CABLE CLIP

CLIP, warning light cable

2шт.

50

370383R1

CLIP

voltage regulator harness

1шт.

51

NSS

NOT SOLD SEPARAT

CLUSTER ASSY, gauge, refer to instrument panel and gauges listing, group 11

1шт.

52

NSS

NOT SOLD SEPARAT

SENDING UNIT ASSY, electric fuel gauge, refer to fuel tank, supports and piping listing, group 12

1шт.

53

358986R1

CABLE CLIP

CLIP, fender harness

2шт.

54

NSS

NOT SOLD SEPARAT

BLOCK ASSY, junction, refer to engine controls and switches listing, this group

1шт.

55

NSS

NOT SOLD SEPARAT

SWITCH ASSY, key, refer to engine controls and switches listing, this group

1шт.

56

NSS

NOT SOLD SEPARAT

SWITCH ASSY, ether starting, refer to engine controls and switches listing, this group

1шт.

57

NSS

NOT SOLD SEPARAT

SWITCH ASSY PUSH BUTTON, refer to engine controls and switches listing, this group

1шт.

58

403571R2

SWITCH

lighting

1шт.

59

NSS

NOT SOLD SEPARAT

SPEEDOMETER, tachometer assy, refer to instrument panel and gauges listing, group 11

1шт.

60

363838R91

CABLE

SOCKET ASSY, instrument light

2шт.

61

NSS

NOT SOLD SEPARAT

CRANKING MOTOR, refer to cranking motor listing, this group

1шт.

62

NSS

NOT SOLD SEPARAT

ALTERNATOR, generator, refer to alternator, generator listing, this group

1шт.

63

NSS

NOT SOLD SEPARAT

VOLTAGE REGULATOR, refer to alternator, generator and connections listing, this group

1шт.

64

405225R1

CABLE ASSY, key switch to ether push button

1шт.

65

376852R91

HOUSING

ASSY, fuse

1шт.

66

405224R1

CABLE ASSY, conn. to ether push button

1шт.

403515R1

CONNECTOR, multiple

1шт.
