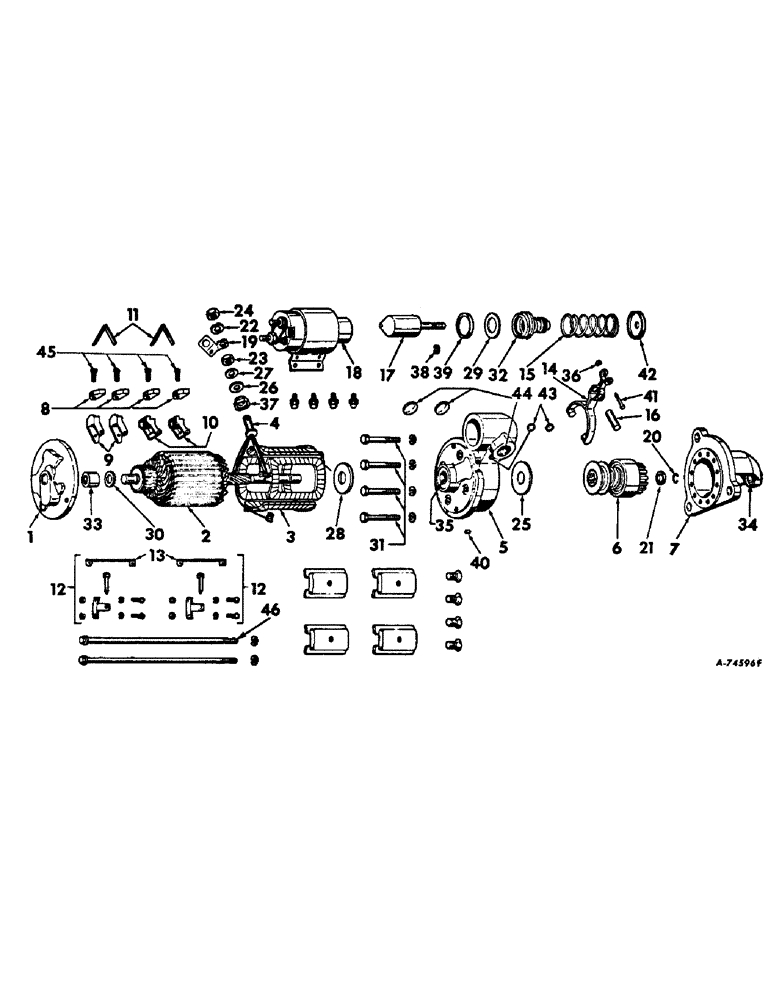

Запчасти Case IH 664 (08-04) - ELECTRICAL, CRANKING MOTOR, DELCO REMY (06) - ELECTRICAL

1113198

X

MOTOR ASSY, cranking, 396574R91, 12 volt

1шт.

1

1969018

FRAME, commutator end

1шт.

1916439

WICK

commutator end

1шт.

2

1956903

ARMATURE

1шт.

3

1945612

COIL ASSY.

COIL ASSY, field, 4 coils

1шт.

1914873

INSULATOR

field coil

2шт.

4

1933879

TERMINAL CONNECTOR

terminal

1шт.

5

1942241

HOUSING

ASSY, lever, composed of (1) bushing 1933999, (2) plug 9411375, (1) plug 274590, (1) plug 9419572, (1) oil seal 1867150, (1) wick 1947350

1шт.

6

1965788

DRIVE ASSY.

DRIVE, clutch motor

1шт.

7

1965775

HOUSING, drive

1шт.

1916439

WICK

drive end

1шт.

8

1906987

BRUSH

4шт.

9

1940477

HOLDER

brush ground

2шт.

10

1950546

HOLDER

brush insulated

2шт.

11

1945620

SPRING

brush

4шт.

12

1945923

PACKAGE

brush support

2шт.

13

1930694

CABLE

LEAD, ground

2шт.

14

1942245

LEVER

ASSY, shift

1шт.

15

1948521

SPRING

lever

1шт.

16

1942255

STUD

SHAFT, lever

1шт.

17

1942250

PLUNGER

ASSY

1шт.

18

1115510

SOLENOID SWITCH

SWITCH ASSY, solenoid, optional w/65479C1

1шт.

18

65479C1

SOLENOID

SWITCH ASSY, solenoid, optional w/1115510

1шт.

601924C1

BOLT,3/8"

SCREW, 3/8-16 x 1 twelve pt-hd

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

110730

LOCK WASHER

WASHER, 3/8 light lock

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

19

1942249

CONNECTOR, ELEC

CONNECTOR, switch

1шт.

20

1928022

SNAP RING

RING, pinion stop retainer

1шт.

21

1928021

COLLAR

pinion stop

1шт.

22

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

23

805258

NUT

terminal stud, 5/32 in. thick

1шт.

24

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

25

NLS

NO LONGER SERVICED

brake, between lever housing & motor drive

1шт.

26

1950029

WASHER

insulating terminal stud

1шт.

27

805790

WASHER

terminal stud plain

1шт.

28

1942283

PIN

space, between lever housing & armature

1шт.

29

1942259

WASHER

retainer spring

1шт.

30

1914842

WASHER

space, commutator end

1шт.

31

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

drive housing attaching

4шт.

32

1942257

BOOT

1шт.

33

1872678

BUSHING

commutator end

1шт.

34

1955994

BUSHING

drive end

1шт.

35

1933999

BUSHING

lever housing

1шт.

36

1938376

RING, SNAP

RING, lever attaching pin snap

1шт.

37

1931783

INSULATOR

BUSHING, insulating terminal stud

1шт.

38

9415235

RING, SNAP

RING, spring retainer snap

1шт.

39

1942256

RETAINER

spring, 1-13/64 in. hole

1шт.

40

809593

PIN

drive housing dowel

1шт.

41

1942253

PIN

lever attaching

1шт.

42

1942282

PIN

RETAINER, spring, 13/32 in. hole

1шт.

43

9419572

PLUG

lever housing expansion

2шт.

44

9411375

PLUG

lever housing expansion

2шт.

45

1959514

SCREW

brush attaching

4шт.

46

809763

BOLT

thru

2шт.
