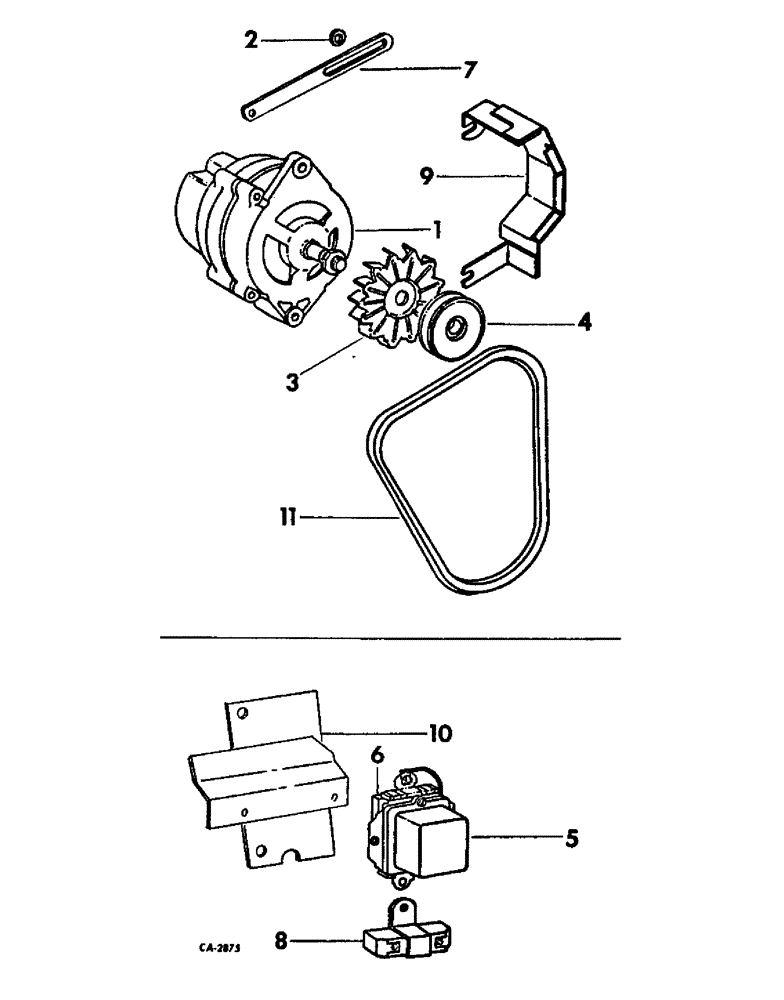

Запчасти Case IH 664 (08-02) - ELECTRICAL, ALTERNATOR GENERATOR AND CONNECTIONS (06) - ELECTRICAL

1

1100805

GENERATOR

ALTERNATOR, generator, 32 ampere

1шт.

1

1100791

GENERATOR

ALTERNATOR, generator, 55 ampere

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

225-14112

NUT,#12-24

NUT, 12-24 hex machine screw

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 PHC hex lock

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd cap

1шт.

121744

ANGLE

WASHER - lock, #12

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

2

280185R1

SPACER

SPACER, alternator mtg brace

2шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

1966990

FAN

FAN, alternator, generator, Delco Remy

1шт.

4

1961261

PULLEY

PULLEY, alternator, generator, Delco Remy

1шт.

5

65302C1

REGULATOR

REGULATOR, voltage, optional w/1119515

1шт.

5

1119515

REGULATOR

REGULATOR, voltage, optional w/65302C1

1шт.

5

1119515GV

VOLTAGE REGULATOR

REGULATOR, voltage, optional w/65302C1

1шт.

109084

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

65304C1

PACKAGE

BRACKET ASSY, shock mount, optional w/1962629

1шт.

6

1962629

BRACKET

BRACKET ASSY, shock mount, optional w/65304C1

1шт.

7

396359R1

SPARE PART

STRIP, alternator mounting brace

1шт.

8

1962014

RESISTOR

RESISTANCE UNIT

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

396365R2

PROTECTOR

SHIELD ASSY, alternator, generator fan & pulley

1шт.

10

398257R1

SPARE PART BRACKET ASSY, voltage regulator mounting

1шт.

11

401128R2

V-BELT,0.50" W x 57.75" L

Alternator, generator & water pump

1шт.
