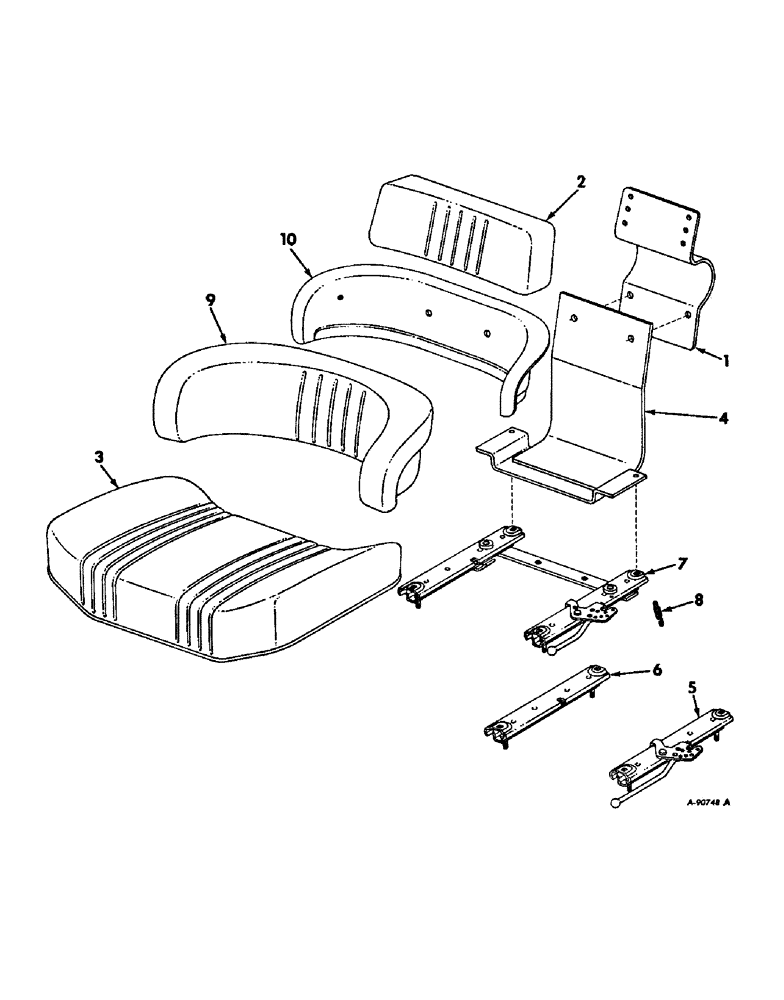

Запчасти Case IH 664 (13-09) - SUPERSTRUCTURE, DELUXE SEAT (05) - SUPERSTRUCTURE

403361R92

SEAT ASSY, deluxe

1шт.

1

405068R1

SUPPORT, upper back

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19286R1

SCREW, 5/16-18 x 3/4 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

623066R1

SCREW, 3/8-16 x 1 cad hex-hd cap

2шт.

2

405067R2

CUSHION

ASSY, upper back

1шт.

161895

SCREW,Cross Pan Hd, #10 - 12 x 1/2"

10.12 x 1/2 C-Z cr-rec pan hd tap

4шт.

3

405060R2

CUSHION

ASSY, seat

1шт.

4

405061R1

FRAME ASSY, seat

1шт.

5

405062R1

ADJUSTER

W/HANDLE, seat LH

1шт.

6

405063R1

ADJUSTER

ASSY, seat RH

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19286R1

SCREW, 5/16-18 x 3/4 cap hex-hd cap

4шт.

7

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

8

398176R1

SPRING

latch

1шт.

9

405065R2

CUSHION

ASSY, back

1шт.

10

405066R1

PLATE, outer back

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

155348

YOKE

SCREW, 1/4-20 x 3/4 C-Z cr-rec-rd hd mach

2шт.
