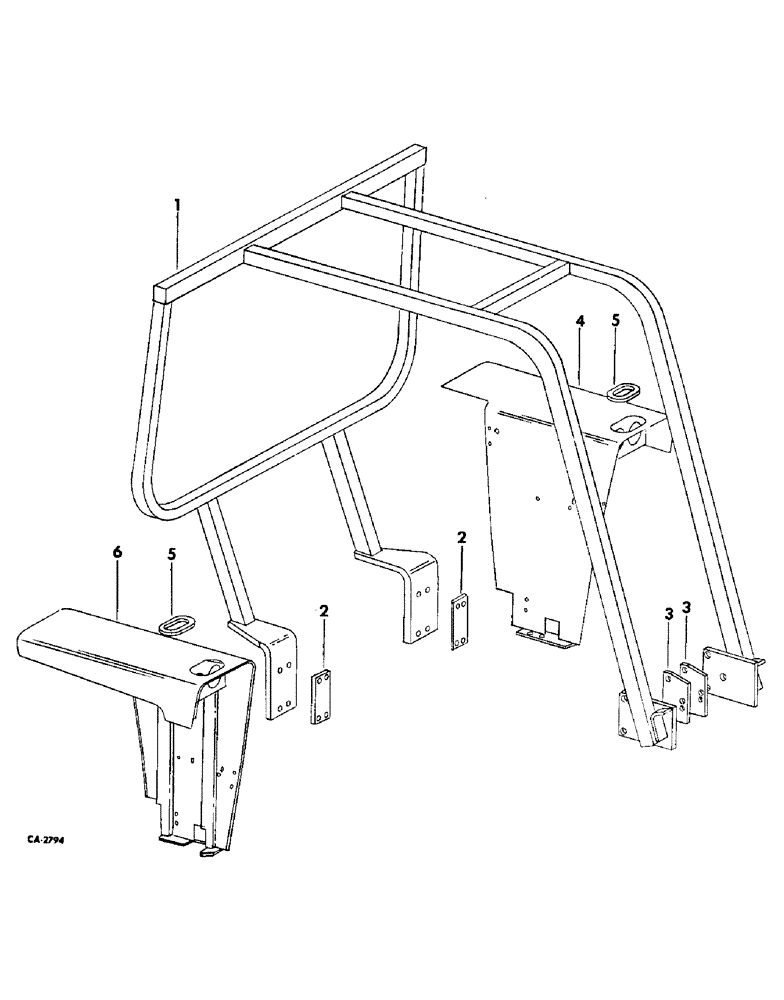

Запчасти Case IH 664 (13-07) - SUPERSTRUCTURE, PROTECTIVE FRAME AND REAR FENDERS (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
PROTECTIVE FRAME, components not serviced separately, order attachment, 539981R91
1шт.
21434R1
NUT,5/8"-11, G8
5/8-11 C-Z hex
4шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
1/2-13 x 1 C-Z hex-hd cap
2шт.
20906R1
BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8
SCREW, 5/8-11 x 3-1/4 C-Z hex-hd cap
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
2
535922R1
BLOCK, frame mounting
2шт.
21434R1
NUT,5/8"-11, G8
5/8-11 C-Z mounting
2шт.
380575R2
SCREW,Hex, 5/8" - 11 x 8.80", Gr 8
5/8-11 x 8-7/8 hex-hd cap
8шт.
3
528273R1
PLATE, spacer
2шт.
21449R1
BOLT,Hex, 3/4" - 10 x 4", Gr 8
SCREW, 3/4-10 x 4 C-Z hex-hd cap
6шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
6шт.
4
65404C1
FENDER ASSY, LH
1шт.
120376
NUT,5/16"-18, G5
2шт.
382238R1
SCREW, 5/16-18 x 1/2 washer-hd cap
2шт.
180083
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5
SCREW, 5/16-18 x 1-1/2 C-Z hex-hd cap
2шт.
180174
BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5
SCREW, 1/2-13 x 1-1/8 C-Z hex-hd cap
2шт.
120396
WASHER
17/32 x 1-1/16 x .074
2шт.
5
388940R1
GRIP
fender handle
2шт.
6
65405C1
FENDER ASSY, RH
1шт.
120376
NUT,5/16"-18, G5
2шт.
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
2шт.
180083
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5
SCREW, 5/16-18 x 1-1/2 C-Z hex-hd cap
2шт.
180174
BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5
SCREW, 1/2-13 x 1-1/8 C-Z hex-hd cap
2шт.
NLS
NO LONGER SERVICED
17/32 x 1-1/16 x .074
2шт.
537339R1
SAFETY BELT
SAFETY BELT, 2"
1шт.
539617R91
ATTACHMENT, seat belt, 3 in.
1шт.
702248C3
BELT
SAFETY BELT
1шт.
344096C3
BOLT
BOLT, seat belt anchor
2шт.
539598R1
BRACKET, seat belt anchor
2шт.
24513R1
NUT,7/16"-20, G8
7/16-20 ZN hex type 8
2шт.
179820
BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5
4шт.
384358R1
WASHER, 3/8 x 7/8 x .093
2шт.
Выбрано товаров: 34
