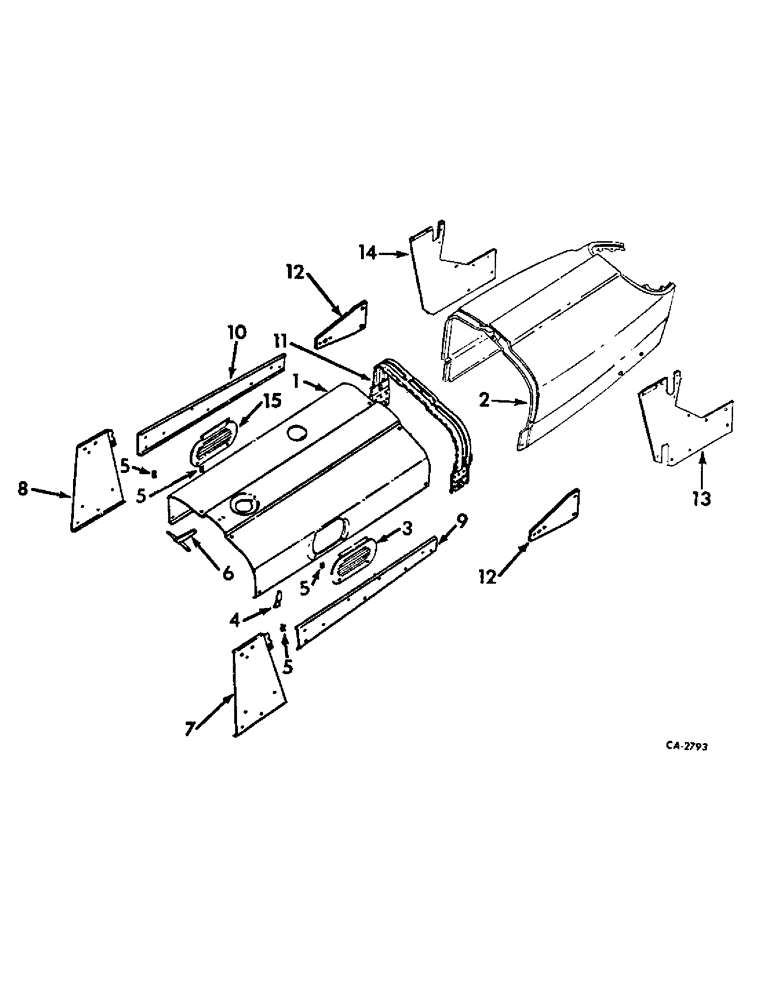

Запчасти Case IH 664 (13-05) - SUPERSTRUCTURE, HOOD, PANELS AND SUPPORTS (05) - SUPERSTRUCTURE

1

400246R1

HOOD ASSY, front

1шт.

1

402733R11

HOOD ASSY, front, tractors w/underslung muffler

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

4шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, hex-hd cap w/washer

8шт.

2

401980R1

HOUSING, instrument panel

1шт.

400928R1

NUT

u-type speed

12шт.

446904

SCREW, 5/16-18 x 5/8 C-Z hex-hd mach

4шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga

4шт.

3

378627R1

COVER

LH front hood access

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex washer hd bevel cap

2шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood access cover

2шт.

4

369173R1

SPRING

hood panel

4шт.

110633

NUT,#10-24

4шт.

5

376787R1

WASHER

RETAINER, front hood access cover

2шт.

6

369180R1

PRODUCT GRAPHIC

ORNAMENT, hood

1шт.

6

369180R1GV

DECAL

Value, Ornament, Hood

1шт.

423324

SCREW,Hex L/Wshr Hd, #10-24 x 7/16"

10-24 x 1/16 hex-hd mach w/ext-tooth lock washer

2шт.

7

400248R2

PANEL, radiator support LH

1шт.

7

539333R1

PANEL, radiator support LH, tractors w/front mounted lights

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex washer hd bevel cap

2шт.

8

400249R2

PANEL, radiator support RH

1шт.

8

539334R1

PANEL, radiator support RH, tractors w/front mounted lights

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex washer hd bevel cap

3шт.

9

400250R3

PANEL, frt hood side LH

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex washer hd bevel cap

3шт.

10

400251R3

PANEL, frt hood side RH

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex washer hd bevel cap

3шт.

11

395280R92

REINFORCEMENT

ASSY, rear hood front

1шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 hex-hd cap

2шт.

12

396268R3

BRACKET, reinforcement rear hood

2шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

359105R1

SPACER,3/8" X-Strng Pipe x 1/2"

bracket reinforcement rear hood

2шт.

13

403318R1

PANEL ASSY, rear hood lower LH

1шт.

21592R1

SCREW, 5/16-18 x 1/2 cr-rec-truss-hd mach

5шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

14

403320R1

PANEL ASSY.

PANEL ASSY, rear hood lower RH

1шт.

21592R1

SCREW, 5/16-18 x 1/2 cr-rec-truss-hd mach

5шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

15

378627R1

COVER

RH front hood access

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex washer hd bevel cap

2шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood access cover

2шт.
