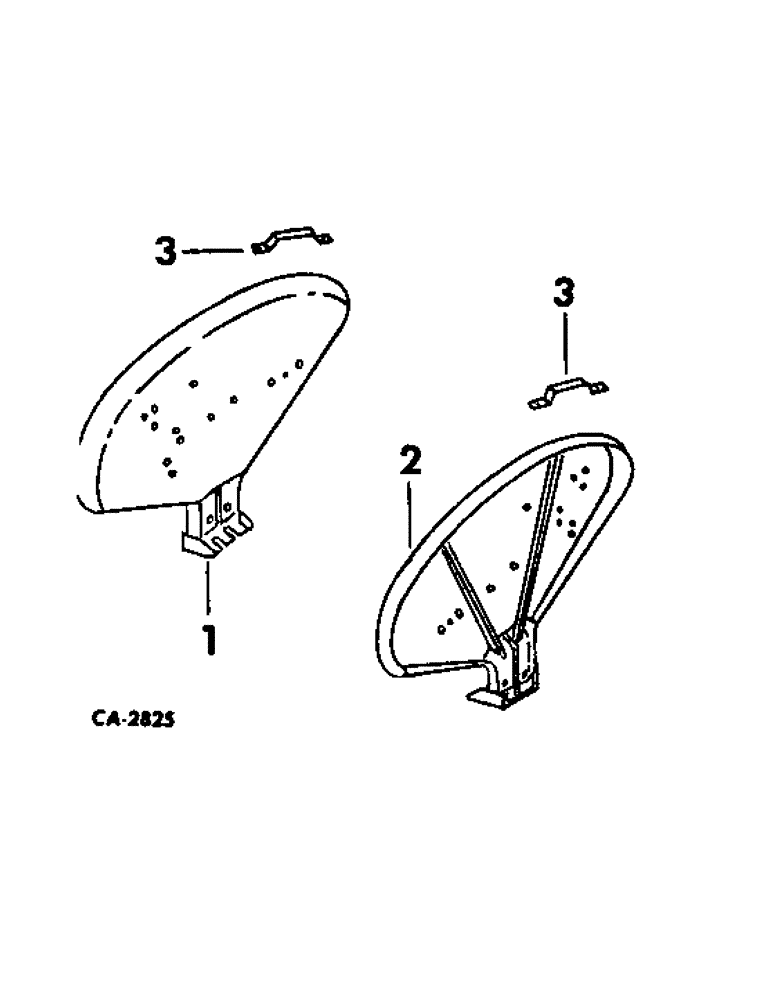

Запчасти Case IH 664 (13-04) - SUPERSTRUCTURE, CROWN FENDERS (05) - SUPERSTRUCTURE

1

536565R1

FENDER ASSY, LH

1шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 C-Z hex-hd cap

4шт.

120396

WASHER

17/32 x 1-1/16 x .074

4шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

2шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095, use w/battery hold-down angles

3шт.

2

536566R1

FENDER ASSY, RH

1шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 C-Z hex-hd cap

4шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .074

4шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

2шт.

3

377814R1

HANDLE, fender

2шт.

102635

NUT,3/8"-16, G5

4шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 hex-hd cap

4шт.

446211

WASHER, 7/16 x 7/8 x .065

4шт.
