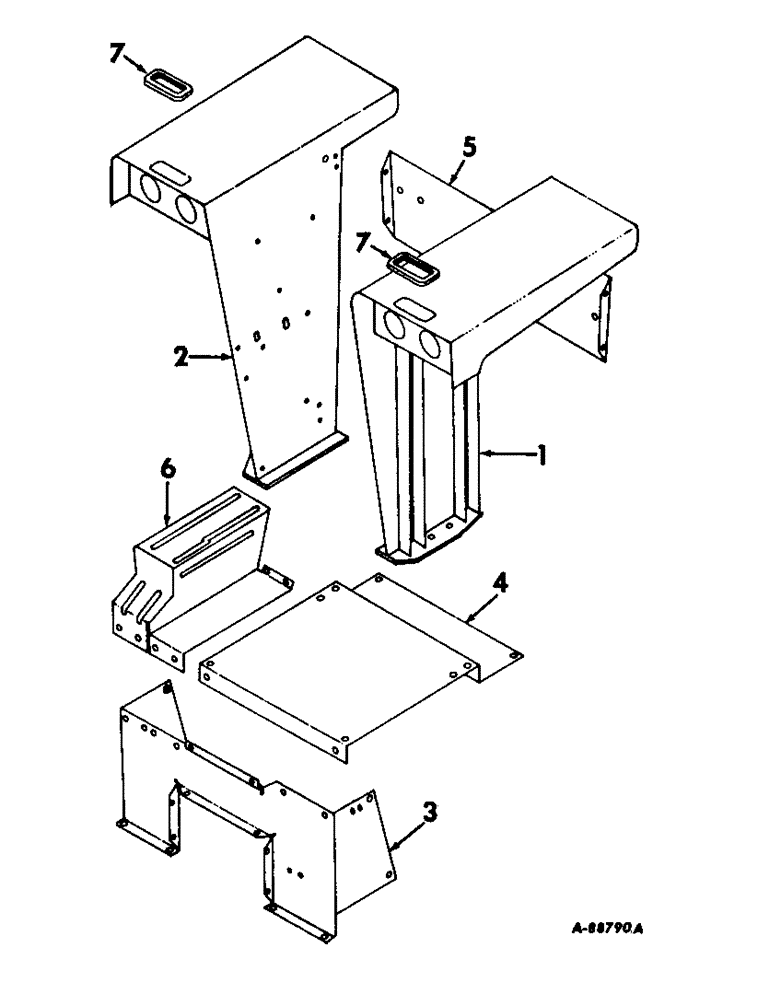

Запчасти Case IH 664 (13-03) - SUPERSTRUCTURE, FENDERS, SUPPORTS AND CONSOLE (05) - SUPERSTRUCTURE

1

539288R1

FENDER ASSY, RH

1шт.

120376

NUT,5/16"-18, G5

2шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 hex-hd cap

2шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 C-Z hex-hd cap

4шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

120396

WASHER

17/32 x 1-1/16 x .074

4шт.

2

539287R1

FENDER ASSY, LH

1шт.

120376

NUT,5/16"-18, G5

2шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 C-Z hex-hd cap

2шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 C-Z hex-hd cap

4шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .074

4шт.

3

396236R2

SUPPORT ASSY, fender & seat

1шт.

4

396238R1

SECTION, seat support

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

5

396239R1

SHEET ASSY, seat support back

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

6шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

6

396242R1

CONSOLE ASSY, hyd control

1шт.

145587

TUBE

SCREW, 5/16-18 x 1/2 C-Z tapping hex

1шт.

7

388940R1

GRIP

fender handle

2шт.
