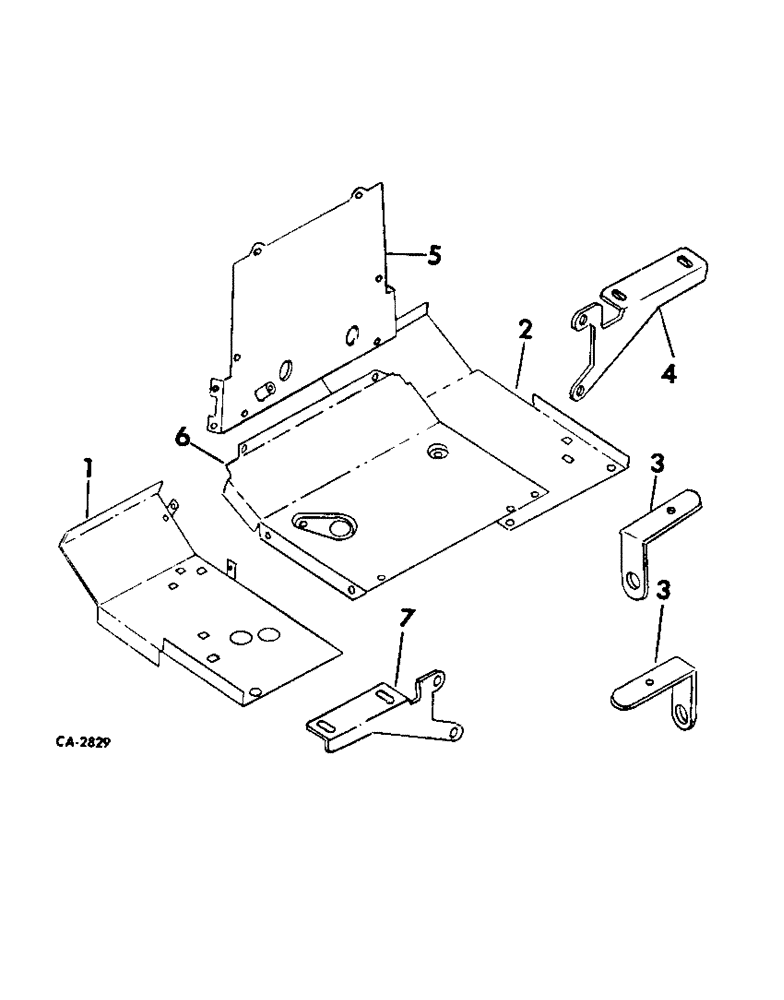

Запчасти Case IH 664 (13-02) - SUPERSTRUCTURE, PLATFORM AND SUPPORTS (05) - SUPERSTRUCTURE

1

403324R11

PLATFORM ASSY, LH

1шт.

14993R1

BOLT, 1/4 x 3/4 sq-nk crg

3шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

3шт.

103084

NUT, 1/4-20 hex

3шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex washer-hd bevel cap

1шт.

2

403328R21

PLATFORM ASSY, RH

1шт.

14993R1

BOLT, 1/4 x 3/4 sq-nk crg

3шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

2шт.

109084

NUT,1/4"-20, G5

3шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

3

398748R2

SUPPORT, platform rear

2шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-3/8 hex-hd cap

1шт.

4

399519R2

SUPPORT, platform front RH

1шт.

5

530757R2

PANEL ASSY, platform FRT, also order two plugs, 192280

1шт.

192280

HOLE PLUG BUTTON,1 1/4"

PLUG, 1-1/4 button

2шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

120583

SCREW,Sl Rnd Hd, 1/4" - 20 x 5/8"

1/4-20 x 5/8 C-Z slt-rd-hd mach

2шт.

6

538586R1

PLATFORM W/PRODUCT GRAPHIC, center

1шт.

180163

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

SCREW, 7/16-14 x 3-3/4 znd hex-hd cap

2шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

516694R1

SPACER

platform

2шт.

7

399686R1

SUPPORT, platform front LH

1шт.

397235R1

TREAD, non-skid

6шт.
