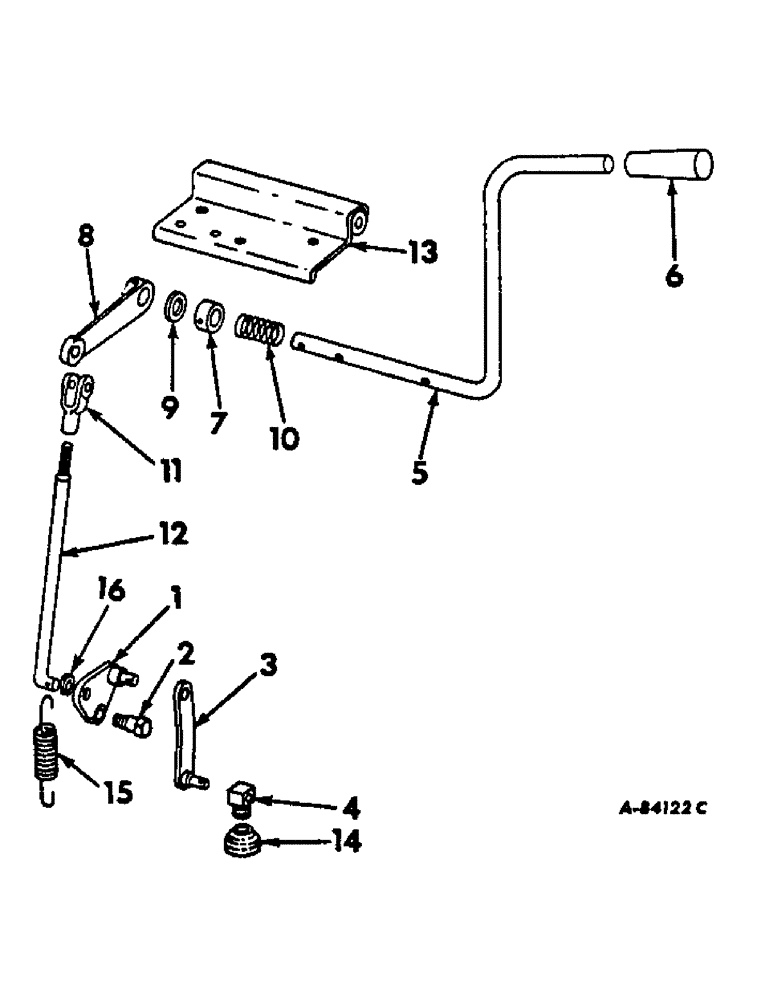

Запчасти Case IH 664 (07-24) - DRIVE TRAIN, INDEPENDENT POWER TAKE-OFF LEVER AND CONNECTIONS (04) - Drive Train

1

391035R91

LEVER

ASSY, over-center

1шт.

2

391047R1

BOLT,Shldr, Hex, 3/8" - 16 x 1.18"

BOLT, Over-center lever pivot

1шт.

3

391038R11

LINK

ASSY, valve stem actuating

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

2шт.

4

384194R2

NUT,3/8" - 16

valve adjustment

1шт.

5

396596R3

ROD

independent PTO control

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga

1шт.

6

387885R1

KNOB

independent PTO control handle

1шт.

7

391041R1

SPACER

independent PTO control handle

1шт.

8

397098R1

ARM

independent PTO actuating

1шт.

24662R1

PIN, 7/32 x 1 coiled spring

1шт.

24811R1

PIN,7/32" x 1 1/4", Coiled

1шт.

9

391045R1

SEALING WASHER

WASHER, friction

1шт.

10

391044R1

SPRING

friction disc

1шт.

11

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 x 2-1/2 adj rod end

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1-3/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

12

397099R2

ROD

independent PTO actuating

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

13

389018R11

PLATE

ASSY, rear light & independent PTO handle support

1шт.

14

393071R1

BOOT

independent PTO dust

1шт.

15

532158R1

SPRING

independent PTO handle

1шт.

16

SA2344

SPACER,3/8" Pipe x 7/16"

independent PTO handle

1шт.

533484R91

ASSEMBLY

PACKAGE, IPTO linkage spring, consists of spring, 532158R1 and spacer, SA2344

1шт.
