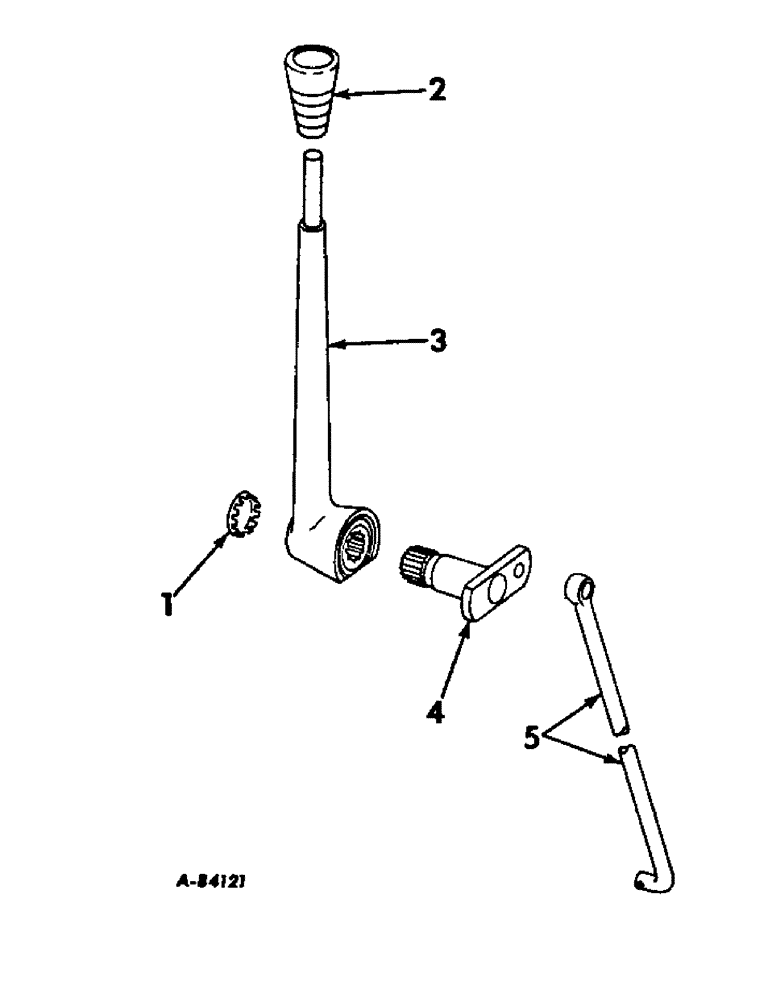

Запчасти Case IH 664 (07-23) - DRIVE TRAIN, FORWARD AND REVERSE DRIVE CONTROLS (04) - Drive Train

1

432344

HOLE PLUG BUTTON,1 3/16"

PLUG, 1-3/4 C-Z button

1шт.

2

388180R1

GRIP

KNOB, control handle

1шт.

3

389162R1

HANDLE

control

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

Q398

WASHER

11/32 x 7/8 x 16 ga

1шт.

4

396317R1

LEVER ASSY, control handle

1шт.

5

396318R1

ROD ASSY, control

1шт.

60530H

CLEVIS PIN,3/8" x 1"

PIN, 3/8 x 1 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2752899R1

PRODUCT GRAPHIC

1шт.
