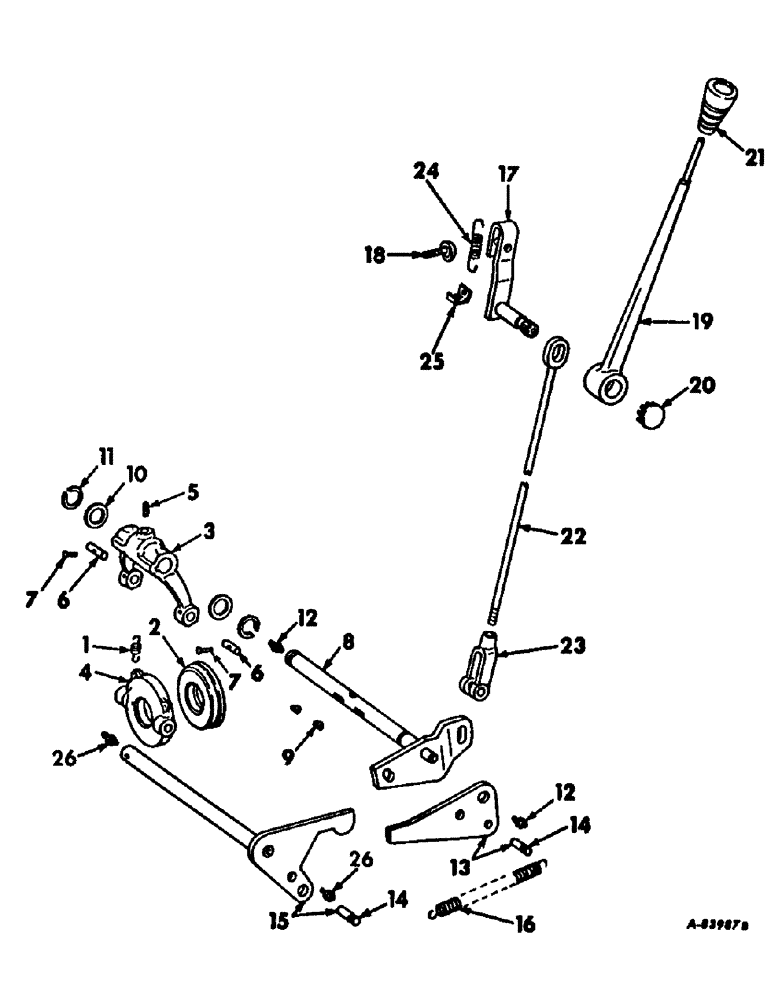

Запчасти Case IH 664 (07-22) - DRIVE TRAIN, TORQUE AMPLIFIER CONTROLS (04) - Drive Train

1

359901R1

SPRING

TA clutch release sleeve

2шт.

2

362028R91

BALL BEARING

BEARING, TA clutch release

1шт.

3

360653R2

CRADLE

FORK, torque amplifier

1шт.

4

359900R1

RING

SLEEVE, torque amplifier clutch release

1шт.

5

359906R1

SCREW

torque amplifier clutch release fork lock

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

6

375559R1

PIN

torque amplifier clutch release fork pivot

2шт.

7

12810R1

RIVET, 1/8 x 1-1/32 rd-hd solid

2шт.

8

389157R91

SHAFT ASSY, torque amplifier clutch release

1шт.

9

103906

WOODRUFF KEY

KEY, 5/32 x 3/4 Woodruff No. 8

2шт.

10

359908R1

THRUST WASHER

torque amplifier clutch release shaft

2шт.

11

359909R1

RING

RETAINER, torque amplifier clutch release shaft

2шт.

12

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 45 deg lub

2шт.

13

389159R21

LEVER ASSY, torque amplifier clutch release shaft outer

1шт.

NLS

NO LONGER SERVICED

1шт.

102635

NUT,3/8"-16, G5

1шт.

50793H

WASHER

13/32 x 7/8 x 11 ga

2шт.

14

388682R1

PIN

spring anchor

2шт.

15

388680R11

SHAFT

ASSY, clutch release

1шт.

16

360677R1

SPRING

engine clutch lever to torque amplifier clutch lever

1шт.

17

396255R1

SHAFT

ASSY, torque amplifier handle pivot

1шт.

396257R1

PIN, 3/8 x 1-7/8 headed pin

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

18

393164R91

BUMPER

torque amplifier arm

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

19

389162R1

HANDLE

torque amplifier

1шт.

179814

SPACER

1шт.

Q398

WASHER

11/32 x 7/8 x .083

1шт.

20

432344

HOLE PLUG BUTTON,1 3/16"

PLUG, 1-3/16 C-Z button, torque amplifier handle

1шт.

21

388180R2

GRIP

KNOB, torque amplifier handle

1шт.

22

396308R1

ROD ASSY, torque amplifier lever actuating

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

23

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8 adj rod end

1шт.

140549

PIN

3/8 x 1-3/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

24

370038R1

SPRING

over center

1шт.

25

396309R1

CLIP, spring anchor

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

26

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8-27 PTF str

2шт.

2752916R1

PRODUCT GRAPHIC

1шт.
