Запчасти Case IH 664 (07-15) - DRIVE TRAIN, FORWARD AND REVERSE DRIVE (04) - Drive Train

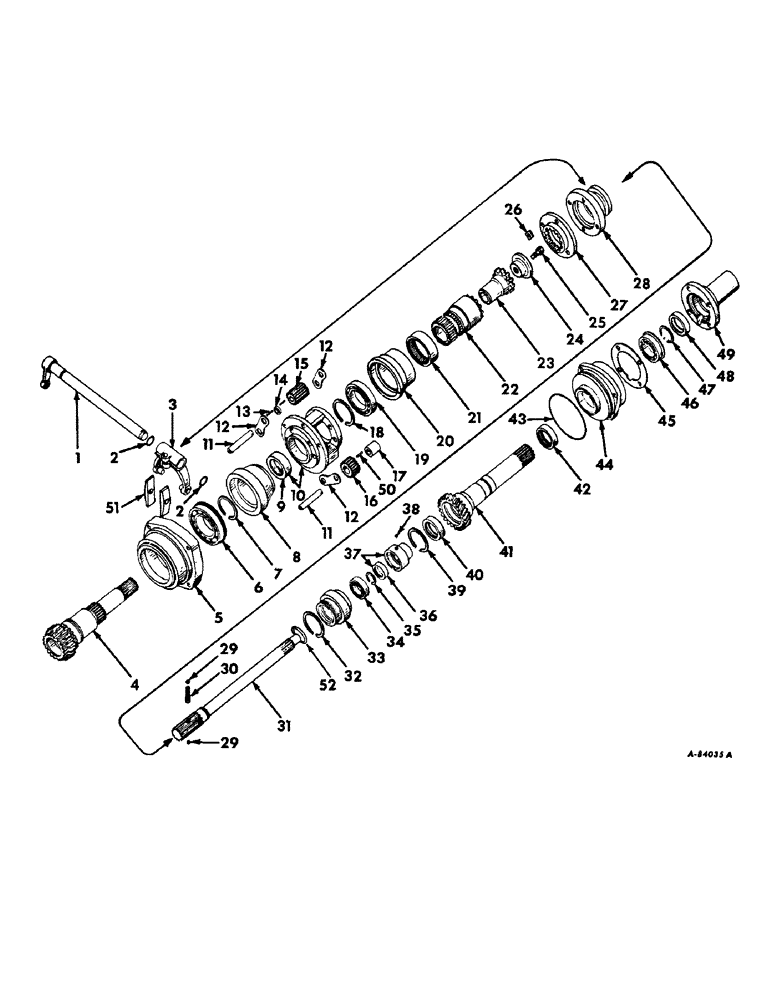

Схема запчастей Case IH 664 - (07-15) - DRIVE TRAIN, FORWARD AND REVERSE DRIVE (04) - Drive Train
45
15
42
31
51
50
24
32
11
7
52
37
10
44
16
38
17
47
40
14
34
12
2
39
27
9
3
48
1
18
11
2
12
46
43
26
36
6
25
29
19
8
22
30
4
33
49
13
28
23
12
41
29
5
20
21
35

Артикул

Название

Примечание

Количество

1

391291R91

SHAFT ASSY, selector lever

1шт.

41116D

KEY

selector shaft

1шт.

2

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32, selector shaft lever

2шт.

3

318720R91

FORK TEDDER

FORK ASSY, selector

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

4

402474R1

SHAFT, transmission drive, 20 & 27 T

1шт.

5

389380R11

CAGE ASSY, transmission drive shaft brg

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

6

389397R91

PUMP

BEARING, transmission drive shaft ball

1шт.

7

357194R1

RING

transmission drive shaft brg snap

1шт.

8

389377R1

SPACER, planet carrier

1шт.

9

370486R91

NEEDLE BEARING

transmission drive shaft needle

1шт.

10

370485R11

CARRIER ASSY, planet

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

11

370487R1

SHAFT, planet gear

6шт.

12

370488R1

PLATE, planet gear thrust

6шт.

13

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

14

359888R1

SPACER

planet gear roller bearing

3шт.

15

370491R1

GEAR

planet, 18 T

3шт.

16

370490R1

GEAR, planet, 24 T

3шт.

17

370489R1

SPACER, planet gear

3шт.

18

357035R1

RING

reverse drive sun gear brg snap

1шт.

19

ST626A

BALL BEARING,2.5585" ID x 90" OD x 0.5118"

BEARING, reverse drive sun gear front ball

1шт.

20

397097R1

CAGE W/PIN, 17172R1, reverse sun gear bearing

1шт.

17172R1

LOCK PIN,1/8" x 7/16", Slotted

PIN, 1/8" x 7/16", Slotted

1шт.

21

380078R91

NEEDLE BEARING

reverse sun gear needle

1шт.

22

370497R2

PINION

GEAR, reverse drive sun

1шт.

23

370500R2

COUPLING

transmission drive spline

1шт.

24

370752R1

RETAINER

transmission drive shaft

1шт.

25

371755R2

BOLT (SPREADER),Hex, 3/8" - 24 x 1"

BOLT, transmission drive shaft retainer

1шт.

26

59473DA

LOCK

spline shifter coupling collar bolt

4шт.

27

341721R1

COUPLING

spline shifter

1шт.

28

399073R91

COLLAR, w/pin, 609727C1, spline shifter coupling

1шт.

609727C1

PIN, shifter coupling collar dowel

1шт.

181361

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 hex-hd cap

4шт.

29

17010R1

BALL,5/16" Dia

Forward & reverse poppet 5/16" Dia

2шт.

30

370505R2

VALVE SPRING

SPRING, forward & reverse poppet

1шт.

31

370503R3

SHAFT, clutch

1шт.

32

370856R1

RING, SNAP

RING, clutch shaft bearing cage snap

1шт.

33

378689R1

CAGE, clutch shaft bearing

1шт.

34

451590R91

BALL BEARING,30mm ID x 55mm OD x 13mm W

clutch shaft ball

1шт.

35

370504R1

RING

clutch shaft snap

1шт.

36

370510R91

OIL SEAL

SEAL, clutch shaft carrier oil

1шт.

37

378690R1

CARRIER

clutch shaft oil seal

1шт.

38

17006R1

BALL

3/16 chr stl

1шт.

39

378691R1

RING

clutch shaft oil seal carrier snap

1шт.

40

378693R91

OIL SEAL

SEAL, independent PTO drive shaft

1шт.

41

65055C1

SHAFT, IPTO drive, 22 T

1шт.

42

359960R91

NEEDLE BEARING,Needle, 52.37mm ID x 64.31mm OD x 25.4mm W

IPTO drive shaft needle

1шт.

43

252556R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

5-1/4 x 5-1/2 x 1/8, independent PTO drive shaft bearing cage

1шт.

44

389395R1

CAGE, independent PTO drive shaft brg screw, 3/8-16 x 1 hex-hd cap

4шт.

45

370518R1

GASKET

independent PTO drive shaft bearing retainer

1шт.

46

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING, independent PTO drive shaft ball

1шт.

47

359894R1

RING, SNAP

RING, independent PTO drive shaft bearing snap

1шт.

48

384386R91

OIL SEAL,42.7mm ID x 63.7mm OD x 8.33mm Thk

Oil, Independent PTO Drive Shaft Bearing Retainer 1.752" ID x 2.503" OD x .689

1шт.

49

389396R1

RETAINER, independent PTO drive shaft brg

1шт.

NLS

NO LONGER SERVICED

4шт.

50

370493R1

BEARING, NEEDLE

ROLLER, planet gear bearing needle

69шт.

51

345780R1

BLOCK

selector box

2шт.

52

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

1шт.

399628R1

PLUG, oil deflector

1шт.

Выбрано товаров: 61
