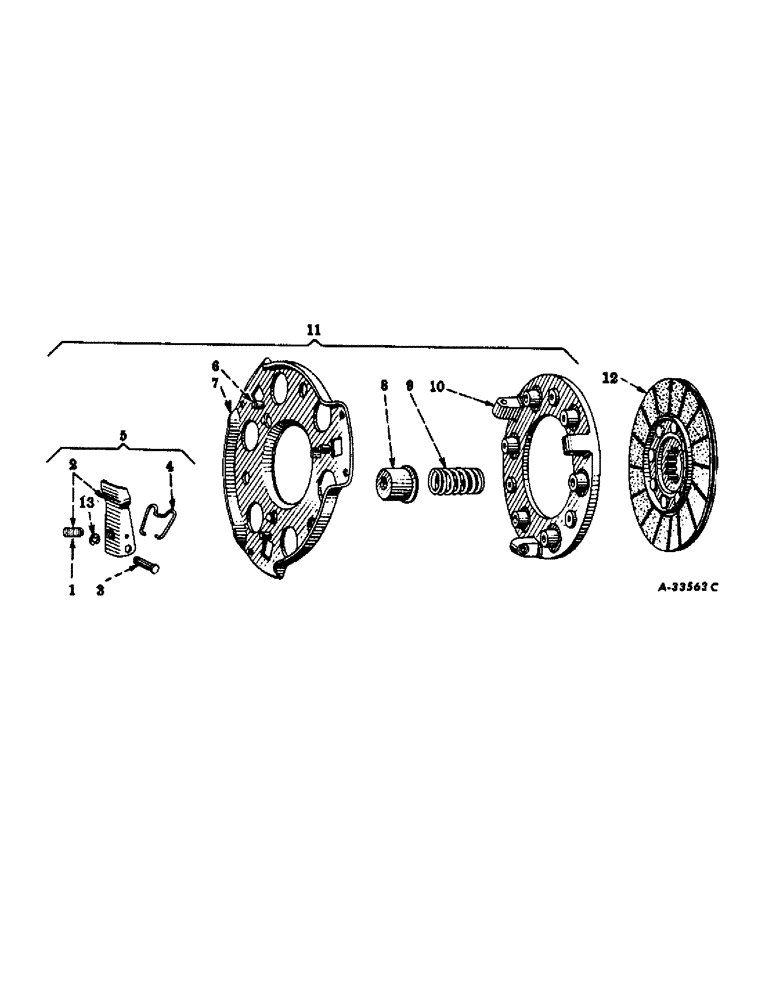

Запчасти Case IH 664 (07-14) - DRIVE TRAIN, CLUTCH, 7 INCH, TRACTORS WITH TORQUE AMPLIFIER (04) - Drive Train

1

359935R1

ADJUSTMENT SCREW

SCREW, lever adjusting

3шт.

375603R1

NUT

NUT, 5/16-24 hex jam

3шт.

2

359936R21

LEVER

LEVER, w/nut & screw, release

3шт.

3

369106R1

PIN

PIN, release lever

3шт.

4

359937R3

SPRING

SPRING, lever

3шт.

5

359948R94

KIT

PACKAGE, lever assy

1шт.

6

359933R1

SPARE PART SEAT, lever adjusting screw

3шт.

7

359932R91

SPARE PART PLATE ASSY, back

1шт.

8

359934R1

SPARE PART CUP, pressure plate spring

6шт.

9

359939R3

SPRING

SPRING, pressure plate

6шт.

10

362197R1

PLATE ASSY.

PLATE, pressure

1шт.

11

360215R94

COVER

PLATE ASSY, clutch pressure

1шт.

11

360215R94R

REMAN-CLUTCH PLATE

Remanufactured Clutch Plate-7 in

1шт.

11

360215R94C

CORE-CLUTCH PLATE

Return Part Number

1шт.

12

375701R91

DISC

DISC w/bonded facings, clutch driven

1шт.

13

369107R1

SNAP RING,#21, Ext

RING - snap, , release lever pin #21, Ext

3шт.
