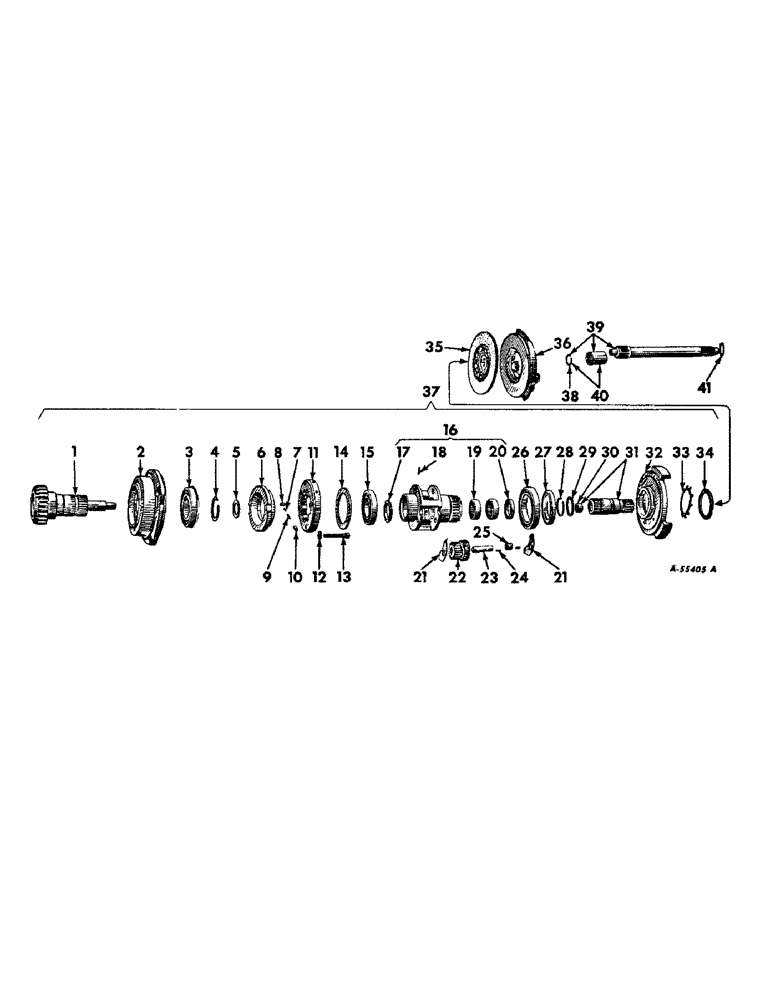

Запчасти Case IH 664 (07-12) - DRIVE TRAIN, TORQUE AMPLIFIER (04) - Drive Train

1

401770R1

SPARE PART SHAFT, transmission drive and secondary sun gear, 20 and 28 T

1шт.

2

360643R1

BEARING ASSY,3.9366" ID x 3"

CAGE, transmission drive shaft bearing

1шт.

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

ST343A

BALL BEARING,55mm ID x 100mm OD x 21mm W

BEARING, transmission drive shaft rear ball

1шт.

4

358059R1

SNAP RING

RING, transmission drive shaft rear brg snap

1шт.

5

359891R1

THRUST WASHER,29.21mm ID x 45.97mm OD x 2.39mm Thk

WASHER, driving primary and driven secondary sun gear thrust

1шт.

6

360651R2

SPACER

WASHER, overrunning clutch roller rear thrust

1шт.

7

361287R1

PIN,4.37mm OD x 25.4mm L

PIN, torque amplifier overrunning clutch

8шт.

8

365403R1

ROLL

ROLLER, torque amplifer overrunning clutch

8шт.

9

361286R1

SPRING

SPRING, torque amplifier overrunning clutch

8шт.

10

361285R1

PLUG

PLUG, torque amplifier overrunning clutch

8шт.

11

365402R11

RAMP

RAMP ASSY, bearing carrier and overrunning clutch, composed of (8) pin 361287R1, (8) plug 361285R1, (1) ramp 365402R1 (NSS), (8) roller 365403R1, (8) spring 361286R1

1шт.

12

360232R1

RING

RING, retaining

4шт.

13

360652R1

SPARE PART SCREW, bearing carrier, optional with 365615R1

4шт.

13

365615R1

SCREW

SCREW, bearing carrier optional with 360652R1

4шт.

14

363666R1

THRUST WASHER

WASHER, overrunning clutch roller thrust

1шт.

15

ST589

BALL BEARING,73.12mm ID x 106.36mm OD x 13.16mm W

BEARING, planet carrier rear ball

1шт.

16

361281R13

CARRIER

CARRIER ASSEMBLY, planet

1шт.

17

359882R1

WASHER

SPACER, planet carrier

1шт.

18

17046R1

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, , ESNA, planet gear shaft lock 1/8" x 1 1/8", Slotted

3шт.

19

359950R91

NEEDLE BEARING

BEARING, planet carrier roller

2шт.

20

359951R92

SEAL

SEAL, planet carrier oil

1шт.

21

359890R2

SUPPORT

PLATE, planet gear thrust

6шт.

22

362005R92

WHEEL

SET, planet gear, 23 and 29 T, consists of three gears

1шт.

23

361282R2

SHAFT

SHAFT, planet gear

3шт.

24

364634R91

PIN

PACKAGE, planet gear brg needle roller service, consists of 138 rollers

1шт.

25

359888R1

SPACER

SPACER, planet gear bearing

3шт.

26

ST562

BALL BEARING,75mm ID x 115mm OD x 20mm W

BEARING, planet carrier ball

1шт.

27

361248R92

OIL SEAL

SEAL, planet carrier front bearing oil

1шт.

28

359894R1

RING, SNAP

RING SNAP RING, primary sun gear washer snap

1шт.

29

359893R1

THRUST WASHER,43.66mm ID x 57.15mm OD x 2.39mm Thk

WASHER, primary sun gear thrust

1шт.

30

377133R91

ROLLER BEARING,Needle, 19.04mm ID x 25.41mm OD x 19.05mm W

BEARING, primary sun gear roller

1шт.

31

361283R32

SHAFT

GEAR, w/bearing, primary sun, 23T

1шт.

32

359895R3

RETAINER

CARRIER, torque amplifier clutch, not included in torque amplifier service package

1шт.

33

359896R2

LOCK NUT

LOCK, torque amplifier clutch carrier nut

1шт.

34

359897R1

NUT

NUT, torque amplifier clutch carrier

1шт.

35

375701R91

DISC

DISK ASSY, clutch pressure

1шт.

36

360215R94

COVER

PLATE ASSY, clutch pressure, for components see list of parts under details of clutch 7 inch

1шт.

36

360215R94R

REMAN-CLUTCH PLATE

Remanufactured Clutch Plate-7 in

1шт.

36

360215R94C

CORE-CLUTCH PLATE

Return Part Number

1шт.

359899R1

BOLT,1/4" - 20 x 9/16", Gr 2

SCREW, clutch back plate

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

37

402778R91

SPARE PART PACKAGE, torque amplifier service, consists of ref nos. 1 - 31, 33 and 34 and attaching hardware

1шт.

38

364411R1

SPRING

RING, torque amplifier drive shaft sleeve snap

1шт.

39

360676R51

SHAFT

SHAFT ASSY, torque amplifier drive

1шт.

40

364432R91

SLEEVE CYLINDER

SLEEVE ASSY, torque amplifier drive shaft

1шт.

41

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

O-RING, 9/16 x 3/4 x 3/32, clutch shaft

1шт.

395915R92

KIT

GASKET SET, torque amplifier overhaul, consists of (1) gasket 359129R2, (1) gasket 360642R2, (1) gasket 360667R3, (1) gasket 360871R1, (1) gasket 361187R1, (1) gasket 364721R1, (1) gasket 370518R1, (1) gasket 370695R1, (1) gasket 370801R1, (1) gasket 3960

1шт.
