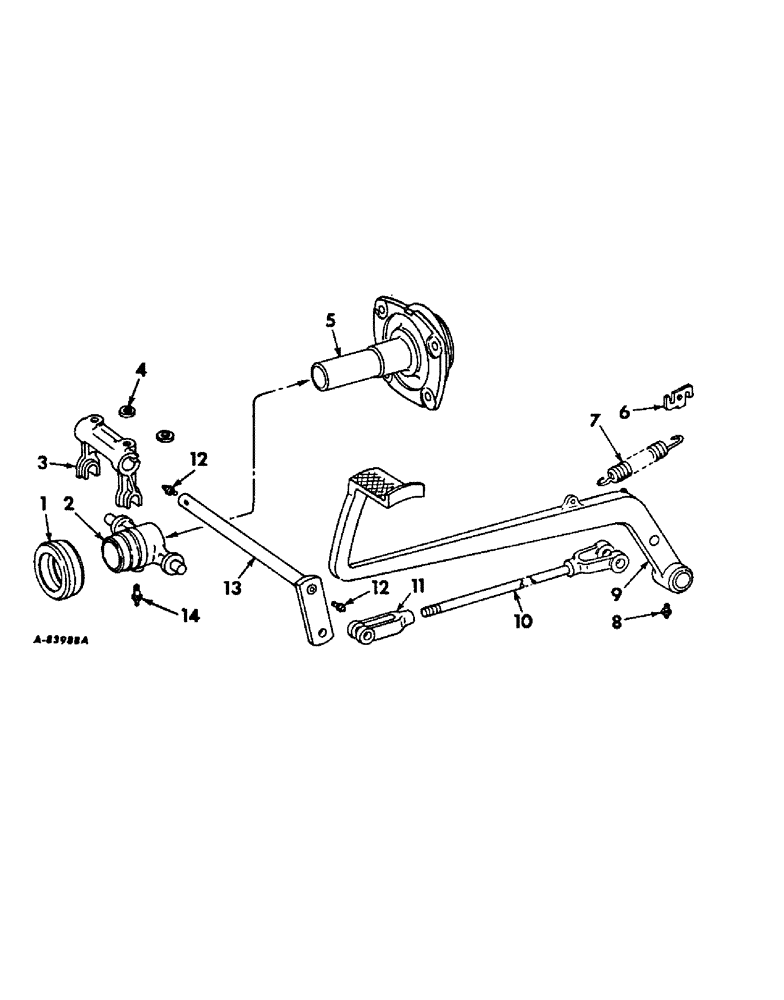

Запчасти Case IH 664 (07-11) - DRIVE TRAIN, CLUTCH CONTROLS (04) - Drive Train

1

363291R91

THRUST BEARING

engine clutch release ball

1шт.

2

360501R2

SLEEVE CYLINDER

SLEEVE, clutch release

1шт.

3

360503R1

FORK

clutch release

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

41116D

KEY

clutch release fork

2шт.

5

388674R1

CAGE

power take-off drive shaft

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

6

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

7

396314R1

SPRING

clutch pedal return

1шт.

8

19700R91

FITTING

3/16 45 deg angle drive type

1шт.

9

395861R1

PEDAL, clutch

1шт.

10

395920R1

ROD, clutch operating

1шт.

4226S

PIN

1/2 x 1-15/16 headed

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

11

213-318

CLEVIS

1/2-20 adj rod end

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex jam

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

114787

AXLE PIN

PIN, 1/2 x 1-27/64 rod end

1шт.

12

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 45 deg angle lub

2шт.

13

389510R91

SHAFT

ASSY, clutch release

1шт.

14

219-5

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, 1/8-27 str special short lub

1шт.
