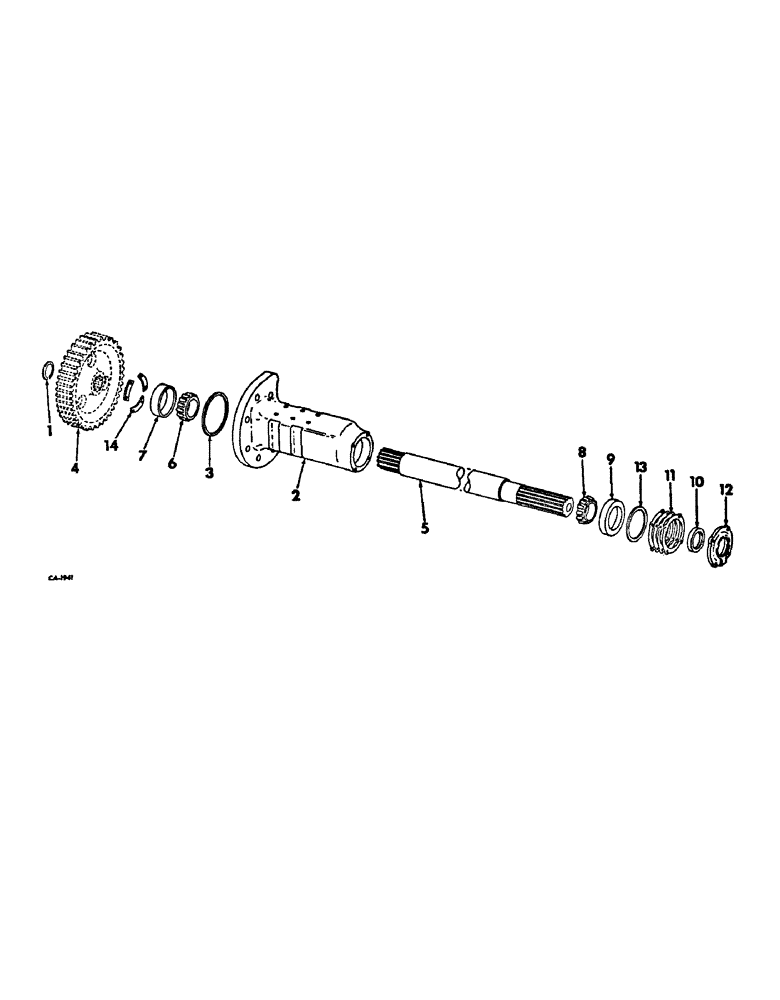

Запчасти Case IH 664 (07-10) - DRIVE TRAIN, REAR AXLE (04) - Drive Train

1

327059R1

SNAP RING,#275, 2.594, Ext

RING, external retaining

4шт.

2

530951R1

CARRIER, rear axle LH

1шт.

2

530952R1

CARRIER, rear axle RH

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd cap

14шт.

3

388108R1

O-RING,6.234" ID x 0.139" Width

RING, rear axle carrier sealing

2шт.

4

NSS

NOT SOLD SEPARAT

BULL GEAR, refer to differential listing

1шт.

5

395882R1

AXLE, rear

2шт.

6

ST794A

BEARING ASSY,71.44mm ID x 36.25mm W

rear axle inner cone

2шт.

7

13273D

BEARING, CUP,2.8755" ID x 5.001" OD x 1.452"

BEARING, rear axle inner cup

2шт.

8

ST761A

ROLLER BEARING,71.45mm ID x 28.57mm W

BEARING ASSY, rear axle outer cone

2шт.

9

ST856

CUP

BEARING, rear axle outer cup

2шт.

10

379248R91

OIL SEAL

rear axle oil

2шт.

11

530953R1

SHIM

carrier cap, .005, (or as required)

4шт.

11

530954R1

SHIM

carrier cap, .007, (or as required)

4шт.

11

530955R1

SHIM

carrier cap, .012, (or as required)

4шт.

11

530956R1

SHIM

carrier cap, .029, (or as required)

2шт.

12

530957R1

RETAINER, rear axle outer brg

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

13

610412C1

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

4-5/8 x 4-7/8 x 1/8

2шт.

14

394646R1

RETAINER

rear axle inner brg

6шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.
