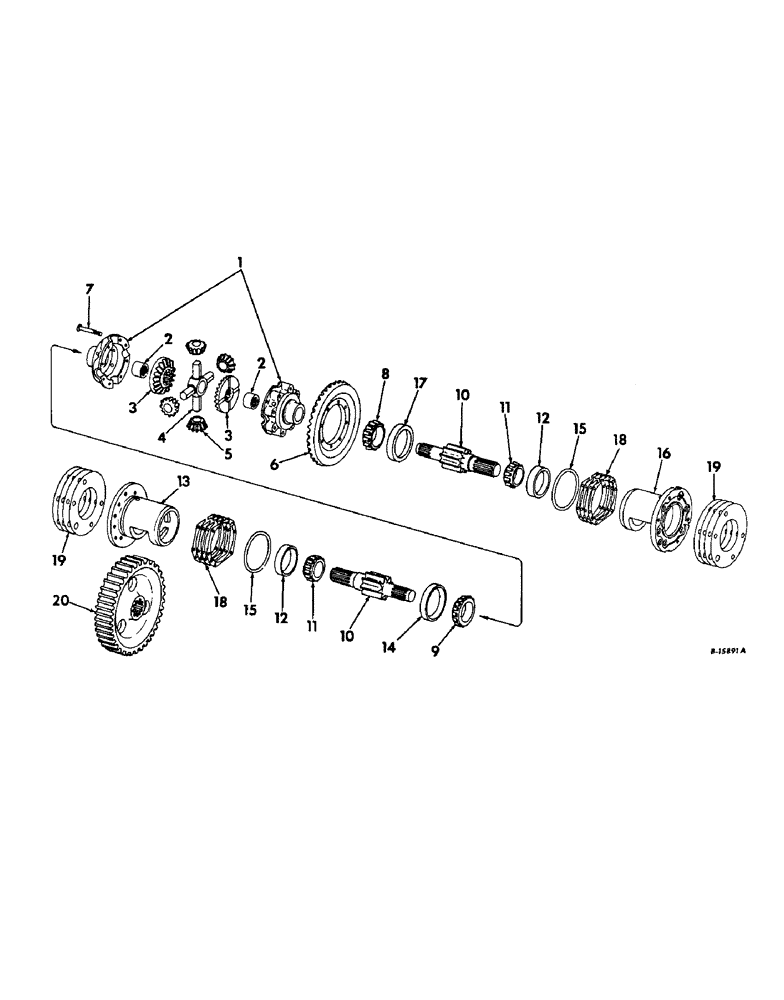

Запчасти Case IH 664 (07-09) - DRIVE TRAIN, DIFFERENTIAL (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
388089R91
CASE ASSY, differential
1шт.
2
389634R91
NEEDLE BEARING
differential case
2шт.
3
388092R1
GEAR
differential bevel, 28 T
2шт.
4
388093R1
U-JOINT SPIDER
SPIDER, differential
1шт.
5
360961R1
GEAR
PINION, differential bevel, 15 T
4шт.
6
400265R1
GEAR, bevel drive, 49 T
1шт.
7
588770R1
BOLT,7/16" - 20 x 3.50"
differential case
8шт.
381915R1
NUT,7/16"-20, G8
differential case bolt
8шт.
8
ST2114
BEARING ASSY
differential RH cone
1шт.
9
ST2120
BEARING ASSY,2.875" ID x 4.625" OD x 1.1875"
differential LH cone
1шт.
10
388285R1
SHAFT
bull pinion and brake
2шт.
11
ST2116
TAPERED BEARING,2.375" ID x 4.4375" OD x 1.1875" W
BEARING ASSY, bull pin shaft cone
2шт.
12
13363D
TAPERED BEARING
BEARING, bull pinion shaft cup
2шт.
13
388095R1
CAGE, bull pinion shaft bearing LH
1шт.
560170R1
BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8
SCREW, 7/16-14 x 1-1/4 hex-hd cap type 4
6шт.
14
ST856
CUP
BEARING, differential LH cup
1шт.
15
3046994R1
O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro
5-5/8 x 5-7/8 x 1/8 bull pinion shaft bearing cage
2шт.
16
388096R1
CAGE, bull pinion shaft bearing RH
1шт.
560170R1
BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8
SCREW, 7/16-14 x 1-1/4 hex-hd cap type 4
6шт.
17
ST986
TAPERED BEARING,133.35mm OD x 22.28mm W
BEARING, differential RH cup
1шт.
18
392772R1
SHIM
bull pinion shaft brg cage .005, (or as required)
4шт.
18
392773R1
SHIM
bull pinion shaft brg cage .007, (or as required)
4шт.
18
392774R1
SHIM
bull pinion shaft brg cage .015, (or as required)
4шт.
18
392775R1
SHIM
bull pinion shaft brg cage .030, (or as required)
4шт.
19
388100R1
SHIM
bull pin shaft brg ret, .005, (or as required)
4шт.
19
388101R1
SHIM
bull pin shaft brg ret, .007, (or as required)
4шт.
19
388102R1
SHIM
bull pin shaft brg ret, .012, (or as required)
4шт.
19
388103R1
SHIM
bull pin shaft brg ret, .029, (or as required)
4шт.
20
388104R2
GEAR, bull, 66 T
2шт.
Выбрано товаров: 29
