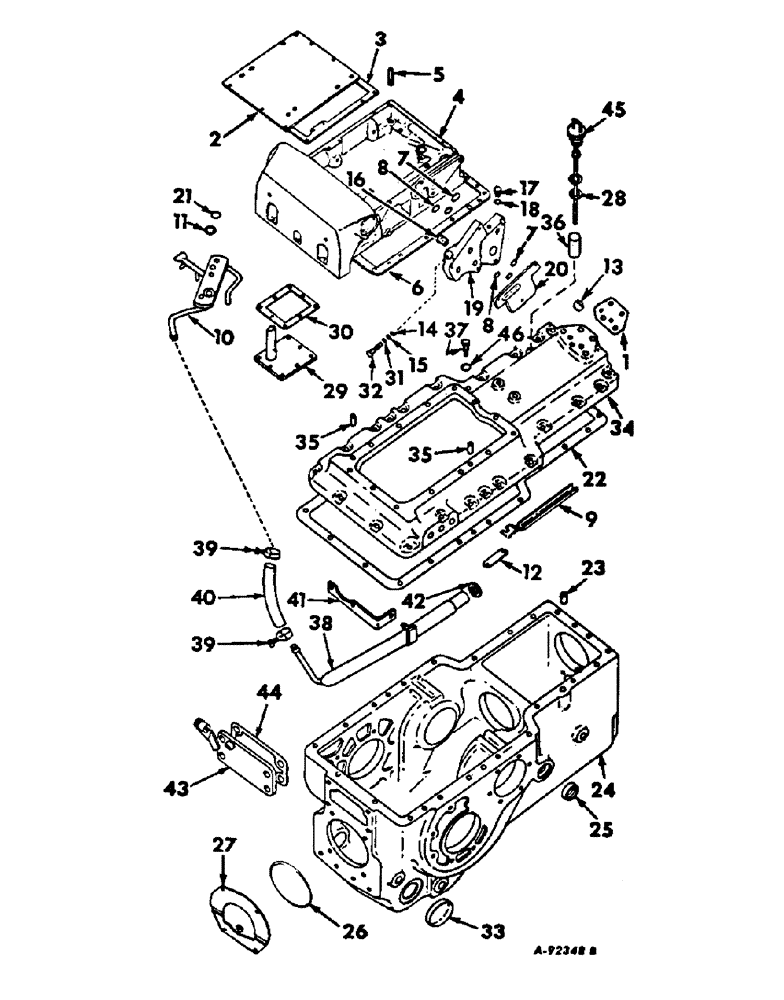

Запчасти Case IH 664 (07-07) - DRIVE TRAIN, REAR FRAME COVER AND CONNECTIONS (04) - Drive Train

1

392007R1

GASKET

1шт.

2

393761R1

COVER, hyd unit housing

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

5шт.

3

376018R1

GASKET

hyd unit housing cover

1шт.

4

532508R91

HOUSING ASSY, hydraulic unit, composed of (1) bearing 376009R1, (1) bushing 376010R1, (1) bushing 537118R1, (1) housing 532510R1 (NSS), (1) retainer 376015R1 (NSS), (1) tube 376007R1 (NSS)

1шт.

172557

PLUG

1-3/16 expansion

1шт.

9410358

PLUG

9/16-18 str o-ring boss

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap, for use w/battery ground & flasher

2шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

4шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

376015R1

BUSHING

RETAINER, suction port o-ring

1шт.

5

381747R1

PLUG, hydraulic unit housing drain

1шт.

6

375577R1

GASKET

hyd unit housing

1шт.

7

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, transfer block, large

2шт.

8

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, transfer block, small

4шт.

9

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

10

392643R91

PIPE

ASSY, differential lub and suction return

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

11

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 x 1-1/4 x 3/32, junction plate seal

1шт.

12

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

13

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

14

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, relief valve outer

1шт.

15

378985R2

BACK-UP RING

relief valve backup

1шт.

16

383440R91

LOCK VALVE

VALVE ASSY, check

1шт.

17

9410358

PLUG

9/16-18 str thd o-ring boss, hydraulic transfer block, small

1шт.

18

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, transfer block plug

1шт.

19

381795R2

BLOCK, hyd transfer & extension return

1шт.

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

return port plug

1шт.

9410363

PLUG

return port

1шт.

20

376023R4

COVER

control valve end

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

3шт.

21

372764R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1-1/8 x 1-5/16 x 3/32, suction cover

1шт.

22

388136R1

GASKET

rear frame spacer

1шт.

23

24550D

PIN

rear frame cover dowel

2шт.

24

401257R93

FRAME ASSY, rear composed of (1) frame 397050R4 (NSS), (2) pin 24550D, (1) plug 9409947, (1) plug 445686, (2) plug 388134R1, (2) seal 380959R91

1шт.

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 auto sq-soc-hd pipe

1шт.

445686

PLUG

3/8-18 auto sq-hd pipe

2шт.

25

380959R91

OIL SEAL,26.67mm ID x 46.53mm OD x 6.5mm Thk

brake pedal shaft oil

2шт.

26

384398R1

SEALING RING,0.551" ID x 0.07" Width

O-RING, 7-1/8 x 7-17/32 x 13/64, PTO opening cover

1шт.

27

358841R1

COVER, PTO opening

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

4шт.

28

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 1 x 1/8

2шт.

29

376040R11

COVER ASSY, hyd unit housing bottom

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

30

376983R1

GASKET

hyd unit housing bottom cover

1шт.

31

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, relief valve inner

1шт.

32

389033R93

VALVE

ASSY, pilot operated relief, 1600 PSI, for components see list of parts under details of pilot relief valve

1шт.

33

388134R1

PLUG

torsion bar cup

2шт.

34

388117R11

SPACER ASSY, rear frame

1шт.

NLS

NO LONGER SERVICED

SCREW, 7/16-14 x 1-1/2 hex-hd cap

10шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap

3шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 hex-hd cap

2шт.

35

357124R1

DOWEL

PIN, rear frame spacer dowel

2шт.

36

386450R1

GUIDE

oil level gauge

1шт.

37

152127H1

BREATHER,1/8"-27, Short

rear frame spacer

1шт.

38

400887R2

PIPE ASSY, oil suction

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

1шт.

39

30522D

HOSE CLAMP

CLAMP, suction hose

2шт.

40

401511R1

HYDRAULIC HOSE,0.63" ID x 10.50"

HOSE, suction tube

1шт.

41

402667R2

SUPPORT TUBE

SUPPORT, oil suction tube

1шт.

42

610414C1

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

oil suction tube

1шт.

43

388140R12

COVER

ASSY, draft control adj opening

1шт.

44

388144R2

GASKET

draft control opening cover

1шт.

13-1022

BOLT,Hex, 5/8" - 11 x 1-3/8", Gr 5, Full Thd

SCREW, 5/8-11 x 1-3/8 hex-hd cap

4шт.

45

388145R91

GAUGE

ASSY, oil level

1шт.

46

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.
