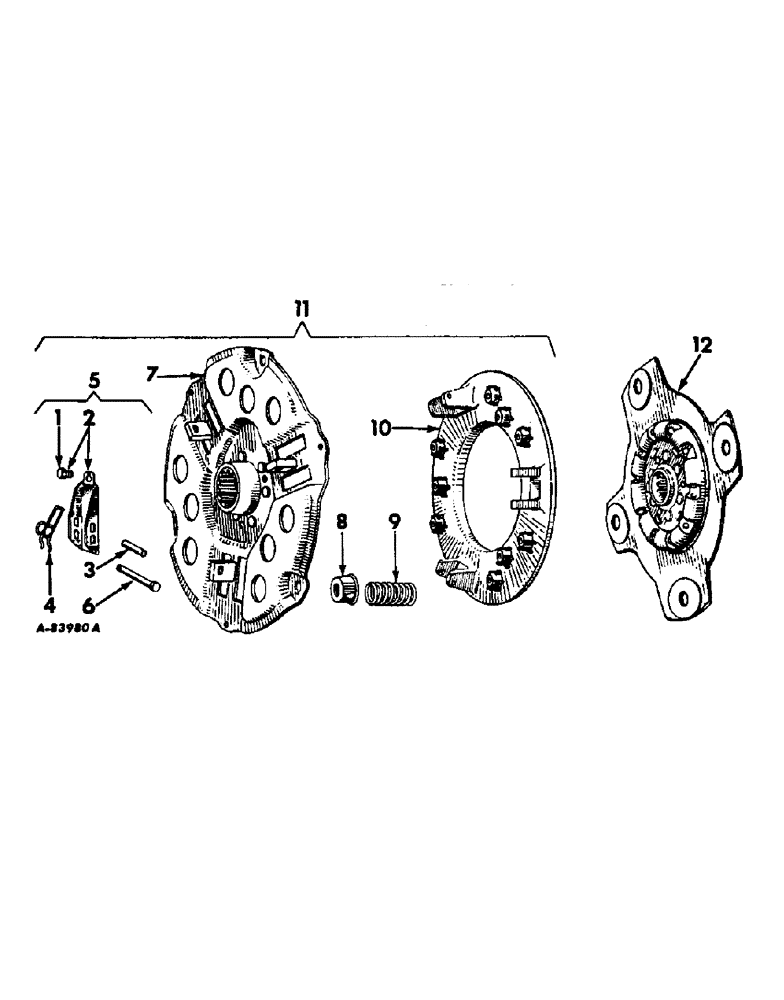

Запчасти Case IH 664 (07-06) - DRIVE TRAIN, CLUTCH (04) - Drive Train

1

146806R1

SCREW,Hex, 5/16" - 24 x 15/32"

SCREW, clutch lever adjusting

3шт.

2

389653R91

LEVER

LEVER ASSEMBLY, clutch

3шт.

3

143264R1

PIVOT PIN

PIN, lever pivot

3шт.

4

389654R1

SPRING

SPRING, clutch lever

3шт.

5

389652R91

PACKAGE

PACKAGE, clutch lever assembly

1шт.

6

149487R1

PIN

PIN, clutch lever

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

95-11034

WASHER,1/4"

WASHER, 11/32 x 11/16 x .065

3шт.

7

389650R91

PLATE

SPARE PART PLATE ASSEMBLY, clutch back

1шт.

8

353316R1

SPRING CUP

CUP, clutch pressure spring

9шт.

9

52907D

SPRING

SPRING, clutch pressure

9шт.

10

389651R1

PLATE ASSY.

PLATE, clutch pressure

1шт.

11

388616R91

PLATE ASSY.

PLATE ASSY, clutch pressure

1шт.

11

388616R91R

REMAN-CLUTCH PLATE

Remanufactured Clutch Plate, 11 in,

1шт.

11

388616R91C

CORE-CLUTCH PLATE

Return Part Number

1шт.

939323R1

12 PT SCREW,Flg, 5/16" - 18 x 0.88"

SCREW, 5/16-18 twelve-pt hd cap

6шт.

12

388625R91

DISC

DISC ASSY, clutch driven, Dyna Life

1шт.

12

388625R93R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 11 in., 10Tooth hub, 1 1/8 in. OD of spline, 4 paddle,

1шт.

12

388625R93C

CORE-CLUTCH DISC

Return Part Number

1шт.
