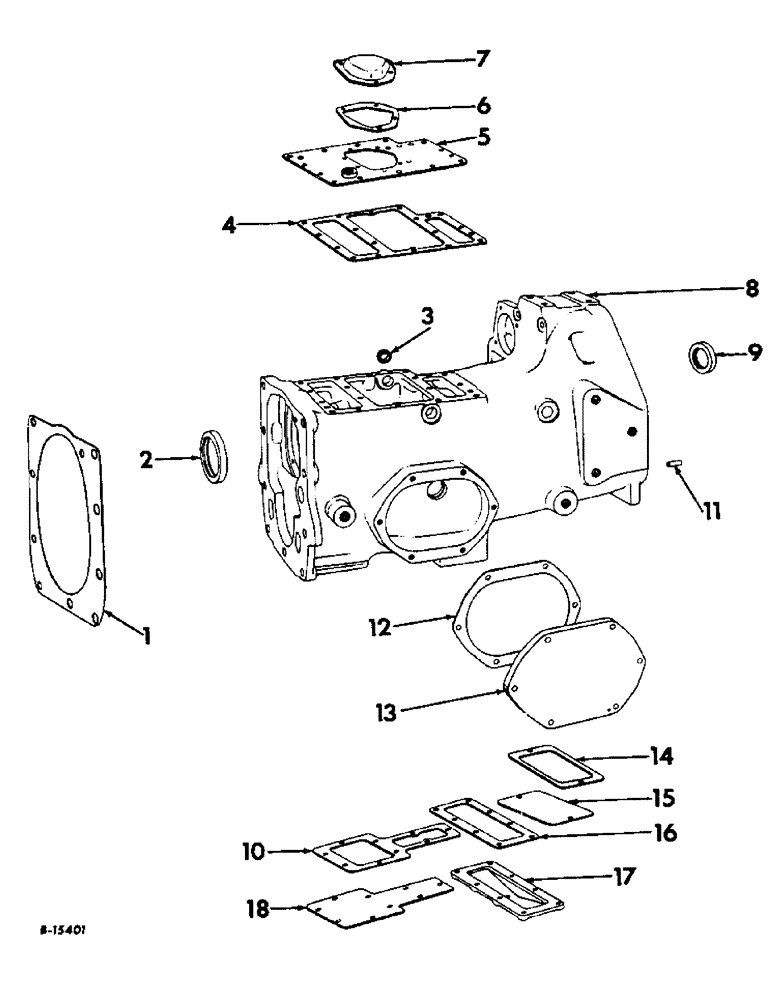

Запчасти Case IH 664 (07-04) - DRIVE TRAIN, CLUTCH HOUSING AND COVER (04) - Drive Train

1

396028R1

GASKET

clutch housing

1шт.

2

361248R92

OIL SEAL

transmission drive shaft oil

1шт.

3

359011R1

PLUG

T.A. clutch release shaft opening cup

2шт.

20955R1

DRAIN PLUG,Sq Hd, 2"-11 1/2 NPTF

PLUG, 2 in. sq-hd pipe, PTO drive shaft opening

1шт.

4

360642R2

GASKET

clutch housing top cover

1шт.

5

388615R11

COVER ASSY, clutch housing top

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

5

393875R11

COVER ASSY, clutch housing top, tractors with forward and reverse drive

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

10шт.

148107

SCREW, 1/4-20 x 1/2 cr-rec flat-hd mach

1шт.

6

364721R1

GASKET

clutch housing top cover cap

1шт.

7

364720R1

CAP

clutch housing top cover

1шт.

181352

BOLT

SCREW, 3/8-24 x 3/8 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

530656R92

HOUSING

ASSY, clutch, composed of (4) cork 104937, (3) cork 104940, (13) cork 104942, (1) housing 399234R1 (NSS), (1) plug 20955R1, (2) plug 359011R1

1шт.

104940

PLUG

5/8 x 13/16 No. 4 cork

3шт.

NLS

NO LONGER SERVICED

PLUG, 3/4 x 15/16 No. 6 cork

5шт.

8

401263R91

HOUSING ASSY, clutch, tractors w/forward and reverse drive, composed of (1) cage 378689R1, (1) cage 397097R1, (4) cork 104937, (13) cork 104942, (3) cork 104940, (1) housing 401264R1 (NSS), (1) plug 444660, (1) plug 20955R1, (1) ring 370856R1

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto sq-soc-hd drain

1шт.

104937

PLUG

7/16 x 5/8 #1 cork

4шт.

104940

PLUG

7/16 x 5/8 #1 cork

3шт.

NLS

NO LONGER SERVICED

PLUG, 3/4 x 15/16 #6 cork

5шт.

20955R1

DRAIN PLUG,Sq Hd, 2"-11 1/2 NPTF

PLUG, 2 in. sq-hd pipe

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

191268

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

SCREW, 1/2-13 x 6-1/2 hex-hd cap

2шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

11шт.

9

363514R93

OIL SEAL

OIL SEAL, PTO drive gear

1шт.

10

360667R3

GASKET

clutch housing rear bottom cover

1шт.

11

375362R1

PIN,12.69mm OD x 34.8mm L

rear engine support dowel, 1/2 x 1-3/8

2шт.

12

370801R1

GASKET

oil strainer opening cover

1шт.

13

377873R1

COVER, oil strainer opening

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

5шт.

14

360871R1

GASKET

clutch compartment bottom cover

1шт.

15

360872R1

COVER

clutch compartment bottom

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

16

359129R2

GASKET

IPTO driven gear cover

1шт.

17

372827R11

COVER

ASSY, IPTO driven gear

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

8шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto sq-soc-hd pipe

1шт.

18

360869R1

COVER, clutch housing bottom rear

1шт.

366464R91

SCREW, 3/8-16 x 3/4 indented hex-hd cap w/ext-tooth lockwasher

9шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.
