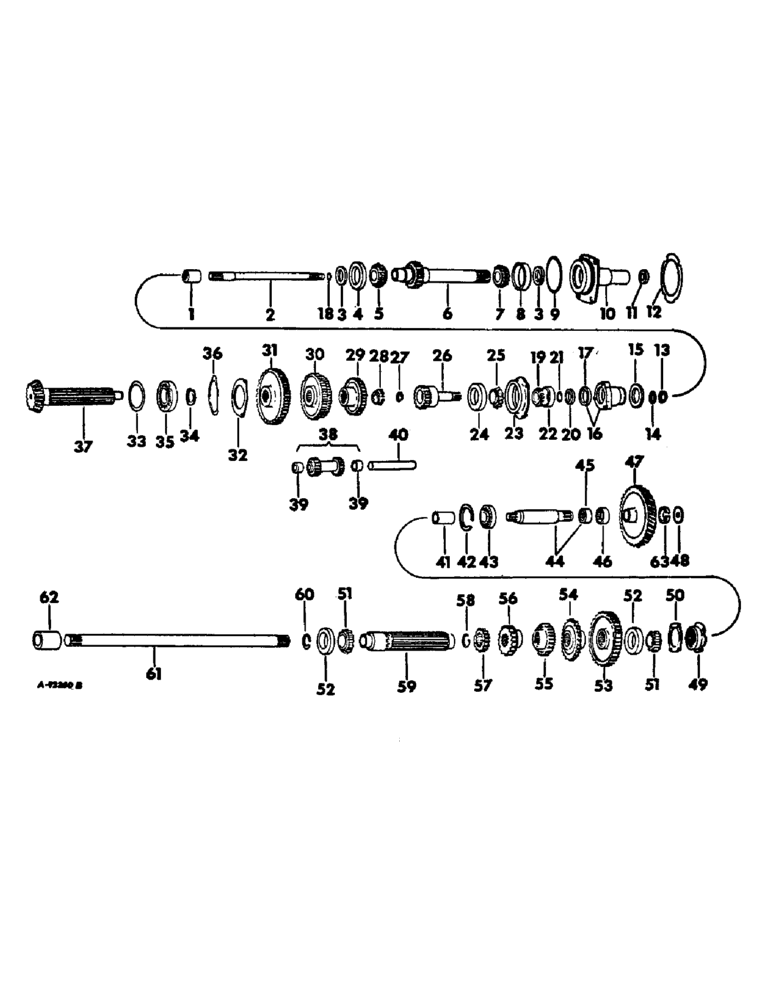

Запчасти Case IH 664 (07-02) - DRIVE TRAIN, TRANSMISSION AND POWER TAKE-OFF DRIVE (04) - Drive Train

1

358878R1

SLEEVE

COUPLING, transmission drive shaft

1шт.

Not used on tractors with forward and reverse drive

1шт.

Not used on tractors with torque amplifier

1шт.

2

360491R5

SHAFT

clutch

1шт.

Not used on tractors with forward and reverse drive

1шт.

Not used on tractors with torque amplifier

1шт.

3

363514R93

OIL SEAL

IPTO drive gear oil

2шт.

Not used on tractors with forward and reverse drive

1шт.

4

374167R1

CUP ASSY.

BEARING, PTO drive shaft rear cup

1шт.

Not used on tractors with forward and reverse drive

1шт.

5

G15215

ROLLER BEARING

BEARING ASSY, PTO drive shaft rear cone

1шт.

Not used on tractors with forward and reverse drive

1шт.

6

398738R1

SHAFT, independent PTO drive, 25 T, tractors w/1000 RPM PTO

1шт.

Not used on tractors with forward and reverse drive

1шт.

6

396214R1

SHAFT

independent PTO drive, 22 T

1шт.

7

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

BEARING ASSY, PTO drive shaft front cone

1шт.

8

ST987

BEARING CUP

BEARING, PTO drive shaft front cup

1шт.

9

252556R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

5-1/4 x 5-1/2 x 1/8, IPTO drive shaft bearing cage

1шт.

10

388674R1

CAGE

power take-off drive shaft bearing

1шт.

Not used on tractors with forward and reverse drive

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

11

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

clutch pilot ball

1шт.

11

524598R91GV

BEARING

Value, Ball Bearing

1шт.

12

388676R1

SHIM

PTO drive shaft brg, .007

1шт.

13

358876R1

LOCK NUT

drive shaft lock

1шт.

Not used on tractors with forward and reverse drive

1шт.

Not used on tractors with torque amplifier

1шт.

14

358875R1

WASHER

drive shaft nut

1шт.

Not used on tractors with forward and reverse drive

1шт.

Not used on tractors with torque amplifier

1шт.

15

361248R92

OIL SEAL

transmission drive shaft front bearing retainer oil

1шт.

16

360739R1

HUB

RETAINER, transmission drive shaft front oil seal

1шт.

Not used on tractors with forward and reverse drive

1шт.

Not used on tractors with torque amplifier

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

3шт.

17

400842R91

OIL SEAL

transmission drive shaft oil

1шт.

Not used on tractors with forward and reverse drive

1шт.

Not used on tractors with torque amplifier

1шт.

18

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32, clutch shaft

1шт.

19

400536R91

BEARING ASSY, drive shaft front cone

1шт.

Not used on tractors with forward and reverse drive

1шт.

20

360740R1

BUSHING

SPACER, transmission drive shaft

1шт.

Not used on tractors with forward and reverse drive

1шт.

Not used on tractors with torque amplifier

1шт.

21

293739R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1-3/8 x 1-5/8 x 1/8, transmission drive shaft spacer

1шт.

Not used on tractors with forward and reverse drive

1шт.

Not used on tractors with torque amplifier

1шт.

22

451495R1

BEARING ASSY,1.125" ID x 73 mm OD x 17.5 mm

drive shaft front cup

1шт.

23

400525R1

CAGE, transmission drive shaft bearing

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

24

27339H

BEARING, CUP

BEARING, transmission drive shaft rear cup

1шт.

25

E13746

BEARING, transmission drive shaft rear cone

1шт.

26

400524R1

SHAFT, transmission drive

1шт.

27

369875R1

RING, SNAP

RING, transmission drive shaft pilot bearing snap

1шт.

28

378810R91

ROLLER BEARING,0.5843" ID x 2.1021" OD x 1"

transmission main shaft pilot roller

1шт.

29

400260R2

GEAR WHEEL

GEAR, fourth and fifth speed sliding, 37 teeth

1шт.

30

65716C1

GEAR WHEEL

GEAR, second and third speed sliding, 48 and 44 teeth

1шт.

31

388165R1

GEAR

first and reverse speed sliding, 57 teeth

1шт.

31

397002R1

GEAR

first and reverse sliding, 52 T, tractors w/high speed first and reverse drive

1шт.

32

388164R1

RETAINER

transmission main shaft rear bearing

1шт.

179858

SUPPORT

SCREW, 7/16-14 x 1 hex-hd cap

3шт.

33

397908R91

SHIM

PACKAGE, mainshaft rear bearing shim, consists of (2) shim 395946R1 (NSS), (2) shim 395947R1 (NSS), (2) shim 395948R1 (NSS), (2) shim 395949R1 (NSS)

1шт.

34

357035R1

RING

transmission main shaft rear bearing snap

1шт.

35

529427R91

BEARING, ROLLER, CYL,64.99mm ID x 120mm OD x 23mm W

transmission main shaft rear roller

1шт.

36

360571R1

SHIM

main shaft rear brg retainer, .030

1шт.

37

400261R1

SHAFT, transmission main, 13 teeth

1шт.

38

388170R11

GEAR WHEEL

GEAR ASSY, reverse idler, 19 and 23 teeth

1шт.

Not used on tractors with forward and reverse drive

1шт.

38

397003R11

GEAR ASSY, reverse idler, tractors w/high speed first and reverse drive

1шт.

39

43312DA

BUSHING,28.39mm ID x 31.69mm OD x 31.75mm L

reverse idler gear

2шт.

40

388169R1

SHAFT

reverse idler

1шт.

Not used on tractors with forward and reverse drive

1шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

PIN, , ESNA 3/8" x 2", Slotted

1шт.

181354

BOLT

SCREW, 3/8-24 x 1/2 hex-hd cap

1шт.

Q1597

WASHER

13/32 x 3/4 x .065

1шт.

41

359912R2

COUPLING

power take-off drive shaft front

1шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

42

393148R1

RING

power take-off driven shaft rear bearing snap

1шт.

43

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

BEARING, power take-off driven shaft rear ball

1шт.

44

389535R11

SHAFT

ASSY, independent PTO driven front

1шт.

45

360664R1

RACE

power take-off driven shaft front inner needle bearing

1шт.

46

360665R91

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

powr take-off driven shaft front inner needle

1шт.

47

389537R1

GEAR

independent PTO driven, 81 teeth

1шт.

47

607711C1

GEAR, independent PTO driven, 56 teeth, tractors w/1000 RPM IPTO

1шт.

Not used on tractors with forward and reverse drive

1шт.

48

354617R1

WASHER

independent PTO driven gear retaining

1шт.

389259R1

BOLT,Hex, 1/2" - 20 x 1.84", Gr 4

retaining washer

1шт.

49

388153R1

CAGE, countershaft front bearing

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

4шт.

50

388154R1

SHIM

countershaft front brg, .030

1шт.

50

388155R1

SHIM

countershaft front brg, .012

1шт.

50

388156R1

SHIM

countershaft front brg, .007

1шт.

50

388157R1

SHIM

countershaft front brg, .005

1шт.

51

G15215

ROLLER BEARING

BEARING ASSY, countershaft cone

2шт.

52

374167R1

CUP ASSY.

BEARING, countershaft cup

2шт.

53

400259R1

GEAR

constant mesh, 61 teeth

1шт.

54

388151R1

GEAR

fourth speed driving, 44 teeth

1шт.

55

388150R1

GEAR

third speed driving, 37 teeth

1шт.

56

388149R1

GEAR WHEEL

GEAR, second speed driving, 33 teeth

1шт.

57

388148R1

GEAR

first speed driving, 24 teeth

1шт.

57

397001R1

GEAR, first speed driving, 29 T, tractors w/high speed first and reverse drive

1шт.

58

375374R1

RING

countershaft snap

1шт.

59

400673R1

SHAFT

COUNTERSHAFT, transmission

1шт.

60

659676R1

SNAP RING,3.156", Int, #315

RING - snap, , countershaft rear brg, optional with 406754R1 3.156", Int, #315

1шт.

60

406754R1

RING

countershaft rear bearing snap, optional w/659676R1

1шт.

61

389141R11

SHAFT

ASSY, IPTO extension

1шт.

62

360168R1

COUPLING,12T

extension shaft

1шт.

63

395082R1

RING

independent PTO driven gear wedge

1шт.

407217R1

FLUID

ADDITIVE, torque amplifier and transmission lubricant, gallon can

1шт.

372703R5

FLUID, hy-tran, quart can

1шт.

372704R5

FLUID

hy-tran, gallon can

1шт.

372705R5

FLUID

hy-tran, five gallon can

1шт.

407024R5

FLUID, hy-tran, fifteen gallon can

1шт.
