(15-03[1]) - WHEELS AND TRACTION, REAR WHEEL HUB

Запчасти Case IH 664 (15-03[1]) - WHEELS AND TRACTION, REAR WHEEL HUB Wheels & Traction

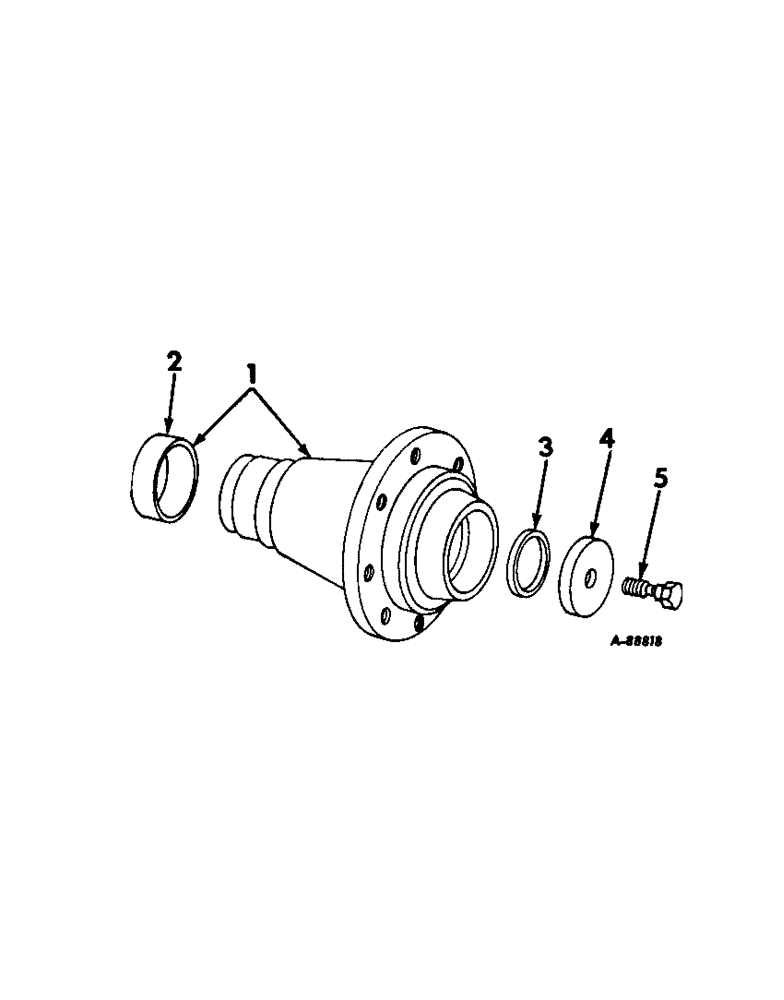

Схема запчастей Case IH 664 - (15-03[1]) - WHEELS AND TRACTION, REAR WHEEL HUB Wheels & Traction
5
3
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

379243R31

HUB

ASSY, rear wheel

2шт.

522067R2

BOLT,9/16" - 18 x 2 11/32", Grade 5

rear wheel mounting

16шт.

124634

NUT,9/16"-18, G5

16шт.

2

379244R1

RING

WEAR RING, rear wheel

2шт.

3

379242R1

RING

rear axle sealing

2шт.

4

49793D

WASHER

WASHER, rear wheel hub retainer

2шт.

5

379245R1

BOLT,Hex, 3/4" - 16 x 2"

rear wheel hub retainer

2шт.
