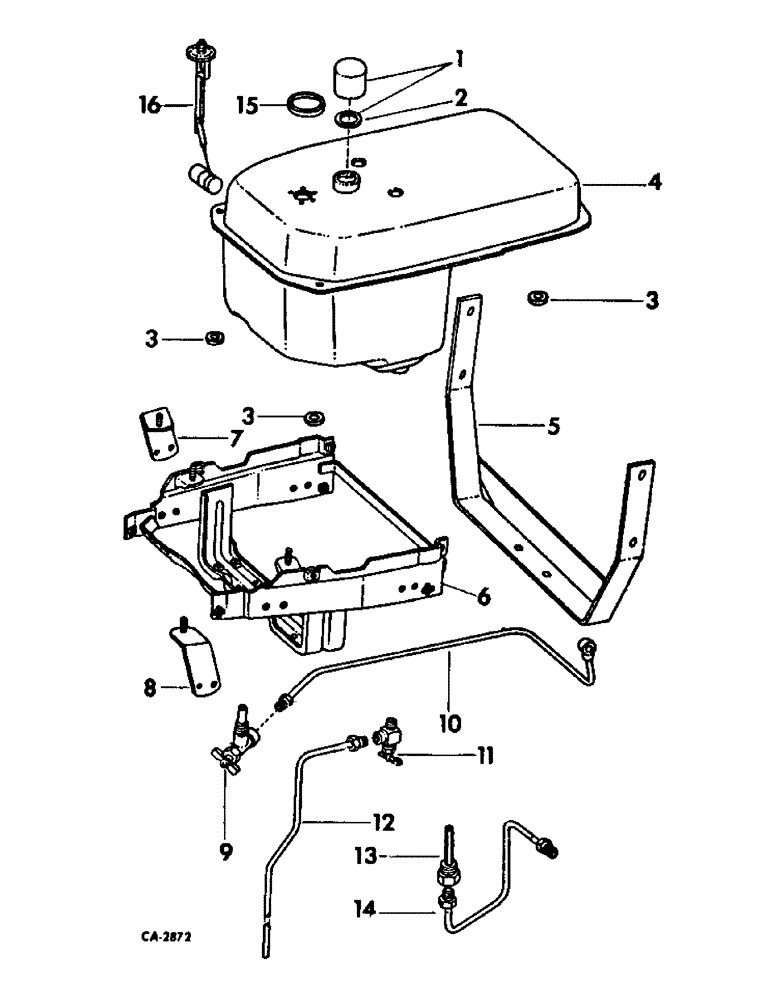

Запчасти Case IH 664 (12-08) - POWER, FUEL TANKS, SUPPORT AND PIPING Power

1

361910R91

PLUG

CAP W/GASKET, fuel tank fuller

1шт.

213516

RIVET

1/8 x 1/8 C-Z ov-hd tubular

2шт.

2

23977DB

GASKET

fuel tank filler cap

1шт.

3

60671DA

WASHER,11.94mm ID x 30.48mm OD x 8.13mm Thk

PAD, fuel tank insulating

4шт.

4

405927R93

TANK ASSY, fuel w/filler cap

1шт.

102635

NUT,3/8"-16, G5

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

5

527750R1

SUPPORT ASSY, fuel tank frt

1шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16-14 x 1-3/4 hex-hd cap

2шт.

405932R1

SPACER, fuel tank front support

2шт.

6

405933R1

SUPPORT ASSY, fuel tank & cowl, rear

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 hex-hd cap

4шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

2шт.

7

405935R1

SUPPORT ASSY, fuel tank LH

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

1шт.

8

405936R1

SUPPORT ASSY, fuel tank RH

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

1шт.

9

396510R1

LOCK VALVE

VALVE, inverted angle shut-off

1шт.

10

405940R1

TUBE ASSY, fuel, Serial Range: tank-filter

1шт.

11

152572C91

VALVE

inverted flare shut-off

1шт.

12

405939R1

TUBE ASSY, fuel tank water drain

1шт.

13

396515R1

CHECK VALVE

CONNECTOR, fuel return

1шт.

14

405942R1

TUBE ASSY, fuel, Serial Range: tank-return

1шт.

15

369154R1

GASKET

sending unit

1шт.

16

377103R91

SENDER UNIT

SENDING UNIT, electric fuel gauge

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

371194R1

CLAMP, drain line

2шт.

109084

NUT,1/4"-20, G5

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
