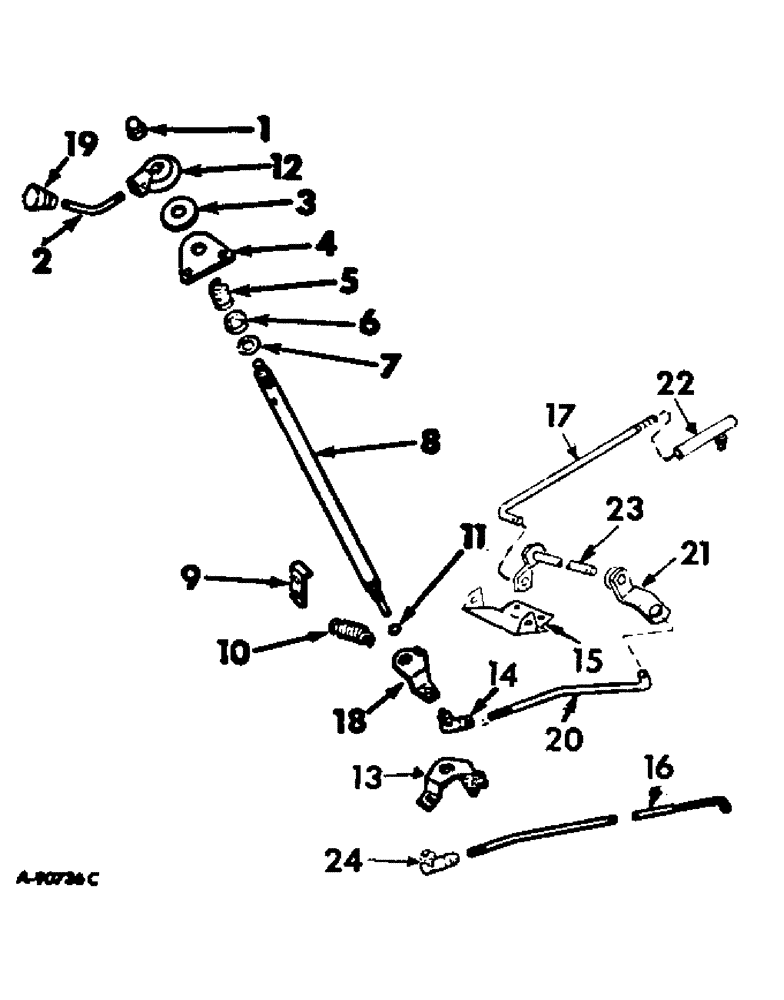

Запчасти Case IH 664 (12-07) - POWER, ENGINE SPEED CONTROLS Power

1

369478R1

NUT

engine speed control lever

1шт.

2

537479R1

ROD, governor control handle

1шт.

120395

WASHER

15/32 x 59/64 x .065 C-Z

1шт.

3

394716R1

DISC

GASKET, governor control friction disc

1шт.

4

369465R1

SUPPORT

PLATE, governor control friction

1шт.

131577

PISTON ROD

NUT, 1/4-20 hi-crown hex

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 C-Z hex-hd cap

1шт.

5

394715R1

SPRING

governor control

1шт.

6

370628R1

RETAINER

RETAINER, governor control spring

1шт.

7

370627R2

SPACER

governor control spring

1шт.

8

403594R1

SHAFT

governor control

1шт.

19928R1

PIN,3/16" x 3/4", Coiled

1шт.

9

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

10

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

11

370290R1

SNAP RING,#50, .392" Dia, E-Type

RING - retaining, , governor control #50, .392" Dia, E-Type

1шт.

12

399242R1

HUB, governor control handle

1шт.

38-31014

PIN,5/32" x 7/8", Coiled

PIN - grooved, 5/32" x 7/8", Type A

1шт.

13

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

14

393353R91

JOINT TURNING

JOINT, 5/16-24 C-Z ball

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex

1шт.

15

401784R1

PLATE, governor control pivot lever

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 hex-hd cap

1шт.

16

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

17

401782R1

ROD, governor control, front

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 jam

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

18

369466R21

ARM ASSY, governor control

1шт.

374549R1

BEARING

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex jam

2шт.

369467R1

PIN

1шт.

19

397931R2

GRIP

governor control handle

1шт.

19

397931R2GV

SPRING

Value, Knob

1шт.

20

401781R1

ROD, governor control, rear

1шт.

21

401777R1

LEVER, governor control operating

1шт.

19928R1

PIN,3/16" x 3/4", Coiled

1шт.

22

366795R92

JOINT TURNING

JOINT, spring loaded ball

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-20 hex

1шт.

23

401780R1

LEVER ASSY, governor control

1шт.

24

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.
