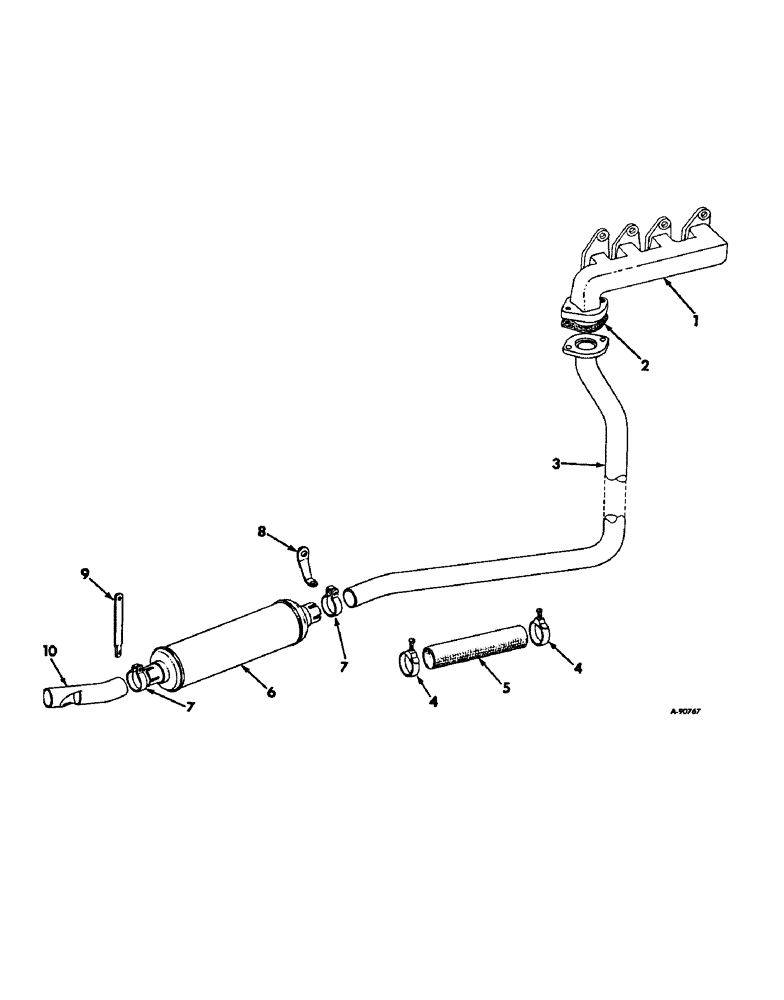

Запчасти Case IH 664 (12-06) - POWER, UNDERSLUNG MUFFLER Power

1

3055276R11

EXHAUST MANIFOLD

MANIFOLD ASSY, exhaust

1шт.

2

401486R1

MANIFOLD GASKET

, Serial Range: manifold-pipe

1шт.

3

402696R1

TUBE

PIPE ASSY, exhaust

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103026

NUT,3/8"-24, G5

2шт.

4

29979D

CLAMP

sleeve

2шт.

5

381817R2

SLEEVE

asbestos

1шт.

6

371039R91

MUFFLER

exhaust

1шт.

6

371039R91GV

MUFFLER

Value, Muffler

1шт.

7

48889DA

CLAMP

exhaust muffler

2шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, 3/8-24 x 1-1/2 hex-hd cap

2шт.

93082H

NUT

exhaust muffler clamp

2шт.

8

369286R1

SUPPORT

muffler front

1шт.

9

369287R1

SUPPORT

muffler rear

1шт.

369324R1

SPACER, muffler rear support

1шт.

10

369288R1

PIPE

tail

1шт.
