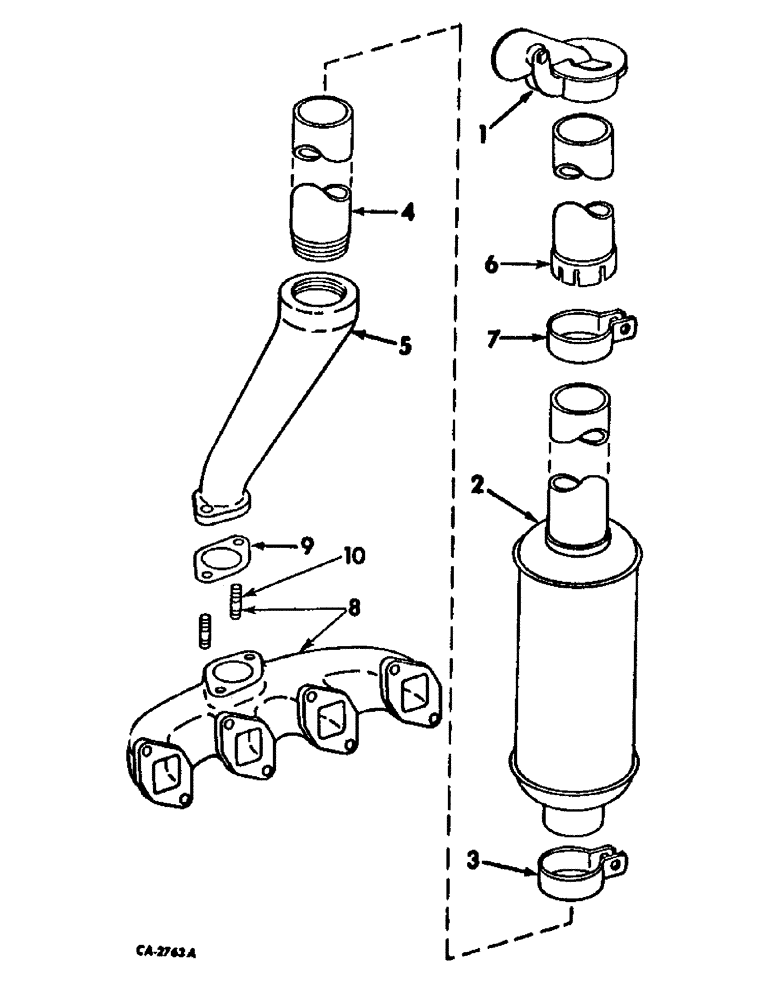

Запчасти Case IH 664 (12-05) - POWER, MANIFOLD AND VERTICAL EXHAUST SYSTEM Power

403428R91

PARTS ACCESSORY, vertical muffler

1шт.

1

403586R1

CYLINDER END CAP

CAP ASSY, weather

1шт.

2

403550R2

MUFFLER

exhaust, 27 in., included in parts accessory, 403428R91

1шт.

2

403551R1

MUFFLER

exhaust, 35 in.

1шт.

2

403551R1GV

MUFFLER

Value, Muffler

1шт.

3

403585R1

CLAMP

exhaust

1шт.

102635

NUT,3/8"-16, G5

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

401271R1

PIPE

exhaust

1шт.

5

401272R1

ADAPTER

exhaust

1шт.

103026

NUT,3/8"-24, G5

1шт.

6

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

7

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

8

3058003R12

MANIFOLD

ASSY, exhaust w/two studs, 3055663R1

1шт.

103026

NUT,3/8"-24, G5

8шт.

20285H

WASHER

.413 x .748 x .118

8шт.

9

401120R1

GASKET

exhaust

1шт.

10

3055663R1

STUD

exhaust manifold

2шт.
