(12-04[1]) - POWER, ELECTRIC AIR CLEANER INDICATOR

Запчасти Case IH 664 (12-04[1]) - POWER, ELECTRIC AIR CLEANER INDICATOR Power

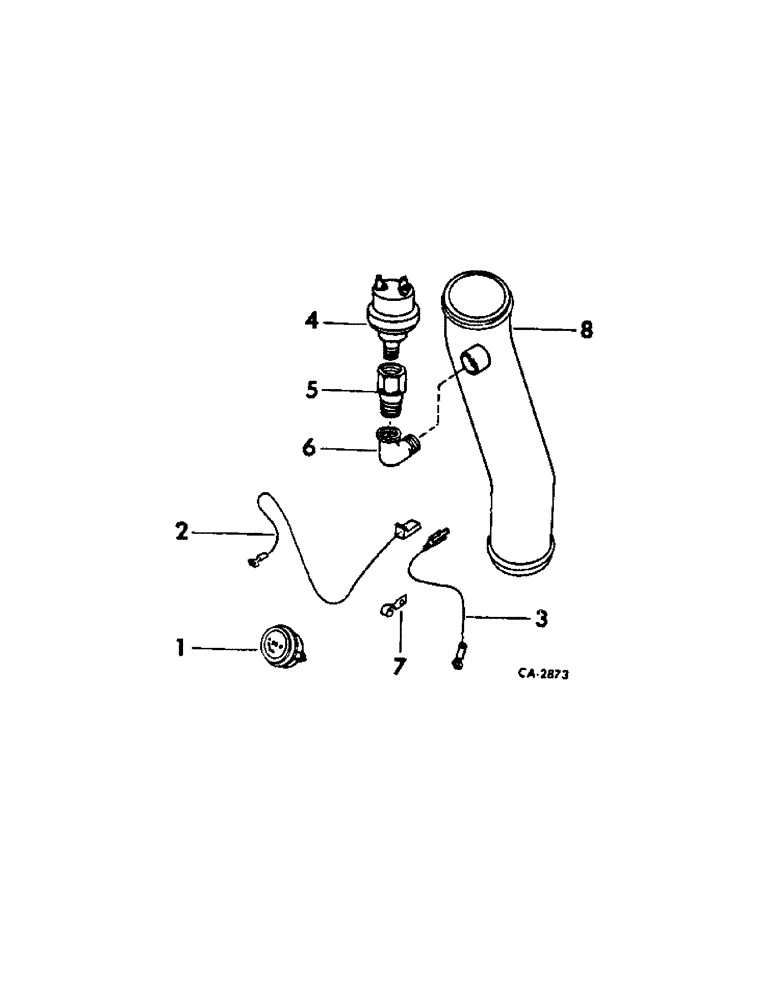

Схема запчастей Case IH 664 - (12-04[1]) - POWER, ELECTRIC AIR CLEANER INDICATOR Power
1
5
8
2
6
4
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

389871R91

GAUGE

INDICATOR ASSY, electric air cleaner

1шт.

2

405208R1

CABLE ASSY, junction block

1шт.

3

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum, Serial Range: switch-ground

1шт.

4

389682R91

SWITCH

electric air cleaner vacuum

1шт.

5

389908R91

ADAPTER

vacuum switch

1шт.

6

444163

ELBOW

1/8-27 90 deg autom pipe street

1шт.

7

363660R1

CLIP

1шт.

8

402503R1

TUBE ASSY, electric air cleaner outlet

1шт.
