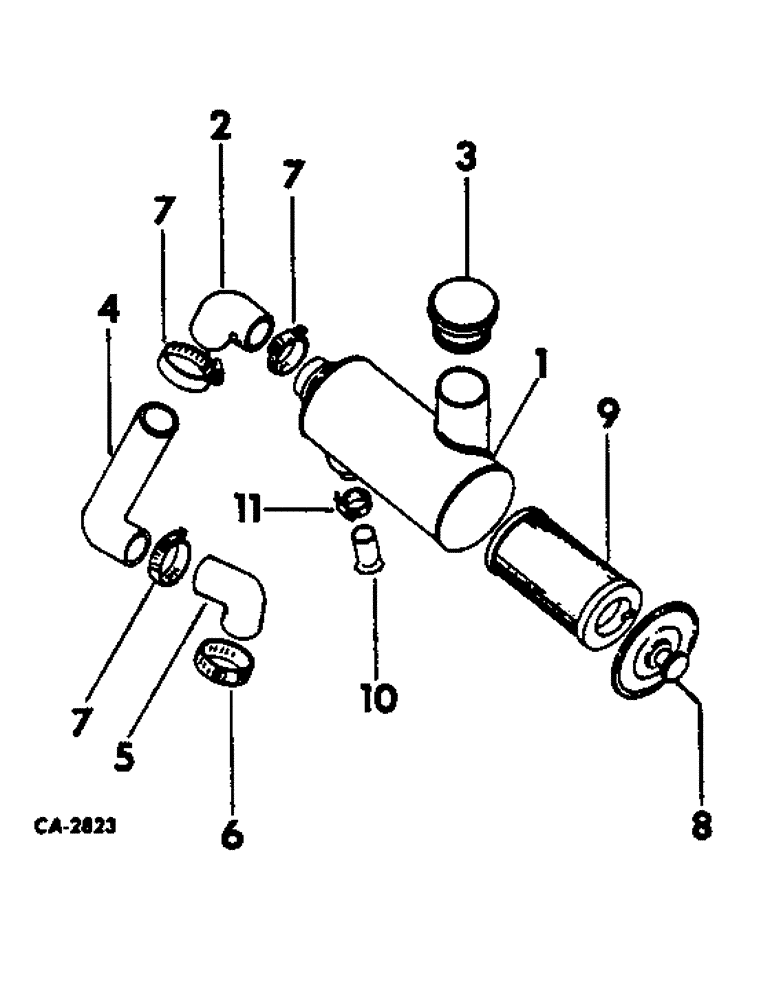

Запчасти Case IH 664 (12-02) - POWER, AIR CLEANER AND CONNECTIONS Power

1

402494R91

CLEANER ASSY, air, includes ref. nos. 8 - 11

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

2

306190R1

HOSE ASSY.

HOSE, air cleaner pipe

1шт.

3

272377R91

CYLINDER END CAP

CAP ASSY, air intake

1шт.

4

402503R1

TUBE ASSY, air cleaner outlet

1шт.

5

402502R1

HOSE, air intake elbow

1шт.

6

397257R1

HOSE CLAMP,#52, 2.81/3.75 Type F Worm, W/liner

CLAMP, air cleaner hose

1шт.

7

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, air cleaner hose

3шт.

8

313965R91

LOCK

BAR ASSY, retainer

1шт.

9

403889R1

FILTER, ELEMENT

FILTER ASSY

1шт.

10

329194R1

UNLOADER

1шт.

11

526609R9

CLAMP

1шт.
