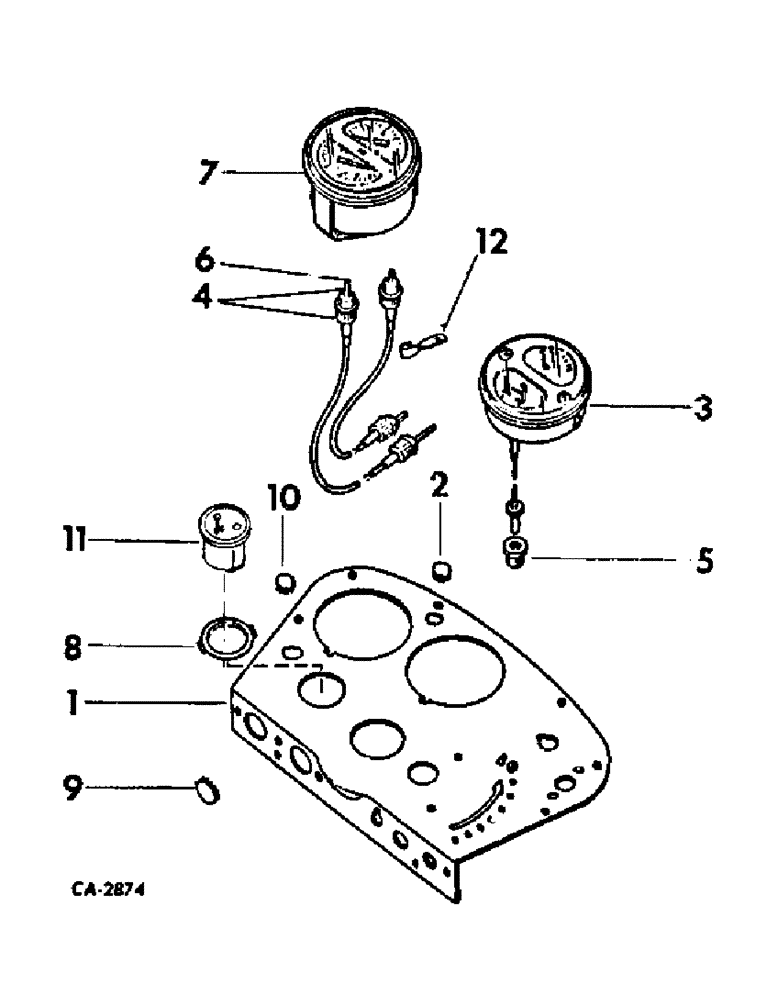

Запчасти Case IH 664 (11-02) - INSTRUMENTS, INSTRUMENT PANEL AND GAUGES Instruments

1

402071R2

PANEL ASSY, instrument

1шт.

120583

SCREW,Sl Rnd Hd, 1/4" - 20 x 5/8"

1/4-20 x 5/8 C-Z slt-rd-hd mach

10шт.

2

432487

HOLE PLUG BUTTON,11/16"

PLUG, C-Z panel button

1шт.

3

539293R1

CLUSTER

ASSY, gauge

1шт.

4

401830R91

CABLE

ASSY, tachometer flex drive

1шт.

5

51510DA

RESTRICTOR

BUSHING, capillary tube bulb installation

1шт.

6

402240R1

NO LONGER SERVICED

CORE, flexible drive shaft

1шт.

7

539294R1

SPEEDOMETER, tachometer assy

1шт.

7

539295R1

SPEEDOMETER, tachometer assy, tractors w/torque amplifer

1шт.

8

371052R11

COVER

ASSY, air cleaner indicator

1шт.

9

432281

HOLE PLUG BUTTON,29/32"

PLUG, cigarette lighter hole button

1шт.

10

374342R1

PLUG

horn switch hole button

1шт.

11

NSS

NOT SOLD SEPARAT

INDICATOR ASSY, electric air cleaner, refer to electric air cleaner indicator listing, group 12

1шт.

12

370740R1

CLAMP

CLIP, tachometer cable

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

363660R1

CLIP

capillary tube

1шт.
