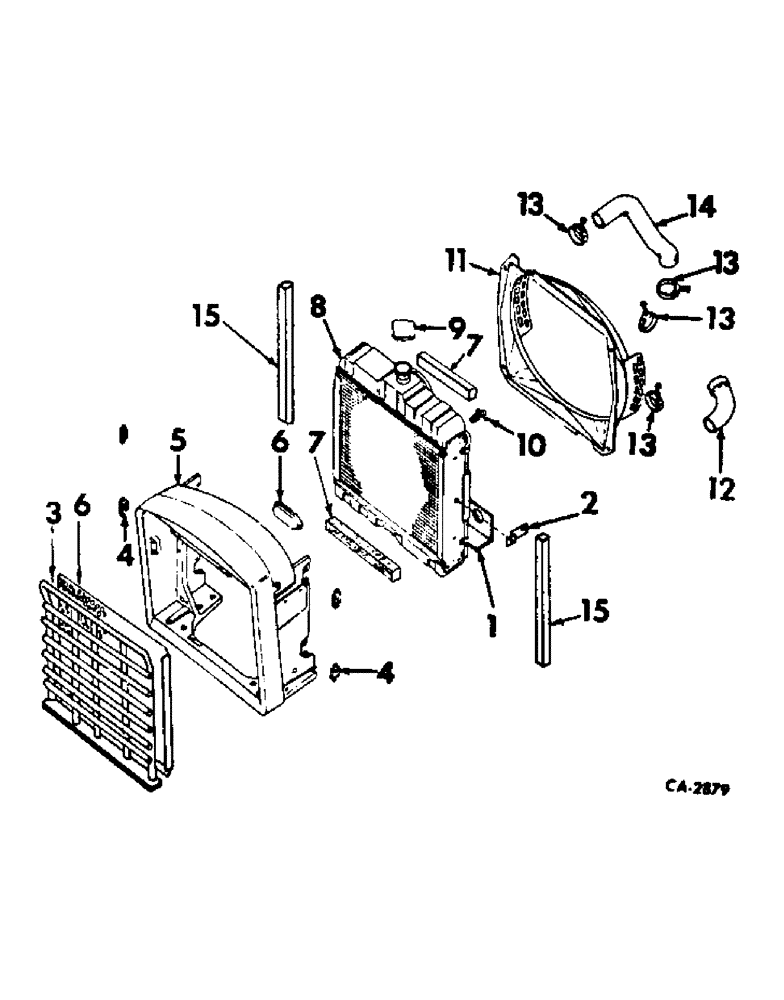

Запчасти Case IH 664 (06-02) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

399496R1

SUPPORT, radiator shield

1шт.

399397R1

BUSHING

snap

1шт.

2

397242R1

BRACE, side panel

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

2шт.

3

396548R11

GRILLE ASSY, radiator

1шт.

23771R1

PIN, 3/64 x 1 cot., stainless stl

1шт.

173639

SCREW

rd-hd blunt metallic drive

1шт.

396551R1

SPRING

radiator grille

1шт.

4

378710R91

PLATE ASSY.

BRACKET, radiator mounting plate

4шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

4шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

5

395825R21

SUPPORT ASSY, radiator

1шт.

102635

NUT,3/8"-16, G5

5/8-11 hex

2шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

617937R1

PIN,1/4" x 7/8", Coiled

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 2-1/2 hex-hd cap

4шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-1/2 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

6

396553R1

SCREEN

radiator grille

1шт.

7

385631R1

SEAL

radiator air

2шт.

8

402285R2

RADIATOR ASSY, less filler cap

1шт.

403381R1

SEAL, radiator air

1шт.

9

402281R1

CYLINDER END CAP

CAP, radiator pressure

1шт.

10

614201R1

VALVE

COCK, 1/4 drain, radiator

1шт.

11

402216R1

SHROUD, fan

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

12

402215R1

HOSE ASSY.,50.80 mm ID x 266.70 mm, SAE 20R4, CLASS R, GRADE 1A

RADIATOR HOSE, , Outlet 50.80 mm ID x 266.70 mm, SAE 20R4, CLASS R, GRADE 1A

1шт.

13

81448H

EXCITER

CLAMP, 2-17/32 hose

4шт.

14

402212R1

HOSE ASSY.,50.80 mm ID x 205.70 mm, SAE 20R4, CLASS R, GRADE 1A

RADIATOR HOSE, , Inlet 50.80 mm ID x 205.70 mm, SAE 20R4, CLASS R, GRADE 1A

1шт.

15

403382R1

SEAL, radiator air

2шт.
