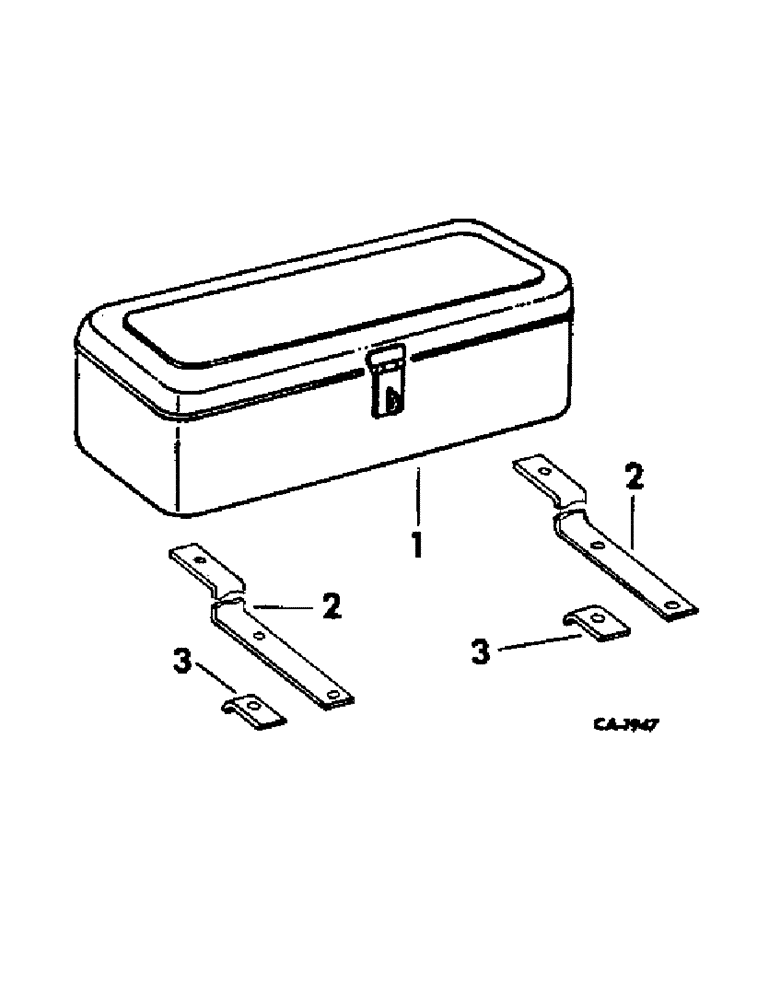

Запчасти Case IH 664 (02-03) - MISCELLANEOUS, TOOL BOX Accessories & Attachments / Miscellaneous

1

400455R1

BOX, TOOL

BOX ASSY

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

102635

NUT,3/8"-16, G5

4шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

4шт.

2

539555R1

BRACKET, tool box mounting

2шт.

(P/N 782898R1) - use 2752898R1

1шт.

3

535446R1

CLAMP, tool box bracket

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

102635

NUT,3/8"-16, G5

2шт.

539292R92

PACKAGE, product graphics service, for red vehicle, consists of

1шт.

539233R1

PRODUCT GRAPHIC, 664 model symbol (NSS)

2шт.

538173R1

PRODUCT GRAPHIC, International name plate (NSS)

2шт.

2750839R1

DECAL

PRODUCT GRAPHIC, lighting switch (NSS)

2шт.

2752840R1

DECAL

PRODUCT GRAPHIC, air cleaner instructions (NSS)

1шт.

2751930R2

PRODUCT GRAPHIC

hydraulic filter instructions (NSS)

1шт.

539403R1

CAUTION DECAL

PRODUCT GRAPHIC, caution instruction (NSS)

1шт.

2751808R1

PRODUCT GRAPHIC

alternator generator warning

1шт.

2782898R1

PRODUCT GRAPHIC, gear shift (NSS)

1шт.

2753956R1

DECAL

PRODUCT GRAPHIC, forward & reverse speed (NSS)

1шт.

2753957R1

DECAL

PRODUCT GRAPHIC, hi-lo range shift (NSS)

1шт.

537999R1

DECAL

PRODUCT GRAPHIC, hydraulic fluid warning instructions (NSS)

1шт.

2754209R1

PRODUCT GRAPHIC, fuel filter & water removal instructions (NSS)

1шт.

2753934R1

PRODUCT GRAPHIC

diesel (NSS)

2шт.

538718R1

SHIELD

heat (NSS), product graphics

1шт.

2753699R1

PRODUCT GRAPHIC, gear belt (NSS)

1шт.

65982C1

DECAL

PRODUCT GRAPHIC, caution instuction (NSS)

1шт.

2751845R1

DECAL

PRODUCT GRAPHIC, IH emblem, die cast, optional w/2751848R1

1шт.

159952

SCREW,Cross Pan Hd, #10-24 x 7/8"

10-24 x 7/8 C-Z cr-pan hd mach, product graphics

2шт.

495-21019

WASHER,#8

3/16 x 7/16 x .049 C-Z, product graphics

2шт.

2751848R1

PRODUCT GRAPHIC

IH emblem, plastic, optional W/2751845R1

1шт.

26220R1

SCREW, 10-16 x 7/8 C-Z cr-pan hd tapping type BT, product graphics

2шт.

395-31022

WASHER,#10

13/64 x 15/32 x .049 C-Z, product graphics

2шт.

537529R1

PRODUCT GRAPHIC, implement clearance check

1шт.

2754183R1

PRODUCT GRAPHIC

engine oil instruction

1шт.

395914R93

SET

PACKAGE, chassis overhaul gasket, consists of, assorted

1шт.

369497R2

GASKET

air intake manifold elbow, package assorted

1шт.

369860R1

GASKET,0.79mm Thk

front wheel hub cap, package assorted

2шт.

396028R1

GASKET

clutch housing, package assorted

1шт.

360642R2

GASKET

clutch housing top cover, package assorted

1шт.

364721R1

GASKET

clutch housing top cover cap, package assorted

1шт.

360667R3

GASKET

clutch housing rear bottom cover, package assorted

1шт.

360871R1

GASKET

clutch housing bottom cover, package assorted

1шт.

370801R1

GASKET

oil strainer opening cover, package assorted

1шт.

359129R2

GASKET

independent PTO driven, package assorted

1шт.

394262R1

WASHER

GASKET, flashing warning light, package assorted

1шт.

23977DB

GASKET

fuel tank filler cap, package assorted

1шт.

375577R1

GASKET

hyd unit housing, package assorted

1шт.

376018R1

GASKET

hyd unit housing cover, package assorted

1шт.

52999D

WASHER

GASKET, hyd pump mtg bolt, package assorted

1шт.

370892R2

GASKET

pump mtg flange, light, package assorted

1шт.

370893R2

GASKET

pump mtg flange, heavy, package assorted

1шт.

388144R2

GASKET

draft control opening cover, package assorted

1шт.

392007R1

GASKET

trans pivot shaft support bracket, package assorted

1шт.

395915R92

KIT

PACKAGE, torque amplifier overhaul gasket, consists of, assorted

1шт.

359129R2

GASKET

independent PTO driven gear cover, package assorted

1шт.

360642R2

GASKET

clutch housing top cover, package assorted

1шт.

360667R3

GASKET

clutch housing bottom cover rear, package assorted

1шт.

360871R1

GASKET

clutch comp. bottom cover, package assorted

1шт.

361187R1

GASKET

clutch hsg top cover cap, package assorted

1шт.

364721R1

GASKET

clutch hsg top cover cap, package assorted

1шт.

396028R1

GASKET

clutch housing, package assorted

1шт.

370695R1

GASKET

pump opening cover, package assorted

1шт.

370518R1

GASKET

independent PTO drive shaft BRG retainer, package assorted

1шт.

370801R1

GASKET

oil strainer opening cover, package assorted

1шт.
