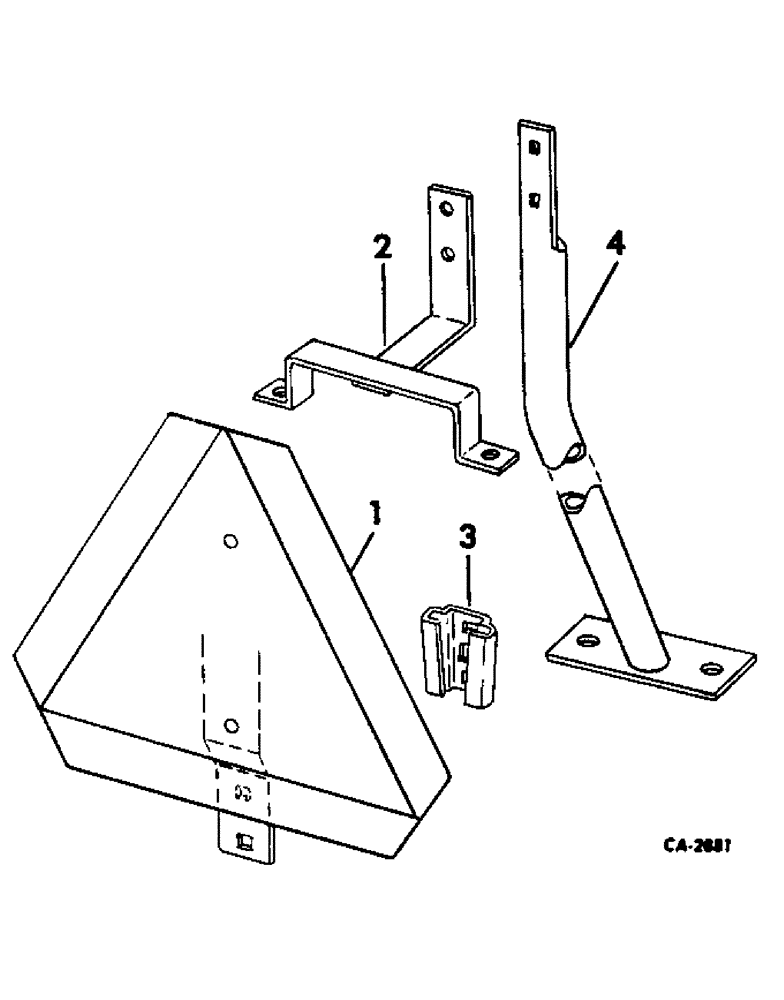

Запчасти Case IH 664 (02-00) - PARTS ACCESSORIES AND ATTACHMENTS, SLOW MOVING VEHICLE REFLECTOR EMBLEM AND MOUNTING BRACKET Accessories & Attachments / Miscellaneous

534763R91

PARTS ACCESSORY, slow moving vehicle reflector emblem mounting bracket, consists of ref nos. 2, 3 and attaching hardware

1шт.

1

407220R1

PRODUCT GRAPHIC

EMBLEM, slow moving vehicle

1шт.

2

534711R1

BRACKET, SMV emblem mtg

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

3/8-16 x 3/4 hex-hd cap

2шт.

3

398976R1

BRACKET

SOCKET, SMV emblem mtg

1шт.

19428R1

BOLT, 5/16-18 x 5/8 CD short sq-nk crg

2шт.

19296R1

NUT,5/16"-18, G5

5/16-18 C-Z hex

2шт.

4

534714R1

BRACKET ASSY, slow moving vehicle, tractors w/crown fenders

1шт.

21535R1

SCREW, 5/16-18 x 1-1/4 hex-hd cap

2шт.
