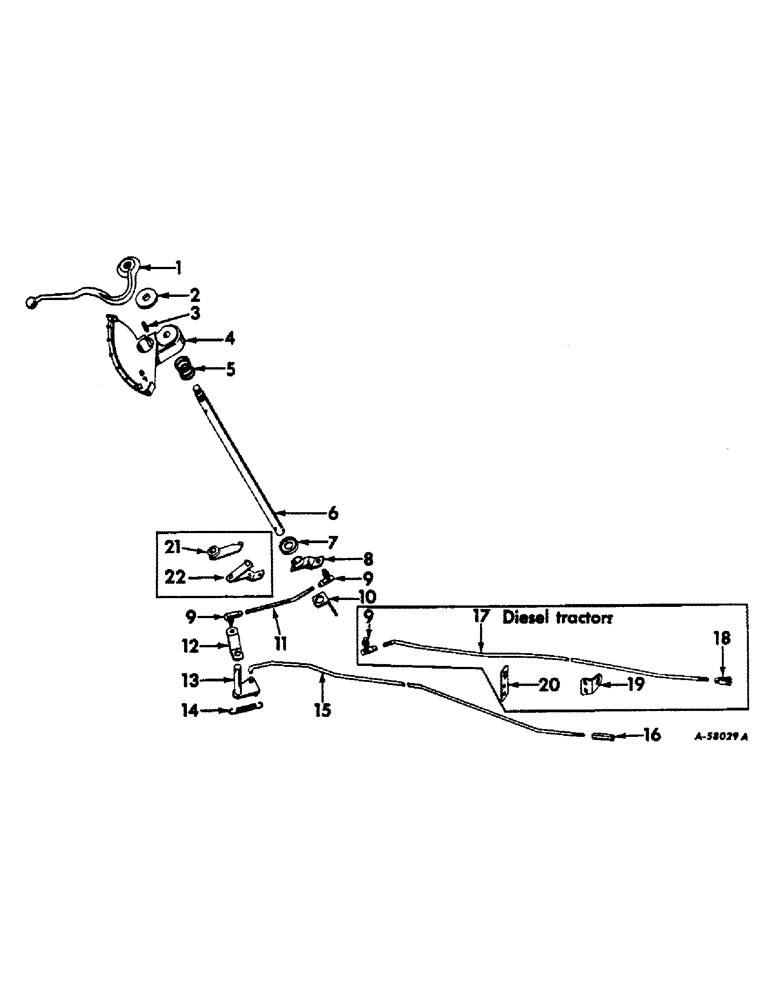

Запчасти Case IH 660 (081) - GOVERNOR, GOVERNOR CONTROLS, INTERNATIONAL 660 SERIES Governor

1

370269R2

LEVER, engine speed control

1шт.

NUT, 7/16NF ESNA elastic stop

1шт.

WASHER, 15/32 x 59/64" x .065

1шт.

2

369463R1

GASKET

DISC, governor control friction

1шт.

3

363425R1

KEY, governor control sector

1шт.

4

370268R2

SECTOR, governor control

1шт.

SCREW, 3/8 x 1-5/8" hex-hd. cap

1шт.

5

373035R1

SPRING, governor control

1шт.

6

370267R1

SHAFT, governor control

1шт.

6

373264R1

SHAFT, governor control (tractors with decelerator)

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

7

369461R1

RETAINER

RETAINER, governor control spring

1шт.

8

370270R11

LEVER ASSEMBLY, governor control

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

9

381259R91

JOINT

BALL JOINT, 5/16NF type SP (2 used on carbureted engine tractors; 3 used on diesel engine tractors) (optional with 19323R1)

1шт.

9

19323R1

JOINT

BALL JOINT, 5/16NF type F (2 used on carbureted engine tractors; 3 used on diesel engine tractors) (optional with 381259R91)

1шт.

NUT, 5/16NF (2 used on carbureted engine tractors; 3 used on diesel engine tractors)

1шт.

10

370272R1

BRACKET, governor control

1шт.

SCREW, 5/16 x 3/4" hex-hd. cap

2шт.

WASHER, 11/32 x 11/16" x 16 ga.

2шт.

11

370271R1

ROD, governor control connecting

1шт.

NUT, 5/16 NF jam

2шт.

12

370273R11

ARM ASSEMBLY, governor control bellcrank actuating

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

13

370274R12

ARM ASSEMBLY, governor control bellcrank

1шт.

13

373270R11

ARM ASSEMBLY, governor control bellcrank (tractors with decelerator)

1шт.

14

372874R1

SPRING, governor control balancing (carbureted engine tractors)

1шт.

15

372287R1

ROD, governor control (gasoline engine tractors)

1шт.

15

373083R1

ROD, governor control (L.P. gas engine tractors)

1шт.

NUT, 5/16 NF cd-pltd. jam (LH thread)

1шт.

PIN, 3/32 x 5/8" cotter

1шт.

16

369474R1

TURNBUCKLE

governor control rod adjusting

1шт.

NUT, 1/4 NF jam

1шт.

17

372288R1

ROD, governor control

1шт.

PIN, 3/32 x 5/8" cotter

1шт.

18

104037

CLEVIS

5/16 NF adjustable rod end

1шт.

NUT, 5/16 NF jam

1шт.

PIN, 5/16" rod end

1шт.

PIN, 3/32 x 1/2" cotter

1шт.

19

371180R1

GUIDE, governor control rod

1шт.

20

373933R1

BRACKET, governor control rod rear

1шт.

NUT, 1/4"

2шт.

SCREW, 1/4 x 1-1/2" hex-hd. cap

2шт.

21

373265R11

ARM ASSEMBLY, governor control shaft (tractors with decelerator)

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

WASHER, 17/32 x 1-1/16" x 13 ga.

1шт.

22

373266R91

LEVER ASSEMBLY, governor control (tractors with decelerator)

1шт.

WASHER, 17/32 x 1-1/16" x 13 ga.

1шт.
