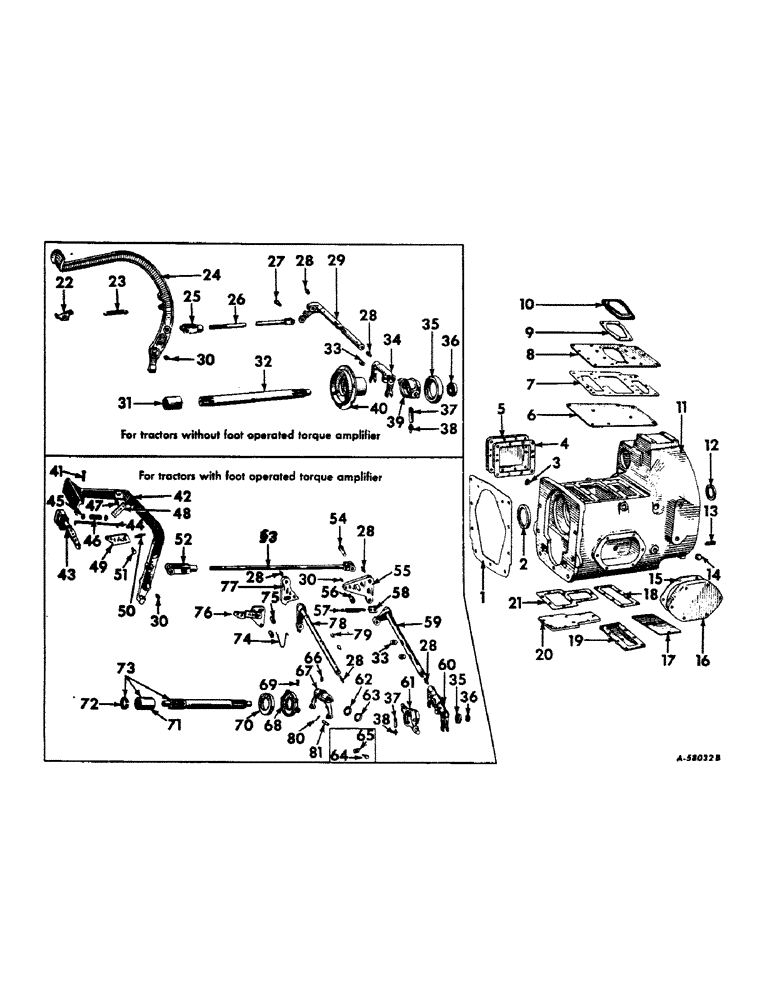

Запчасти Case IH 660 (134) - CLUTCH, CLUTCH CONNECTIONS & FOOT OPERATED TORQUE AMPLIFIER CONTROLS, INTERNATIONAL 660 SERIES (03.1) - CLUTCH

1

368794R2

GASKET

clutch housing

1шт.

2

361248R92

OIL SEAL

OIL SEAL, transmission drive shaft

1шт.

For tractors equipped with independent power take-off drive or torque amplifier.

1шт.

3

359011R1

PLUG

cup (for sealing torque amplifier clutch release shaft opening)

2шт.

4

370695R1

GASKET

pump opening cover

1шт.

For tractors equipped with independent power take-off drive or torque amplifier.

1шт.

5

368253R1

COVER, pump opening (tractors without hydra-touch power supply)

1шт.

PL

PROCURE LOCALLY

SCREW, 3/8 x 1" hex-hd. cap

10шт.

6

359009R1

COVER, clutch housing top (not used on tractors with independent power take-off or torque amplifier)

1шт.

PL

PROCURE LOCALLY

SCREW, 3/8 x 5/8" hex-hd. cap

8шт.

PL

PROCURE LOCALLY

WASHER, 13/32 x 13/16" x .065

1шт.

7

361280R3

GASKET

clutch housing top cover

1шт.

For tractors equipped with independent power take-off drive or torque amplifier.

1шт.

8

361268R1

COVER, clutch housing top

1шт.

For tractors equipped with independent power take-off drive or torque amplifier.

1шт.

PL

PROCURE LOCALLY

SCREW, 3/8 x 3/4" hex-hd. cap

15шт.

9

361258R1

GASKET

clutch housing top cover cap

1шт.

For tractors equipped with independent power take-off drive or torque amplifier.

1шт.

10

361188R1

CAP, clutch housing top cover

1шт.

For tractors equipped with independent power take-off drive or torque amplifier.

1шт.

PL

PROCURE LOCALLY

SCREW, 3/8 NF x 3/8" hex-hd. cap

4шт.

11

372575R91

HOUSING ASSEMBLY, clutch , composed of (1) bearing 359960R91, (1) housing 372576R1 (NSS), (1) oil seal 359126R94, (1) oil seal 361248R92, (1) plug 187056, (1) plug 145201R1, (2) plug 359011R1, (3) plug 364683R1, (1) plug 368251R1

1шт.

PL

PROCURE LOCALLY

PLUG, 2" sq-hd. CI pipe

1шт.

368251R1

PLUG, clutch housing bottom (5/8 x 45/64")

1шт.

145201R1

PLUG

oil retainer cup

1шт.

PL

PROCURE LOCALLY

SCREW, 1/2 x 7-1/2" hex-hd. cap

2шт.

PL

PROCURE LOCALLY

SCREW, 5/8 x 2-1/4" hex-hd. cap

9шт.

PL

PROCURE LOCALLY

WASHER, 1/2" lock

2шт.

PL

PROCURE LOCALLY

WASHER, 5/8" lock

8шт.

PL

PROCURE LOCALLY

WASHER, 5/8" external tooth lock

1шт.

12

359126R94

SEAL

OIL SEAL, power take-off drive gear

1шт.

For tractors equipped with independent power take-off drive or torque amplifier.

1шт.

13

45979D

STUD

PIN, engine rear support dowel

2шт.

14

364683R1

PLUG, clutch housing dust seal

3шт.

15

370801R1

GASKET

oil strainer opening cover

1шт.

16

372866R1

COVER, oil strainer opening

1шт.

PL

PROCURE LOCALLY

SCREW, 3/8 x 1-1/8" cap

1шт.

PL

PROCURE LOCALLY

SCREW, 3/8 x 1-3/8" cap

5шт.

17

359013R1

COVER, clutch compartment bottom

1шт.

PL

PROCURE LOCALLY

SCREW, 3/8 x 3/4" hex-hd. cap

4шт.

PL

PROCURE LOCALLY

WASHER, 3/8" lock

4шт.

18

359129R2

GASKET

power take-off driven gear cover

1шт.

For tractors equipped with independent power take-off drive or torque amplifier.

1шт.

19

359010R1

COVER, power take-off drive compartment (not used on tractors with independent power take-off or torque amplifier)

1шт.

PL

PROCURE LOCALLY

SCREW, 3/8 x 5/8" hex-hd. cap

8шт.

19

372827R11

COVER

ASSEMBLY, power take-off driven gear

1шт.

For tractors equipped with independent power take-off drive or torque amplifier.

1шт.

PL

PROCURE LOCALLY

PLUG, 3/8" sq-socket pipe

1шт.

PL

PROCURE LOCALLY

SCREW, 3/8 x 7/8" hex-hd. cap

8шт.

20

359012R1

COVER, clutch housing bottom rear (not used on tractors with independent power take-off or torque amplifier)

1шт.

366464R91

SCREW, w/washer assembly, 3/16 x 3/4" indented hex-hd. cap

9шт.

20

359148R1

COVER, seasonal disconnect (illustrated with "power take-off")

1шт.

PL

PROCURE LOCALLY

SCREW, 3/8 x 7/8" hex-hd. cap

9шт.

PL

PROCURE LOCALLY

WASHER, 3/8" lock

9шт.

21

359149R2

GASKET

seasonal disconnect or bottom cover

1шт.

For tractors equipped with independent power take-off drive or torque amplifier.

1шт.

22

360866R1

ANCHOR, return spring

1шт.

PL

PROCURE LOCALLY

SCREW, 3/8 x 5/8" hex-hd. cap

1шт.

23

357164R1

SPRING

clutch pedal return

1шт.

24

366332R1

PEDAL, clutch

1шт.

25

6692D

YOKE, clutch operating adjustable (optional with 350151R1)

1шт.

25

350151R1

YOKE, clutch operating adjustable (optional with 6692D)

1шт.

4226S

PIN

1/2 x 1-15/16" headed

1шт.

PL

PROCURE LOCALLY

PIN, 3/16 x 1" cotter

1шт.

PL

PROCURE LOCALLY

NUT, 5/8" jam

1шт.

26

366333R11

ROD ASSEMBLY, clutch operating

1шт.

27

352131R1

PIN

clutch operating rod yoke

1шт.

PL

PROCURE LOCALLY

PIN, 3/16 x 1" cotter

1шт.

28

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 138322H) 1/8"-27 x .66 lg

4шт.

28

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Optional with 109461) 1/8"-27 x .66 lg

4шт.

29

359019R11

SHAFT ASSEMBLY, clutch release

1шт.

30

273354

SHEAVE

FITTING, 3/16" straight drive type lubrication (optional with 443566)

1шт.

30

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16" straight drive type lubrication (optional with 273354)

1шт.

31

358878R1

SLEEVE

COUPLING, transmission driving shaft

1шт.

32

358877R1

SHAFT

clutch

1шт.

33

18465D

WASHER

KEY, clutch release fork

2шт.

34

5800DB

FORK

clutch release

1шт.

PL

PROCURE LOCALLY

SCREW, 3/8 x 1-1/2" hex-hd. cap

2шт.

PL

PROCURE LOCALLY

WASHER, 3/8" lock

2шт.

35

365867R91

BALL BEARING

clutch release

1шт.

36

ST544

BEARING, BALL,25mm ID x 52mm OD x 15mm W

BALL BEARING, clutch pilot

1шт.

37

365720R1

PIPE

clutch release sleeve grease

1шт.

38

Q3618

LUBE NIPPLE,5/16"-32 x .66 lg

FITTING, 5/16-32 NEF, straight lubrication (optional with 18541R91)

1шт.

38

18541R91

LUBE NIPPLE

FITTING, 5/16-32 NEF, straight lubrication (optional with Q3618)

1шт.

39

359022R2

PIVOT

SLEEVE, clutch release

1шт.

40

368254R1

CARRIER, clutch release sleeve (optional with 368255R1) (not used on tractors with independent power take-off or torque amplifier)

1шт.

40

368255R1

CARRIER, clutch release sleeve (optional with 368254R1) (not used on tractors with independent power take-off or torque amplifier)

1шт.

PL

PROCURE LOCALLY

SCREW, 3/8 x 1" hex-hd. cap

3шт.

PL

PROCURE LOCALLY

WASHER, 3/8" lock

3шт.

41

374805R1

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

SCREW, clutch pedal pad pivot

1шт.

PL

PROCURE LOCALLY

NUT, 5/16" jam

1шт.

373475R2

PEDAL, clutch

1шт.

For service replacement of clutch pedal 373475R1, also order clutch pedal pad 373476R2.

1шт.

43

373476R2

PAD, clutch pedal

1шт.

44

373479R1

ROD, stop plate operating

1шт.

45

373481R1

RETAINER, stop plate operating rod spring

2шт.

PL

PROCURE LOCALLY

PIN, 3/32 x 5/8" cotter

1шт.

46

373480R1

SPRING, pad return

1шт.

47

115285H

CLIP, clutch adjustment gage spring

1шт.

48

373464R1

CAGE, clutch adjustment

1шт.

49

373482R1

PLATE, pedal stop

1шт.

50

373484R1

SPRING, pedal stop actuating

1шт.

51

373483R1

BOLT

SCREW, stop plate

1шт.

52

127786

ADJUSTABLE CLEVIS,5/16"-18 x 4 15/16"

CLEVIS, 5/8 NF adjustable rod end

1шт.

PL

PROCURE LOCALLY

NUT, 5/8 NF jam

1шт.

PL

PROCURE LOCALLY

PIN, 3/16 x 1" cotter

1шт.

PL

PROCURE LOCALLY

PIN, 5/8 x 1-23/32" rod end

1шт.

53

373473R11

ROD ASSEMBLY, clutch operating

1шт.

54

373474R1

PIN, clutch operating rod yoke

1шт.

PL

PROCURE LOCALLY

PIN, 3/16 x 1" cotter

1шт.

PL

PROCURE LOCALLY

WASHER, 17/32 x 1" x 11 ga.

1шт.

5

373470R1

PLATE, clutch control cam roller

1шт.

PL

PROCURE LOCALLY

SCREW, 7/16 x 1-1/4" hex-hd. cap

1шт.

369324R1

WASHER, cam roller plate

1шт.

56

373516R91

ROLLER, needle bearing cam

1шт.

PL

PROCURE LOCALLY

NUT, 3/8 NF

1шт.

PL

PROCURE LOCALLY

WASHER, 3/8" lock

1шт.

374187R1

WASHER, needle bear cam roller

1шт.

57

61084D

SPRING

clutch release lever and pedal return

1шт.

58

373472R1

ANCHOR, clutch operating lever return spring

1шт.

59

373467R11

SHAFT ASSEMBLY, engine clutch release

1шт.

60

373466R1

FORK, clutch release

1шт.

PL

PROCURE LOCALLY

SCREW, 3/8 x 1-1/2" hex-hd. cap

2шт.

PL

PROCURE LOCALLY

WASHER, 3/8" lock

2шт.

61

373465R1

SLEEVE, clutch release

1шт.

62

359908R1

THRUST WASHER

torque amplifier clutch release shaft

2шт.

63

359909R1

RING

RETAINER, torque amplifier clutch release shaft

2шт.

64

359904R1

PIVOT

torque amplifier clutch release sleeve

2шт.

65

359903R1

LOCK, torque amplifier clutch release sleeve pivot

2шт.

66

362829R1

SCREW, torque amplifier clutch release fork lock

1шт.

PL

PROCURE LOCALLY

NUT, 3/8" jam

1шт.

67

359902R4

YOKE

FORK, torque amplifier clutch release

1шт.

For service replacement on International 660 series, 501 to 4258, also order two pins, 142486 and two pins, 375559R1.

1шт.

68

359900R1

RING

SLEEVE, torque amplifier clutch release

1шт.

69

359901R1

SPRING

torque amplifier clutch release sleeve

2шт.

70

362028R91

BALL BEARING

BEARING, torque amplifier clutch release

1шт.

71

364432R91

SLEEVE CYLINDER

SLEEVE, w/ring, 364411R1 assembly, clutch shaft (tractors equipped with torque amplifier)

1шт.

72

364411R1

SPRING

RING, clutch shaft sleeve snap

1шт.

73

359974R12

SHAFT

ASSEMBLY, clutch (tractors equipped with torque amplifier)

1шт.

74

373497R1

SPRING, lockout stop

1шт.

75

373493R1

SPACER, lockout plate (tractors with hydra-touch power supply)

2шт.

75

373496R1

SPACER, lockout plate (tractors without hydra-touch power supply)

2шт.

76

374178R91

STOP ASSEMBLY, lockout (tractor without hydra-touch power supply)

1шт.

76

374177R91

STOP ASSEMBLY, lockout (tractors with hydra-touch power supply)

1шт.

PL

PROCURE LOCALLY

SCREW, 3/8 x 2-1/4" hex-hd. cap (tractors without hydra-touch power supply)

2шт.

PL

PROCURE LOCALLY

SCREW, 3/8 x 2-3/4" hex-hd. cap (tractors with hydra-touch power supply)

2шт.

PL

PROCURE LOCALLY

WASHER, 13/32 x 13/16" x 16 ga.

1шт.

77

373471R3

CAM, clutch roller

1шт.

PL

PROCURE LOCALLY

SCREW, 7/16 x 1-1/4" hex-hd. cap

1шт.

369324R1

WASHER, clutch roller cam

1шт.

78

373469R11

SHAFT ASSEMBLY, torque amplifier clutch release

1шт.

79

NLS

NO LONGER SERVICED

KEY, no. 8 Woodruff

2шт.

80

12810R1

RIVET, 1/8 x 1-1/32" rd-hd (for pivot pin) International 660 series, 4259 up

2шт.

81

375559R1

PIN

torque amplifier clutch release pivot International 660 series, 4259 up

2шт.
