Запчасти Case IH 660 (105) - ELECTRICAL SYSTEM, VOLTAGE REGULATOR, DELCO-REMY, INTERNATIONAL 660 SERIES (06) - ELECTRICAL SYSTEMS

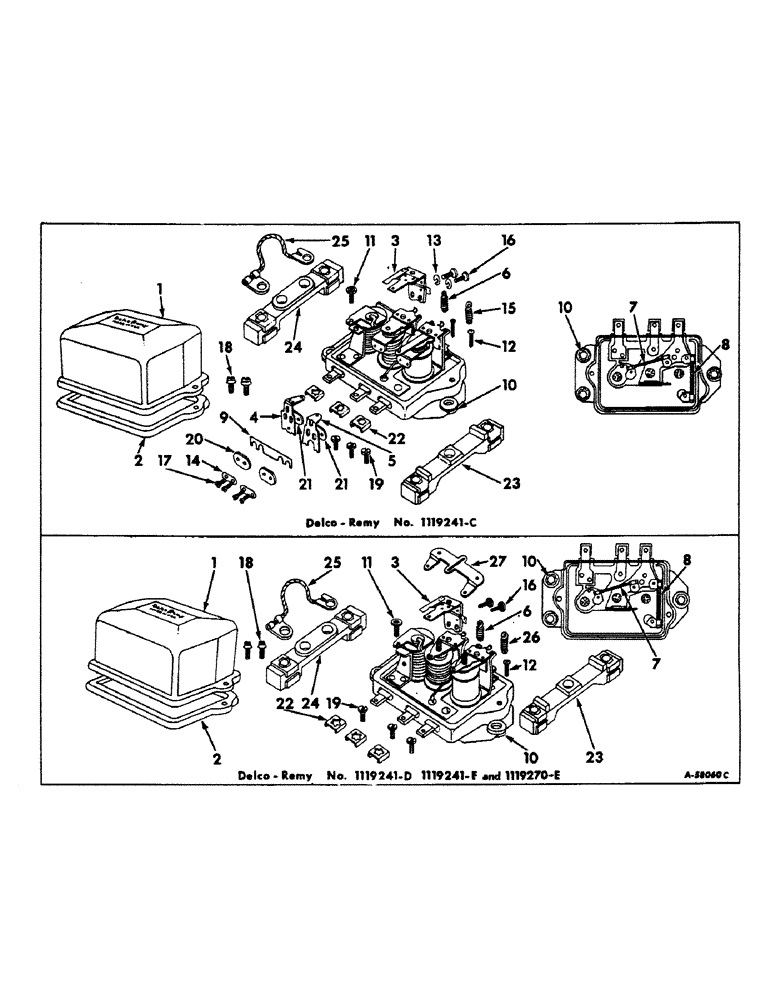

Схема запчастей Case IH 660 - (105) - ELECTRICAL SYSTEM, VOLTAGE REGULATOR, DELCO-REMY, INTERNATIONAL 660 SERIES (06) - ELECTRICAL SYSTEMS
1
16
21
12
8
22
24
10
19
11
24
7
17
18
4
9
19
7
27
5
3
25
10
13
20
2
18
8
25
11
10
15
21
3
6
6
12
2
10
26
22
1
14
23
16
23

Артикул

Название

Примечание

Количество

1119241D

REGULATOR ASSEMBLY, voltage (372651R91) (order 1119270E)

1шт.

1119270E

REGULATOR ASSEMBLY, voltage (375055R91)

1шт.

1

1931886

COVER

1шт.

2

1931887

GASKET, cover

1шт.

3

1939646

ARMATURE, relay

1шт.

4

1933239

CONTACT AND SUPPORT ASSEMBLY, voltage regulator

1шт.

5

1878517

CONTACT AND SUPPORT ASSEMBLY, current regulator

1шт.

6

1912176

SPRING, current regulator armature

1шт.

7

1910174

RESISTOR, "F", Serial Range: terminal-relay

1шт.

1910177

RESISTOR, "F", Serial Range: terminal-ground

1шт.

9

1878504

CONNECTOR, regulator attaching screw

1шт.

10

1879663

GROMMET, rubber (in base)

3шт.

11

1912159

SCREW, relay armature adjusting

1шт.

12

1944590

SCREW, regulator armature adjusting

2шт.

13

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER, relay armature adjusting screw lock

2шт.

14

1878505

WASHER

regulator contact attaching screw lock

1шт.

15

1923517

SPRING, voltage regulator armature

1шт.

16

1924764

SCREW, relay armature attaching

2шт.

17

1878516

SCREW

regulator contact attaching

4шт.

18

1943385

SCREW, cover

2шт.

19

1878502

SCREW

terminal

3шт.

20

1922599

INSULATOR, regulator contact attaching screw

2шт.

21

1878507

WASHER, regulator contact attaching screw insulating

2шт.

22

1878503

CLIP

CLAMP, terminal

3шт.

23

1911028

BRACKET

shock mount (3 hole)

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

Shock mount attaching screw Jam, 1/4"-20, G5

1шт.

273484

FRAME

SCREW, shock mount ataching

1шт.

1874495

WASHER

shock mount attaching screw lock

1шт.

24

1911034

BRACKET

shock mount (4 hole)

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

Shock mount attaching screw Jam, 1/4"-20, G5

2шт.

273484

FRAME

SCREW, shock mount attaching

2шт.

1874495

WASHER

shock mount attaching screw lock

2шт.

25

1933941

LEAD ASSEMBLY, ground

1шт.

26

1949142

SPRING, voltage regulator armature

1шт.

27

1949136

CONTACT AND SUPPORT, assembly, regulator

1шт.

Выбрано товаров: 35
