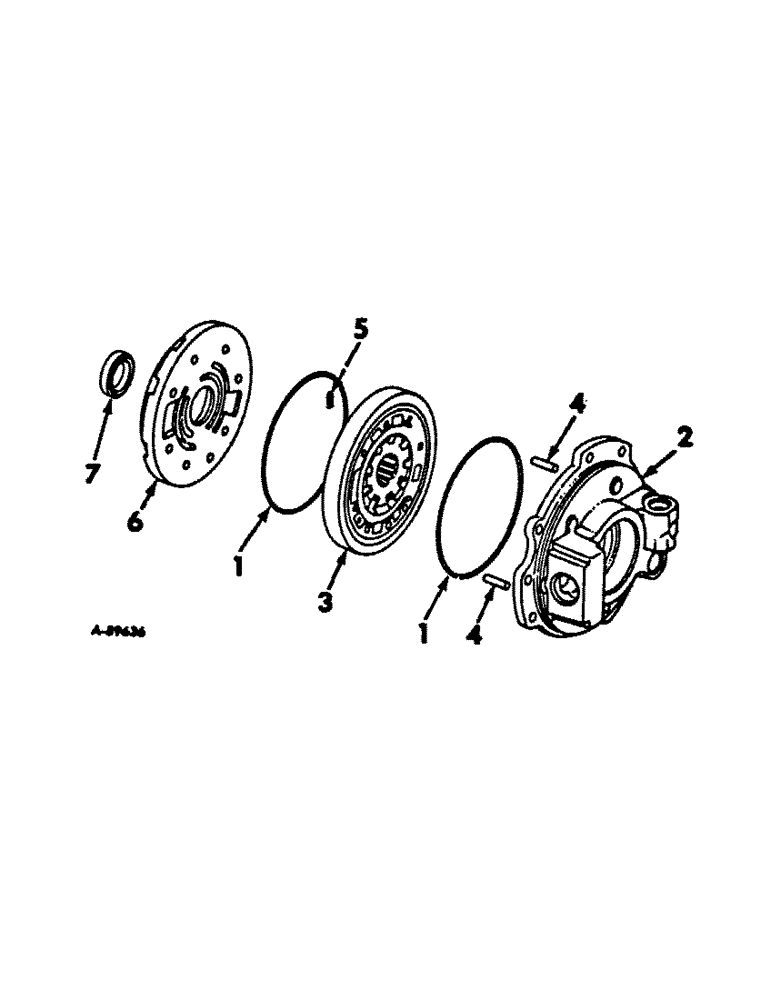

Запчасти Case IH 656 (B-07[A]) - POWER TRAIN, CHARGE PUMP TRACTORS WITH HYDROSTATIC DRIVE (03) - POWER TRAIN

1

405172R1

RING

rectangular seal

2шт.

2

PLATE, carrier, not serviced separately order pump assy, 396094R91

1шт.

3

HOUSING ASSY, cam, not serviced separately, order pump assy, 396094R91

1шт.

4

141247

BOLT

PIN, 3/8 x 1-3/8 dowel

2шт.

5

397433R1

SPRING

slipper

8шт.

6

PLATE, port, not serviced separately, order pump assy, 396094R91

1шт.

397439R1

WASHER

6шт.

397440R1

12 PT SCREW,Flg, 3/8" - 16 x 1.88", Gr 5

SCREW, hex. washer hd

6шт.

7

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

oil

1шт.

537785R1

KIT

slipper pin, consists of eight standard pins & eight undersize pins

1шт.
