Запчасти Case IH 656 (B-02) - POWER TRAIN, HYDROSTATIC DRIVE AND RELATED PARTS (03) - POWER TRAIN

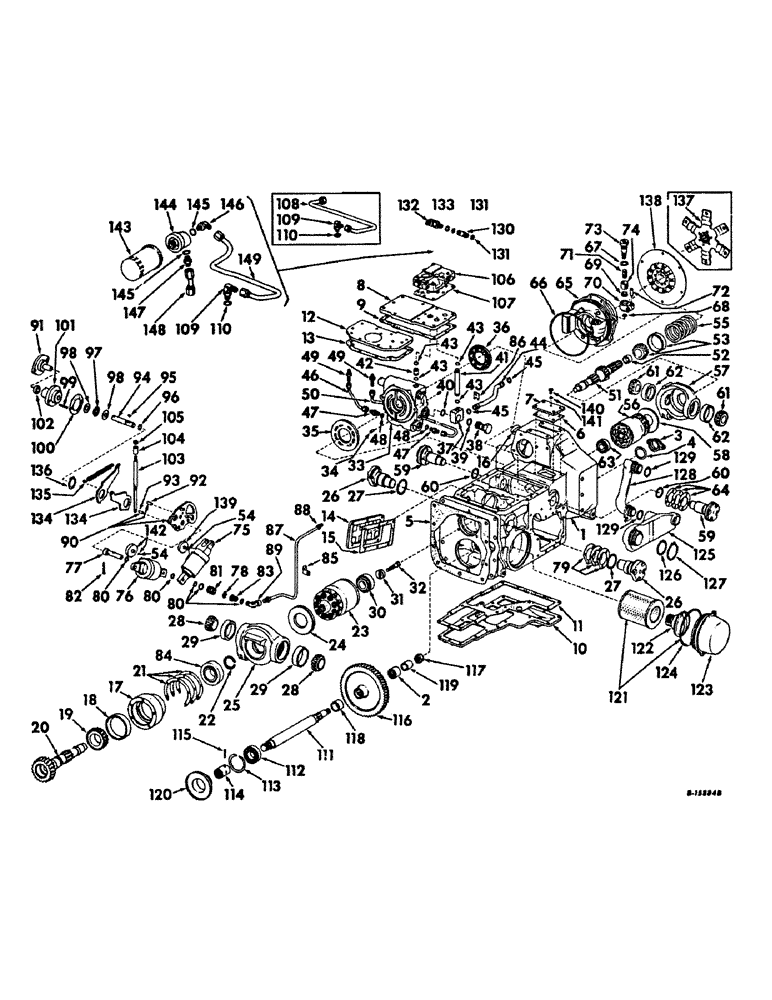

Схема запчастей Case IH 656 - (B-02) - POWER TRAIN, HYDROSTATIC DRIVE AND RELATED PARTS (03) - POWER TRAIN
48
114
13
78
38
126
87
122
67
98
137
76
65
132
73
64
104
89
28
54
45
121
115
52
128
125
135
29
119
59
59
12
22
134
14
19
149
127
46
139
93
88
33
111
96
99
25
15
11
107
145
35
112
120
60
123
57
32
34
62
60
130
145
50
10
109
30
2
143
98
54
55
61
53
103
26
109
72
9
43
27
7
74
3
71
108
140
16
129
82
144
118
133
62
41
110
44
18
105
142
90
106
40
45
8
146
147
1
92
95
86
39
101
80
28
36
48
75
131
4
63
124
134
37
116
49
91
69
129
51
113
148
31
49
6
131
17
47
47
61
138
80
79
94
5
26
23
29
117
84
83
21
100
141
24
77
56
81
43
80
136
102
58
68
20
66
43
110
97
42
43
70
27
85

Артикул

Название

Примечание

Количество

1

401167R91

HOUSING ASSY, hydrostatic drive, composed of (1) bearing 607148R91, (1) bushing 396024R1, (3) cork plug 104940, (9) cork plug 104942, (1) housing 396023R1 (NSS)

1шт.

375362R1

PIN,12.69mm OD x 34.8mm L

engine support dowel, 1/2 x 1-3/8

2шт.

20975R1

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG, 1-1/4-11 automotive sq-soc-hd, pipe side inspection

2шт.

41-3014

PLUG,Exp, 7/8"

7/8 expansion, International tractors with food pedal control

1шт.

425-1110

NUT,5/8"-18, G5

9шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 hex-hd cap

1шт.

12576R1

SCREW, 1/2-13 x 6-3/4 hex-hd cap

1шт.

2

607148R91

ROLLER BEARING,1.375" ID x 1.7505" OD x 1"

independent PTO shaft needle

1шт.

3

396026R1

COVER, front independent PTO brg

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

396027R1

GASKET

independent PTO brg cover

1шт.

5

396028R1

GASKET

hydrostatic drive housing

1шт.

6

396030R2

GASKET

pressure check cover

1шт.

7

403778R1

COVER ASSY, pressure check

1шт.

392869R1

BOLT, 3/8-16 x 3/4 hex-hd

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

116103

COPPER WASHER,10.31mm ID x 20.63mm OD x 1.65mm Thk

WASHER, 3/8 copper

1шт.

8

396033R1

COVER, drive housing front

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap, 4 for Farmall tractors

5шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap, Farmall tractors

1шт.

9

396034R1

GASKET

drive housing front cover

1шт.

10

396035R2

COVER, drive housing bottom

1шт.

445686

PLUG

3/8-18 automotive sq-hd pipe

1шт.

20953R1

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG, 1-1/4-11-1/2 auto. sq-hd pipe

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

16шт.

179846

LEVER

2шт.

11

396036R2

GASKET

bottom cover

1шт.

12

400667R91

COVER ASSY, top, Farmall tractors

1шт.

NLS

NO LONGER SERVICED

5шт.

13

396040R1

GASKET

top cover

1шт.

14

396041R3

BLOCK ASSY.

BLOCK, side cover

1шт.

NLS

NO LONGER SERVICED

6 used w/hand operated control, 3 used w/foot pedal control Hex, 3/8"-16 x 1", G5

1шт.

116103

COPPER WASHER,10.31mm ID x 20.63mm OD x 1.65mm Thk

WASHER, 3/8 copper, 6 used w/hand operated control, 3 used w/foot pedal control

1шт.

15

396042R1

GASKET

side cover

1шт.

16

192105

HOLE PLUG BUTTON,1"

PLUG, 1 C-Z button, to plug access hole in housing

1шт.

17

396043R1

HOUSING, output shaft rear brg

1шт.

206790H1

SCREW

3/8-16 x 2-1/4 hex-soc-hd cap

5шт.

18

13363D

TAPERED BEARING

CUP, output shaft rear large bearing

1шт.

19

22397V

BEARING ASSY

CONE, output shaft rear large bearing

1шт.

20

396045R1

SHAFT, output

1шт.

21

400668R91

PACKAGE

output shaft bearing housing shim

1шт.

22

396151R1

RING

output shaft brg retaining, .156

1шт.

22

396152R1

RING

output shaft brg retaining, .159

1шт.

22

396153R1

RING

output shaft brg retaining, .162

1шт.

22

396154R1

RING

output shaft brg retaining, .165

1шт.

22

396155R1

RING

output shaft brg retaining, .168

1шт.

22

393156R1

RING, output shaft brg retaining, .171

1шт.

22

396157R1

RING

output shaft brg retaining, .174

1шт.

22

396158R1

RING

output shaft brg retaining, .177

1шт.

22

396159R1

RING

output shaft brg retaining, .180

1шт.

22

396160R1

RING

output shaft brg retaining, .183

1шт.

22

396161R1

RING, output shaft brg retaining, .186

1шт.

23

KIT, motor cylinder block, for components see list of parts under details of motor cylinder block kit

1шт.

24

397501R1

WASHER

PLATE, thrust

1шт.

25

396051R1

HOUSING, motor swashplate, International tractors with foot pedal control

1шт.

25

396052R1

HOUSING, motor swashplate, tractors w/hand operated control

1шт.

26

396053R1

TRUNNION, motor swashplate

2шт.

NLS

NO LONGER SERVICED

8шт.

27

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 x 2-1/4 x 3/32, motor swashplate trunnion

2шт.

28

ST2005A

ROLLER BEARING,44.45mm ID x 30.94mm W

CONE, housing pivot bearing

2шт.

29

ST954

BEARING, CUP,1.7505" ID x 3.4385" OD x 1.2015"

CUP, housing pivot bearing

2шт.

30

396057R91

BEARING ASSY,1.3125" ID x 2.875" OD x 0.9375, 0.75"

ASSY, output shaft front, do not substitute

1шт.

31

396058R1

LOCK WASHER

output shaft brg lock

1шт.

32

389259R1

BOLT,Hex, 1/2" - 20 x 1.84", Gr 4

SCREW, brg lockwasher

1шт.

33

BODY ASSY, center section, for components see list of parts under details of center section body and related parts

1шт.

399257R1

BOLT, 1/2-13 x 3-3/4 hex-hd

2шт.

34

394825R1

DOWEL

PIN, center section dowel

2шт.

35

530774R1

PLATE ASSY.

PLATE, valve

1шт.

36

530769R1

PLATE

valve RH

1шт.

37

396073R1

TEE

BLOCK, charge tube connector

1шт.

38

396074R1

PLUG

charge line

1шт.

39

343900R1

O-RING,1.051" ID x 0.07" Width

1-1/16 x 1-3/16 x 1/16, charge line plug sealing

1шт.

40

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 1-7/16 x 3/32

1шт.

41

396075R1

BUSHING

TUBE, center section pressure by-pass

1шт.

42

396076R1

TUBE, center section exhaust

1шт.

43

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk, Center section tube seal

4шт.

44

396423R1

TUBE

ASSY, center section charge

1шт.

45

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Charge Tube Assy.

2шт.

46

396424R1

TUBE

ASSY, forward pressure

1шт.

47

404283R1

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 ORB

7/16-20 37 deg hyd flared tube, tube to relief valve

2шт.

48

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, Flared tube to relief valve

2шт.

49

9403252

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

UNION, 7/16-20 37 deg bulkhead, flared tube to drive housing

2шт.

50

396079R1

TUBE

ASSY, reverse pressure

1шт.

51

396081R11

SHAFT

ASSY, input, tractors w/540 RPM independent PTO

1шт.

51

396093R11

SHAFT ASSY, input, tractors w/1000 RPM independent PTO

1шт.

52

606676C1

BUSHING

SLEEVE, seal wear

1шт.

53

401551R91

BEARING ASSY,41.27mm ID x 76.22mm OD x 23.02mm W

ASSY, input shaft, do not substitute

1шт.

54

396109R1

RING

movable orifice

2шт.

55

400731R91

SHIM KIT

PACKAGRE, input shaft brg shim service

1шт.

56

KIT, pump cylinder block, for components see list of parts under details of pump cylinder block kit

1шт.

57

396086R1

HOUSING, pump swashplate, International tractors with foot pedal control

1шт.

57

396087R1

HOUSING, pump swashplate, tractros w/hand operated control

1шт.

58

394186R1

WASHER

PLATE, thrust

1шт.

59

396088R1

TRUNNION

pump swashplate housing

2шт.

NLS

NO LONGER SERVICED

8шт.

60

328138R1

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1-5/8 x 1-13/16 x 3/32, pump swashplate trunnion

2шт.

61

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

BEARING ASSY, pivot cone

2шт.

62

560954R1

BEARING ASSY,1.37525" ID x 2.8755" OD x 0.9688"

pivot cup

2шт.

63

396089R91

BEARING ASSY,25.4mm ID x 59.53mm OD x 23.37mm W

ASSY, pump rear, do not substitute

1шт.

64

400730R91

SHIM

PACKAGE, pump pivot shim service

1шт.

65

396094R91

PUMP

transmission charge, for components see list of parts under details of charge pump

1шт.

66453C91R

REMAN-HYD PUMP

2656 (1/63-12/71), 656 FARMALL, 656 INTERNATIONAL both (1/66-12/73), Reman for New P/N 396094R91

1шт.

66453C91C

CORE-HYDRAULIC PUMP

Return Number

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

5шт.

66

610413C1

O-RING,0.139" Thk x 7.73" ID, -265, Cl 5, 75 Duro

7-3/4 x 8 x 1/8, transmission charge pump

1шт.

67

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube

1шт.

68

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

5/8 x 3/4 x 1/16

1шт.

69

388591R1

RING

valve housing sealing

1шт.

70

396095R1

HOUSING, regulator, Farmall tractors, Serial Range: -35303

1шт.

70

396095R1

HOUSING, regulator, International tractors, Serial Range: -10744

1шт.

70

403798R1

HOUSING, regulator, Farmall tractors, Start Serial: 35304

1шт.

70

403798R1

HOUSING, regulator, International tractors, Start Serial: 10745

1шт.

71

529487R1

STRAINER ELEMENT

STRAINER, regulator valve

1шт.

72

403781R2

PRESSURE PIPE

PIPE, pressure check

1шт.

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 x 1/16

2шт.

896045R1

SNAP RING,#37, Ext

Pressure check pipe #37, Ext

1шт.

73

529486R91

VALVE

ASSY, pressure regulator, replaces 396096R11

1шт.

74

396100R1

STRAINER ELEMENT

SCREEN, regulator valve strainer

1шт.

75

CYLINDER ASSY, pump servo, for components see list of parts under details of pump servo cylinder

1шт.

396118R1

BOLT,Shldr, Hex, 7/16" - 14 x 2.83"

7/16-14 x 2-1/8 hex-hd shoulder

1шт.

76

CYLINDER ASSY, motor servo, for components see list of parts under details of motor servo cylinder

1шт.

396119R1

BOLT,Shldr, Hex, 1/2" - 13 x 2.38"

1/2-13 x 1-23/32 hex-hd shoulder

1шт.

77

396120R1

SHAFT

control cyl anchor

1шт.

78

396121R1

SPRING WASHER

wavy spring

1шт.

79

400669R91

PACKAGE

motor pivot shim sevice

1шт.

80

400732R91

STRIPPER PACKAGE

PACKAGE, anchor shaft seal service

1шт.

81

396162R1

BUSHING

anchor shaft motor support

1шт.

82

22773R1

PIN

1/4 x 2-3/16 rod end, control cyl anchor shaft retaining

1шт.

83

396124R1

FITTING

servo charge tube

1шт.

84

396046R91

BEARING ASSY,2.0005" ID x 4.126" OD x 1.1945, 0.9375"

BEARING ASSY, output shaft rear, small

1шт.

85

39612R1

CLIP, servo pressure tube retaining

1шт.

86

397504R1

BAR

charge tube retaining clip

1шт.

181330

SCREW, 5/16-24 x 7/16 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

87

396126R1

TUBE

PIPE, servo charge

1шт.

88

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting

2шт.

89

36391D

ELBOW,90 Degree x 1/4" NPT x 1/2"-20

1/2-20 hi-duty tube fitting male pipe

1шт.

90

397259R1

CAM

ASSY, control, tractors w/hand operated control

1шт.

90

396790R2

CAM ASSY, control, International tractors with foot pedal control

1шт.

91

406706R11

HUB CAP

HOUSING ASSY, cam pivot shaft, with hand operated control on Farmall tractors, Start Serial: 45387

1шт.

91

406706R11

HUB CAP

HOUSING ASSY, cam pivot shaft, with hand operated control on International tractors, Start Serial: 14153

1шт.

535050R1

SPACER

cam pivot shaft

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

sealing

2шт.

92

20138R1

PIN

3/8 x 1-1/4 dowel

1шт.

93

20020R1

DOWEL,5/16" x 1"

PIN, 5/16 x 1 dowel, tractors w/hand operated control

1шт.

94

396788R1

SHAFT, cam pivot, with hand operated control on Farmall tractors, Serial Range: -45386

1шт.

94

396788R1

SHAFT, cam pivot, with hand operated control on International tractors, Serial Range: -14153

1шт.

94

396794R1

SHAFT

cam actuating, all International tractors w/foot pedal control

1шт.

95

218217

KEY

5/8 x 3/16 Woodruff 61, with hand operated control on Farmall tractors, Serial Range: -45386

1шт.

95

218217

KEY

5/8 x 3/16 Woodruff 61, with hand operated control on International tractors, Serial Range: -14152

1шт.

95

218217

KEY

5/8 x 3/16 Woodruff 61, with hand operated control on all International tractors w/foot pedal control

1шт.

96

154665R1

SNAP RING,#75, Ext

Ring, Snap, , with hand operated control on Farmall tractors #75, Ext, Serial Range: -45386

1шт.

96

154665R1

SNAP RING,#75, Ext

Ring, Snap, , with hand operated control on International tractors #75, Ext, Serial Range: -14152

1шт.

96

154665R1

SNAP RING,#75, Ext

Ring, Snap, , with hand operated control on all International tractors w/foot pedal control #75, Ext

1шт.

97

324105R91

THRUST BEARING,19.1mm ID x 31.5mm OD x 1.98mm W

BEARING, needle thrust, with hand operated control on Farmall tractors, Serial Range: -45386

1шт.

97

324105R91

THRUST BEARING,19.1mm ID x 31.5mm OD x 1.98mm W

BEARING, needle thrust, with hand operated control on International tractors, Serial Range: -14152

1шт.

97

324105R91

THRUST BEARING,19.1mm ID x 31.5mm OD x 1.98mm W

BEARING, needle thrust, with hand operated control on all International tractors w/foot pedal control

1шт.

98

396795R1

THRUST WASHER

RACE, needle brg thrust, with hand operated control on Farmall tractors, Serial Range: -45386

2шт.

98

396795R1

THRUST WASHER

RACE, needle brg thrust, with hand operated control on International tractors, Serial Range: -14152

2шт.

98

396795R1

THRUST WASHER

RACE, needle brg thrust, with hand operated control on all International tractors w/foot pedal control

2шт.

99

20262R1

PIN, 3/8 x 2-3/4 dowel, control cam stop 3/8" x 2 3/4"

1шт.

100

396796R1

GASKET

cam actuating shaft housing

1шт.

101

396797R1,

HOUSING, cam actuating shaft, with hand operated control on Farmall tractors, Serial Range: -45386

1шт.

101

396797R1,

HOUSING, cam actuating shaft, with hand operated control on International tractors, Serial Range: -14152

1шт.

101

396797R1,

HOUSING, cam actuating shaft, with hand operated control on all International tractors w/foot pedal control

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

sealing

2шт.

102

529684R1

SEAL

actuating shaft housing lip, with hand operated control on Farmall tractors, Serial Range: -45386

1шт.

102

529684R1

SEAL

actuating shaft housing lip, with hand operated control on International tractors, Serial Range: -14152

1шт.

102

529684R1

SEAL

actuating shaft housing lip, with hand operated control on International tractors w/foot pedal control

1шт.

103

396798R21

ROD

ASSY, cam actuating, tractors w/hand operated control

1шт.

104

396024R1

BUSHING,12.72mm ID x 19.11mm OD x 38.1mm L

cam actuating rod, tractors w/hand operated control

1шт.

105

376022R91

OIL SEAL

SEAL, oil, tractors w/hand operated control

1шт.

106

BODY ASSY, multiple valve, for components see list of parts under details of multiple valve body

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

4шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

107

396142R1

GASKET

multi-valve body

1шт.

108

399235R1

TUBE ASSY, charge, Farmall tractors, Serial Range: -42165

1шт.

108

399235R1

TUBE ASSY, charge, International tractors, Serial Range: -13237

1шт.

109

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg C-Z hyd flared tube adj str thd 90 deg

1шт.

110

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

111

3996143R1

SHAFT, independent PTO driven

1шт.

112

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, independent PTO driven shaft

1шт.

113

377911R1

RING, SNAP

RING, brg retainer

1шт.

114

395358R1

COUPLING

drive shaft front

1шт.

115

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

1шт.

116

396144R1

GEAR WHEEL

GEAR, independent PTO driven, 81 T, for tractors w/540 RPM independent PTO

1шт.

116

396146R1

GEAR

independent PTO driven, 53 T, for tractors w/1000 RPM independent PTO

1шт.

117

19256R1

LOCK NUT,1"-14, G5

NUT, 1-14 ESNA stop

1шт.

118

534598R1

SPACER, independent PTO driven gear

1шт.

119

396145R1

BEARING, NEEDLE

BEARING, inner race

1шт.

120

398914R1

SEAL

SEAL, drive housing oil

1шт.

121

528507R92

FILTER

PACKAGE, oil filter cartridge and o-ring service

1шт.

122

402211R1

VALVE

ASSY, by-pass oil filter

1шт.

123

396147R1

COVER

oil filter

1шт.

NLS

NO LONGER SERVICED

2шт.

124

343943R1

O-RING,6.234" ID x 0.139" Width

6-1/4 x 6-1/2 x 1/8, oil filter cover

1шт.

125

396148R1

MANIFOLD, suction

1шт.

396149R1

SCREW, suction manifold support

1шт.

421002

SCREW W/EXT TOOTH LOCKWASHER, 5/16-18 x 5/8 slt-rd-hd mach

1шт.

126

382782R1

O-RING,0.103" Thk x 2.3" ID, -141, Cl 5, 75 Duro

2-5/16 x 2-1/2 x 3/32, oil filter sealing

1шт.

127

684645R1

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

1шт.

128

396150R1

PIPE

suction charge pump

1шт.

129

327085R1

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1-9/16 x 1-3/4 x 3/32, charge pump suction tube sealing

2шт.

130

398913R1

CONNECTOR, hydraulic

1шт.

131

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Hydraulic Connector

2шт.

132

399256R1

ELBOW, adjustable

1шт.

9410063

NUT, 1-3/16-12 adj elbow lock Blkhd, 1 3/16"-12

1шт.

133

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube

1шт.

134

396792R1

PLATE, cam centering, International tractors with foot pedal control

2шт.

135

396793R1

SPRING, cam centering, International tractors with foot pedal control

1шт.

136

698553R1

SNAP RING,#175, Ext

Ring, Snap, , International tractors with foot pedal control #175, Ext

1шт.

137

404043R94

STRIPPER PACKAGE

PACKAGE, drive plate assy service, Farmall tractors, Consists of (1) instruction 1082709R1 (NSS), (1) lubricant 531321R1 (NSS), (1) plate 399068R4 (NSS), (6) screw 324711R1, (6) washer 615890C1, Serial Range: -45041

1шт.

137

404043R94

STRIPPER PACKAGE

PACKAGE, drive plate assy service, International tractors, Consists of (1) instruction 1082709R1 (NSS), (1) lubricant 531321R1 (NSS), (1) plate 399068R4 (NSS), (6) screw 324711R1, (6) washer 615890C1, Serial Range: -14097

1шт.

324711R1

BOLT

SCREW, 5/16-18 x 3/4 nylon pellet hex-hd cap

6шт.

615890C1

WASHER

11/32 x 11/16 x 16 ga

6шт.

138

532249R91

CLUTCH ASSEMBLY

PACKAGE, drive plate assy service, Farmall tractors, Consists of (1) instruction 1082916R1 (NSS), (1) lubricant 531321R1 (NSS), (1) plate 532248R1 (NSS), (6) screw 324711R1, (6) washer 615890C1, Start Serial: 45042

1шт.

138

532249R91

CLUTCH ASSEMBLY

PACKAGE, drive plate assy service, International tractors, Consists of (1) instruction 1082916R1 (NSS), (1) lubricant 531321R1 (NSS), (1) plate 532248R1 (NSS), (6) screw 324711R1, (6) washer 615890C1, Start Serial: 14098

1шт.

324711R1

BOLT

SCREW, 5/16-18 x 3/4 nylon pellet hex-hd cap

6шт.

615890C1

WASHER

11/32 x 11/16 x 16 ga

6шт.

139

397470R94

VALVE

PLUG, w/ring, 396109R1 & washer, 403989R1, pump servo cylinder control, tractors w/hand operated control

1шт.

139

531191R91

PLUG

w/ring, 396109R1 & washer, 403989R1, pump servo cylinder control, International tractors w/foot pedal control

1шт.

140

9410356

PLUG

7/16-20 C-Z str-thd o-ring boss

1шт.

141

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

142

396117R31

PLUG

w/ring, 396109R1, motor orifice cylinder control

1шт.

143

530824R1

FILTER

ASSY, hydraulic, Farmall tractors, Start Serial: 42166

1шт.

143

530824R1

FILTER

ASSY, hydraulic, International tractors, Start Serial: 13238

1шт.

144

530822R1

BODY

BASE, hydraulic filter, Farmall tractors, Start Serial: 42166

1шт.

144

530822R1

BODY

BASE, hydraulic filter, International tractors, Start Serial: 13238

1шт.

145

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, Farmall tractors, Start Serial: 42166

1шт.

145

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, International tractors, Start Serial: 13238

1шт.

146

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg C-Z hyd flared tube adj str thd 90 deg, Farmall tractors, Start Serial: 42166

1шт.

146

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg C-Z hyd flared tube adj str thd 90 deg, International tractors, Start Serial: 13238

1шт.

147

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 37 deg hyd flared tube short swivel, Farmall tractors, Start Serial: 42166

1шт.

147

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 37 deg hyd flared tube short swivel, International tractors, Start Serial: 13238

1шт.

148

530823R1

TUBE

ASSY, filter connecting, Farmall tractors, Start Serial: 42166

1шт.

148

530823R1

TUBE

ASSY, filter connecting, International tractors, Start Serial: 13238

1шт.

149

530821R1

TUBE

ASSY, charge, Farmall tractors, Start Serial: 42166

1шт.

149

530821R1

TUBE

ASSY, charge, International tractors, Start Serial: 13238

1шт.

397483R1

GROMMET

HOSE, tube bumper

1шт.

530976R91

FILTER

PARTS ACCESSORY, recirculating oil filter, Farmall tractors, Consists of (1) base 530822R1, (1) elbow 9410978, (1) filter 530824R1, (2) o-ring 364885R1, (1) tube 530821R1, (1) tube 530823R1, (1) union 9410204, Serial Range: -42165

1шт.

530976R91

FILTER

PARTS ACCESSORY, recirculating oil filter, International tractors, Consists of (1) base 530822R1, (1) elbow 9410978, (1) filter 530824R1, (2) o-ring 364885R1, (1) tube 530821R1, (1) tube 530823R1, (1) union 9410204, Serial Range: -13237

1шт.

405945R92

PACKAGE

hydrostatic transmission gasket service

1шт.

Consists of (1) gasket 396027R1, (1) gasket 396028R1, (1) gasket 396030R1, (1) gasket 396034R1, (1) gasket 396036R1, (1) gasket 396040R1, (1) gasket 396042R1, (1) gasket 396796R1, (1) gasket 396142R1, (1) gasket 396870R1

1шт.

405946R92

SEAL KIT

PACKAGE, Hystrostsatic transmission seal ring service

1шт.

Consists of (3) o-ring 297459R1, (2) o-ring 327085R1, (1) o-ring 343900R1, (1) o-ring 364885R1, (1) o-ring 379181R1, (1) o-ring 379794R1, (1) o-ring 382782R1, (1) o-ring 383024R1, (2) o-ring 384937R1, (4) o-ring 384943R1, (1) ring 388591R1, (4) ring 392385R1, (1) o-ring 610413C1, (1) o-ring 252483R1, (1) seal 368548R1, (1) ring 396632R1, (2) seal 405172R1

1шт.

Выбрано товаров: 249
