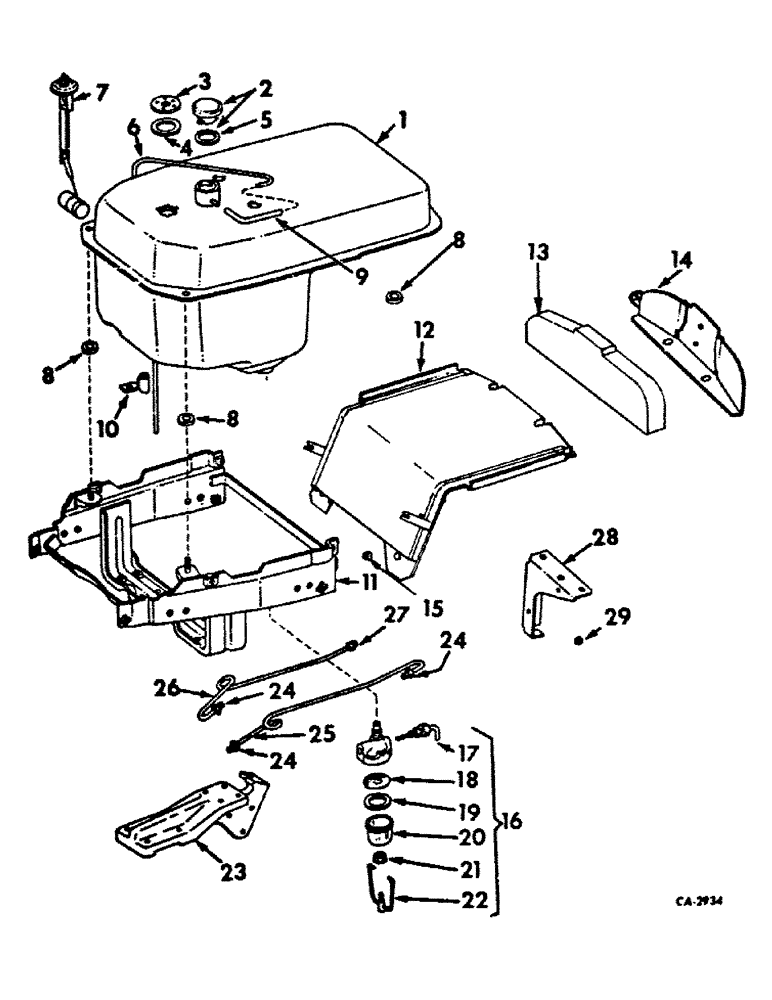

Запчасти Case IH 656 (E-08) - FUEL SYSTEM, FUEL TANK, SUPPORTS AND PIPING, INTERNATIONAL GASOLINE ENGINE TRACTORS (02) - FUEL SYSTEM

1

389939R91

TANK, w/filler cap, fuel

1шт.

2

389943R91

CAP

w/gasket, 23977DB fuel tank filler

1шт.

3

369155R1

COVER, sending unit opening

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, 10-24 x 1/2 hex-hd mach

5шт.

4

369154R1

GASKET

sending unit opening cover

1шт.

5

23977DB

GASKET

fuel tank filler cap

1шт.

6

398359R1

TUBE, fuel vent

1шт.

7

377104R91

SENDER UNIT

SENDING UNIT ASSY, electric fuel gauge

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

8

60671DA

WASHER,11.94mm ID x 30.48mm OD x 8.13mm Thk

PAD, fuel tank insulating

4шт.

9

389935R2

HOSE, fuel vent

1шт.

10

389942R1

CLIP, fuel vent pipe oil pan

1шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

11

379198R92

SUPPORT ASSY, fuel tank & cowl rear

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

4шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

6шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 hex-hd cap

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

12

530464R91

SHIELD, lower heat w/insulation, 530466R1, Start Serial: 13201

1шт.

12

530464R91

SHIELD, lower heat w/insulation, order parts accessory, 530484R91, Serial Range: -13200

1шт.

530466R1

INSULATION, lower heat shield

1шт.

13

530471R2

INSULATION, upper heat shield, Start Serial: 13201

1шт.

14

530470R1

SHIELD, heat upper, replaces 377658R2

1шт.

15

399397R1

BUSHING

snap, Start Serial: 13201

1шт.

16

366988R91

SLEEVE ASSY

STRAINER, w/coupling nut, fuel

1шт.

17

259403R91

COCK

STEM ASSY

1шт.

18

49923D

FILTER SCREEN

SCREEN ASSY

1шт.

19

360679R1

GASKET

1шт.

20

357958R1

BOWL

1шт.

21

50061D

NUT

strainer

1шт.

22

49947D

COLLAR CLAMP

BAIL ASSY, hydrostatic tractors, will work for 399071R1

1шт.

23

403583R1

SUPPORT, fuel tank

1шт.

24

21899D

NUT, 1/2-20 hi-duty tube fitting

1шт.

25

397789R21

PIPE ASSY, w/two nut, 28899D, for use with IH carburetor

1шт.

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

1/2-20 hi-duty tube fitting male

1шт.

26

397801R11

PIPE ASSY, w/one nut, 29899D and one nut, 142427, tractors with hydrostatic drive, for use w/Marvel Schebler carburetor

1шт.

27

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT, 1/2-20 inverted flared tube

1шт.

28

369394R11

SUPPORT ASSY, fuel tank front

1шт.

29

372820R1

SPACER, fuel tank support

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

530484R91

PARTS ACCESSORY, extended & insulated heat shield, consists of ref nos. 12, 13, 15 and 25, also included in parts accessory tool box assy, 530632R91, for components refer to tool box listing in section M, Serial Range: -13200

1шт.
