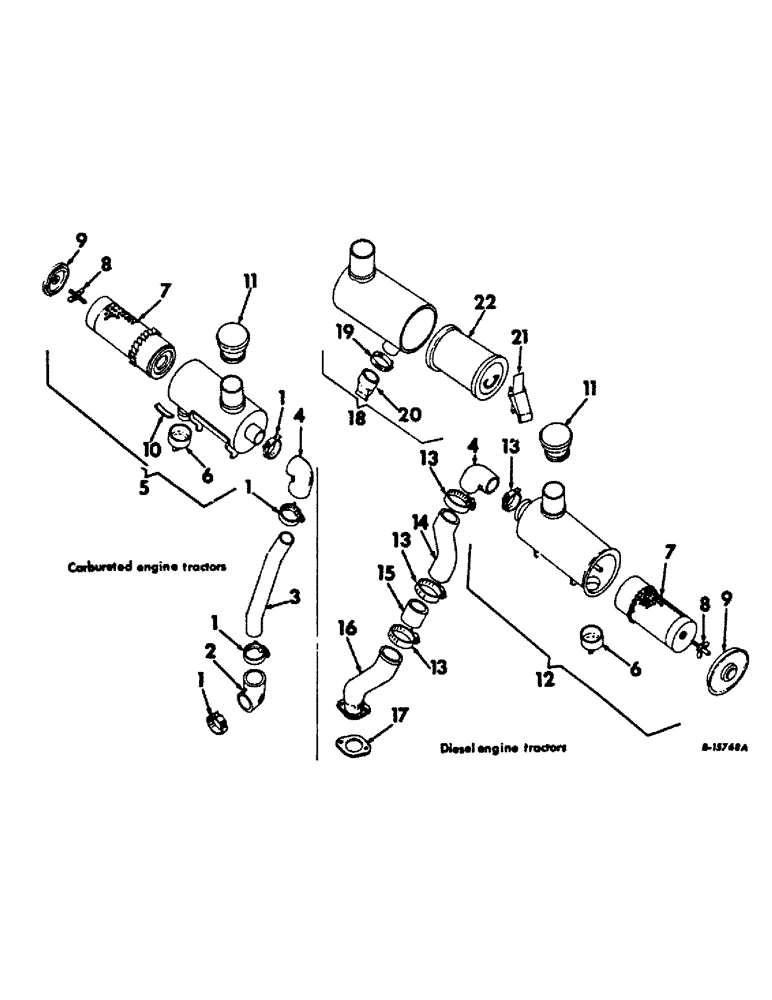

Запчасти Case IH 656 (E-03) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS, INTERNATIONAL TRACTORS (02) - FUEL SYSTEM

1

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, air cleaner pipe hose

4шт.

2

396010R1

INTAKE AIR HOSE,2.25" ID, 2.50" ID, SAE 20R4 Class SC

Carburetor Air Inlet, For IH carburetor 2.25" ID, 2.50" ID, SAE 20R4 Class SC

1шт.

2

397800R1

HOSE, carburetor air inlet, for Marvel-Schebler carburetor

1шт.

3

396008R1

TUBE, air, Serial Range: cleaner-carburetor

1шт.

4

306190R1

HOSE ASSY.

HOSE, air cleaner pipe, will work for 396009R1

1шт.

5

396012R91

CLEANER ASSY, air, less weather cap, optional w/406731R91

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

3/8-16 x 11/16 hex-hd cap

2шт.

6

383734R2

VALVE

dust

1шт.

7

383731R93

AIR CLEANER,Round, 2.62" ID x 5.25" OD x 14" L

Filter, Primary

1шт.

8

385925R91

NUT

AND GASKET ASSY

1шт.

9

384828R91

COVER

ASSY

1шт.

10

387067R1

SPRING

dust unloader

1шт.

11

365316R91

CYLINDER END CAP

CAP ASSY, weather

1шт.

12

399631R91

CLEANER ASSY, air, less weather cap, optional w/406731R91

1шт.

402711R1

RING, air cleaner pipe seal

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

3/8-16 x 11/16 hex-hd cap

2шт.

13

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, air cleaner pipe hose

4шт.

14

396839R2

TUBE, air cleaner outlet

1шт.

15

396838R1

HOSE, air cleaner

1шт.

16

369496R1

ELBOW, air cleaner outlet

1шт.

179858

SUPPORT

SCREW, 7/16-14 x 1 hex-hd cap

2шт.

17

396497R2

GASKET, air cleaner outlet elbow

1шт.

18

406731R91

CLEANER ASSY, air, optional w/396012R91 and 399631R91

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

3/8-16 x 11/16 hex-hd cap

2шт.

19

305406C91

CLAMP

1шт.

20

401265R1

LOCK VALVE

VALVE, unloader

1шт.

21

406732R1

LEVER AND SPRING ASSY

1шт.

22

406733R1

ELEMENT ASSY

1шт.
