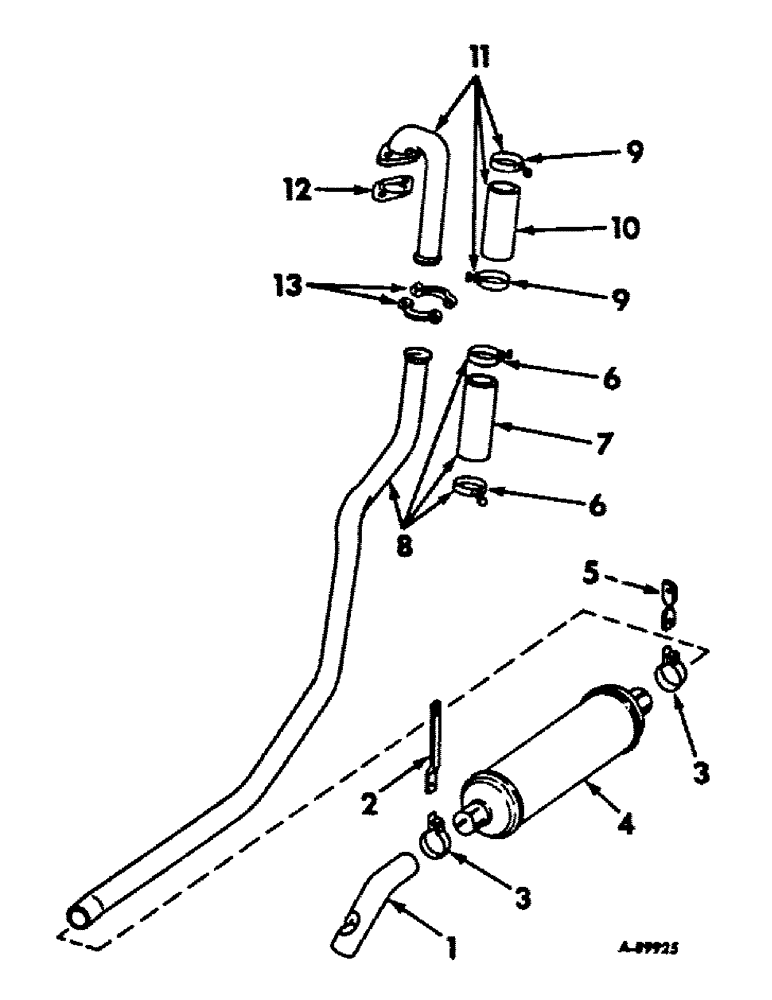

Запчасти Case IH 656 (D-3) - DIESEL ENGINE, UNDERSLUNG EXHAUST SYSTEM, INTERNATIONAL TRACTORS (01) - ENGINE

1

369288R1

PIPE

tail

1шт.

2

369287R1

SUPPORT

muffler rear

1шт.

369324R1

SPACER, muffler rear support

1шт.

3

48889DA

CLAMP

exhaust muffler

2шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, 3/8-24 x 1-1/2 hex-hd cap

2шт.

93082H

NUT

exhaust muffler clamp

2шт.

4

371039R91

MUFFLER

exhaust

1шт.

4

371039R91GV

MUFFLER

Value, Muffler

1шт.

5

396490R1

SUPPORT, muffler front

1шт.

6

29979D

CLAMP

exhaust pipe asbestos sleeve

2шт.

7

382291R2

SLEEVE

exhaust pipe asbestos

1шт.

8

396487R11

PIPE ASSY, exhaust

1шт.

9

29980D

CLAMP, exhaust pipe elbow asbestos tape

2шт.

10

370639R1

TAPE

exhaust pipe elbow asbestos

1шт.

11

396489R11

ELBOW ASSY, exhaust pipe

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

369282R2

GASKET

exhaust pipe elbow

1шт.

13

369283R1

CLAMP

exhaust pipe

2шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.
