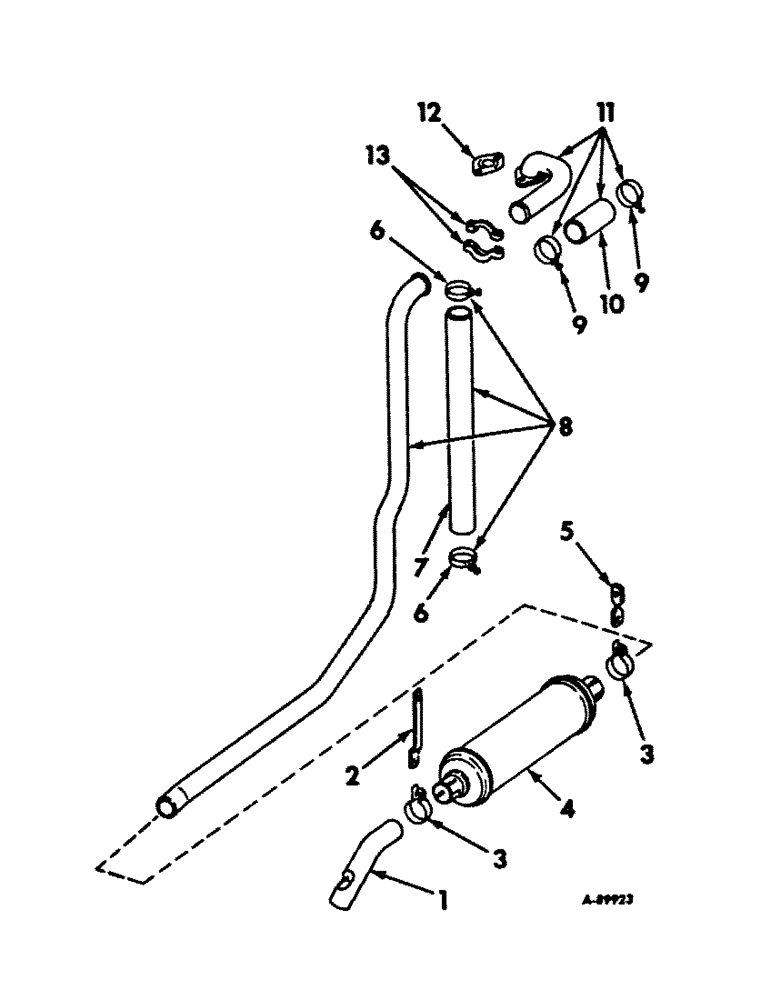

Запчасти Case IH 656 (C-3) - CARBURETED ENGINE, UNDERSLUNG EXHAUST SYSTEM, INTERNATIONAL TRACTORS (01) - ENGINE

1

369288R1

PIPE

tail

1шт.

2

369287R1

SUPPORT

muffler rear

1шт.

369324R1

SPACER, muffler rear support

1шт.

3

48889DA

CLAMP

exhaust muffler

2шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, 3/8-24 x 1-1/2 hex-hd cap

2шт.

93082H

NUT

exhaust muffler clamp

2шт.

4

371039R91

MUFFLER

exhaust

1шт.

4

371039R91GV

MUFFLER

Value, Muffler

1шт.

5

396490R1

SUPPORT, muffler front

1шт.

6

29979DD

CLAMP, exhaust pipe asbestos sleeve

2шт.

7

381817R2

SLEEVE

exhaust pipe asbestos

1шт.

8

396486R11

PIPE

ASSY, exhaust

1шт.

9

29980D

CLAMP, exhaust pipe below asbestos tape

2шт.

10

370639R1

TAPE

exhaust pipe below asbestos

1шт.

11

396488R11

ELBOW ASSY, exhaust pipe

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

369282R2

GASKET

exhaust pipe elbow

1шт.

13

369283R1

CLAMP

exhaust pipe

2шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.
