Запчасти Case IH 656 (C-2) - CARBURETED ENGINE, VERTICAL EXHAUST SYSTEM (01) - ENGINE

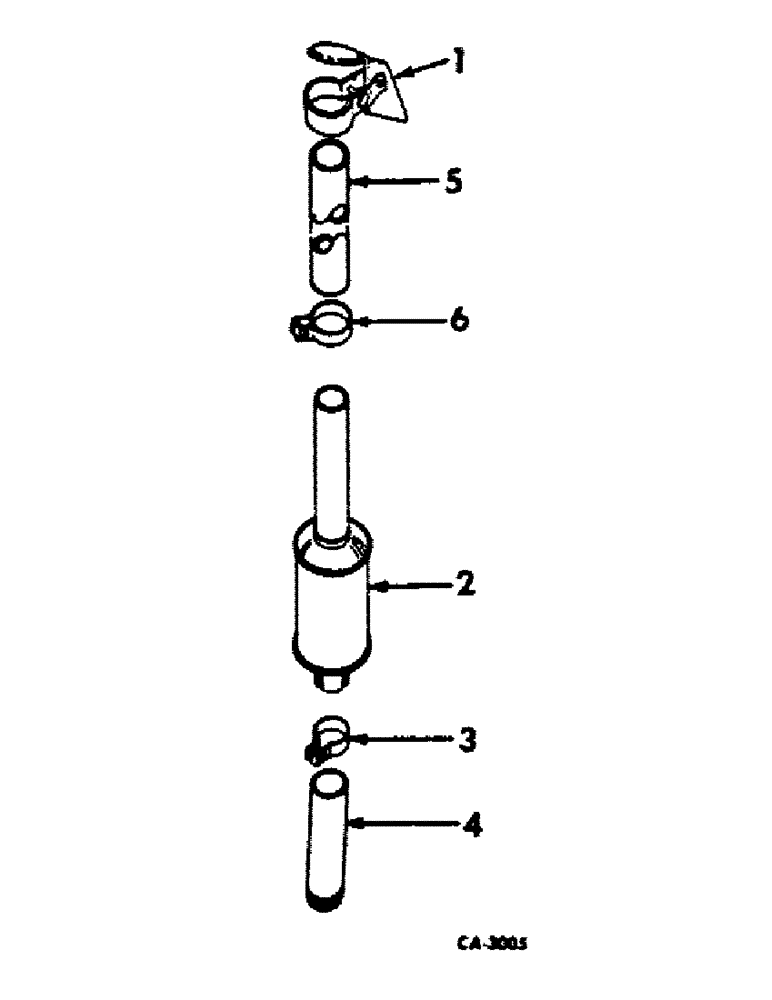

Схема запчастей Case IH 656 - (C-2) - CARBURETED ENGINE, VERTICAL EXHAUST SYSTEM (01) - ENGINE
4
5
3
6
1
2

Артикул

Название

Примечание

Количество

1

321977R91

PLUG

CAP ASSY, exhaust, use with pipe, 402985R1

1шт.

1

403586R1

CYLINDER END CAP

CAP ASSY, exhaust, use with pipe, 527705R1 or muffler not equipped with extension

1шт.

2

403550R2

MUFFLER

exhaust, gear drive tractors

1шт.

2

403551R1

MUFFLER

exhaust, hydrostatic drive tractors

1шт.

2

403551R1GV

MUFFLER

Value, Muffler

1шт.

3

403585R1

CLAMP

exhaust muffler

1шт.

102635

NUT,3/8"-16, G5

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

369613R1

PIPE

exhaust, Farmall tractors

1шт.

4

370643R2

PIPE

exhaust, International tractors

1шт.

5

527705R1

PIPE, exhaust muffler extension, tractors w/cab or protective frame, on orders for pipe, 402985R1 furnish pipe, 527705R1, clamp, 527706R1 and cap, 403586R1

1шт.

6

527706R1

CLAMP, exhaust muffler extension pipe, tractors with cab or protective frame

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8-16 x 1-1/2 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Выбрано товаров: 16
