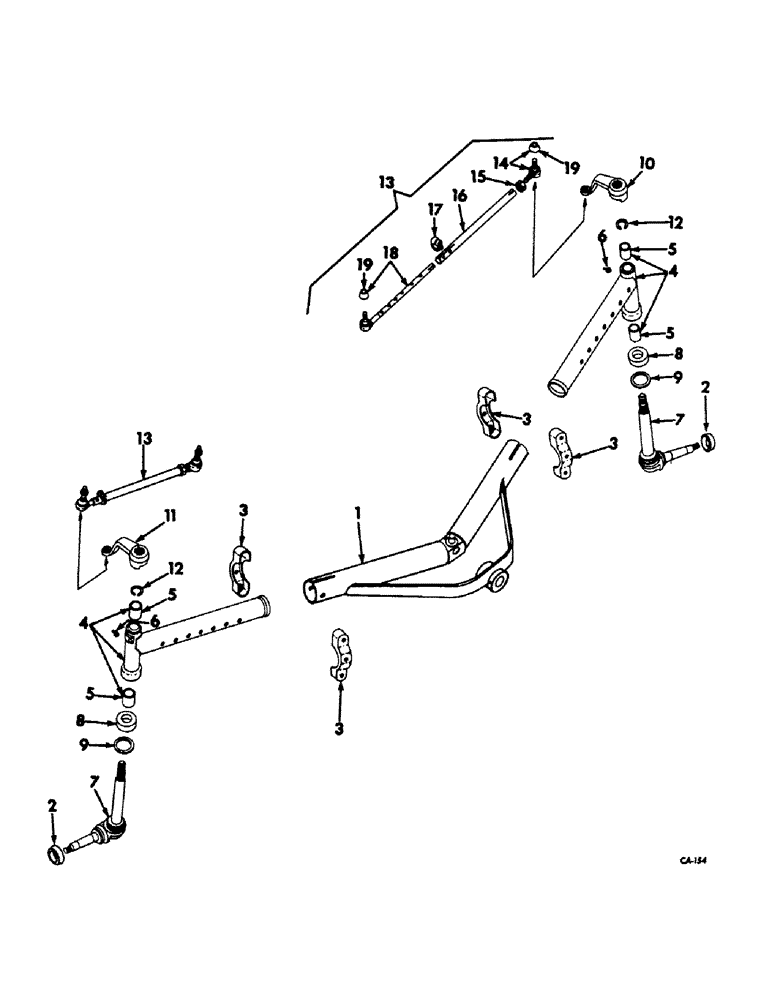

Запчасти Case IH 656 (J-29) - STEERING MECHANISM, ADJUSTABLE WIDE TREAD FRONT AXLE, INTERNATIONAL TRACTORS Steering Mechanism

530715R91

PARTS ACCESSORY, adjustable wide tread front axle 56 to 80 in. tread, consists of all unmarked parts and those marked unit A

1шт.

530716R91

PARTS ACCESSORY, row crop, 56 to 80 in. tread, consists of all unmarked parts and those marked Unit B

1шт.

1

395974R92

AXLE ASSY, front

1шт.

2

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE, front axle inner wheel brg

2шт.

3

361851R1

CLAMP, front axle extension

4шт.

271569

SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 hex-hd cap

4шт.

10239

NUT, 5/8-11 hex.

4шт.

302877R1

WASHER

.656 x 1.06 plain

4шт.

22327R1

SCREW, 5/8-11 x 5-1/4 type 4 hex-hd cap

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

4

379641R91

EXTENSION

ASSY, front axle, unit A

2шт.

4

397059R91

EXTENSION ASSY, front axle, unit B

2шт.

5

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle post

4шт.

6

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, steering knuckle pivot pin lub 3/16 str drive

2шт.

7

406265R92

STEERING KNUCKLE

KNUCKLE ASSY, steering, shaft 9.183", unit A, also order ring, 146008R1 on tractors w/serial no. 11780 & below, composed of (1) knuckle 369143R1 (NSS), (1) pin 406264R2 (NSS), (1) seal 48539DA, (1) shield 48541D, Serial Range: -13199

2шт.

7

406267R92

STEERING KNUCKLE

KNUCKLE ASSY, steering, shaft 9.19", unit A, composed of (1) knuckle 374386R1 (NSS), (1) pin 406264R2 (NSS), (1) seal 370254R91, (1) shield 48701D, Start Serial: 13200

2шт.

7

406266R92

KNUCKLE

ASSY, steering, unit B, shaft 12.711", composed of (1) knuckle 369143R1 (NSS), (1) pin 406263R2 (NSS), (1) seal 48539DA, (1) shield 48541D, Serial Range: -13199

2шт.

This one has smaller wheel spindle dia. of the two.

1шт.

7

530338R92

KNUCKLE ASSY, steering, shaft 12.711", unit B, composed of (1) knuckle 374386R1 (NSS), (1) pin 40623R2 (NSS), (1) seal 370254R91, (1) shield 48701D, Start Serial: 13200

2шт.

This one has larger wheel spindle dia. of the two.

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

2шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt hex., Serial Range: -13199

2шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex., Start Serial: 13200

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

Q326

WASHER

1-13/32 x 2-3/4 x .0478 ga

2шт.

8

405831R91

BEARING

steering knuckle thrust

2шт.

9

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

10

379642R1

LEVER

ARM, steering knuckle LH

1шт.

11

379643R1

LEVER

ARM, steering knuckle RH

1шт.

12

361850R1

RING

steering knuckle arm snap, Serial Range: -11780

2шт.

12

146008R1

SNAP RING,M41.15 x 2.46mm Thk, Ext

RING, steering knuckle arm snap, Start Serial: 11781

2шт.

13

379549R92

ROD

with clamps tie

2шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

4шт.

578274R1

WASHER

21/32 x 1 x 11 ga

4шт.

14

379551R92

END ASSY.

END, w/cover, 382562R1 and nut, 102649, tie rod threaded

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

15

374062R1

JAM NUT

NUT, 1-1/16 hex. tie rod end

2шт.

16

379550R1

TUBE,0.948" ID, .333" OD, 17" Length

tie rod

2шт.

17

375620R1

CLAMP

tie rod

2шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

2шт.

181440

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 5

SCREW, 1/2-20 x 2-1/2 hex-hd cap

2шт.

106500

WASHER, 1/2 light lock

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1-1/16 x 17/32 x .095

2шт.

18

379552R92

END

w/cover, 382562R1 and nut, 102649, tie rod adj

2шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

19

382562R1

SEAL

COVER, tie rod end dust

4шт.
