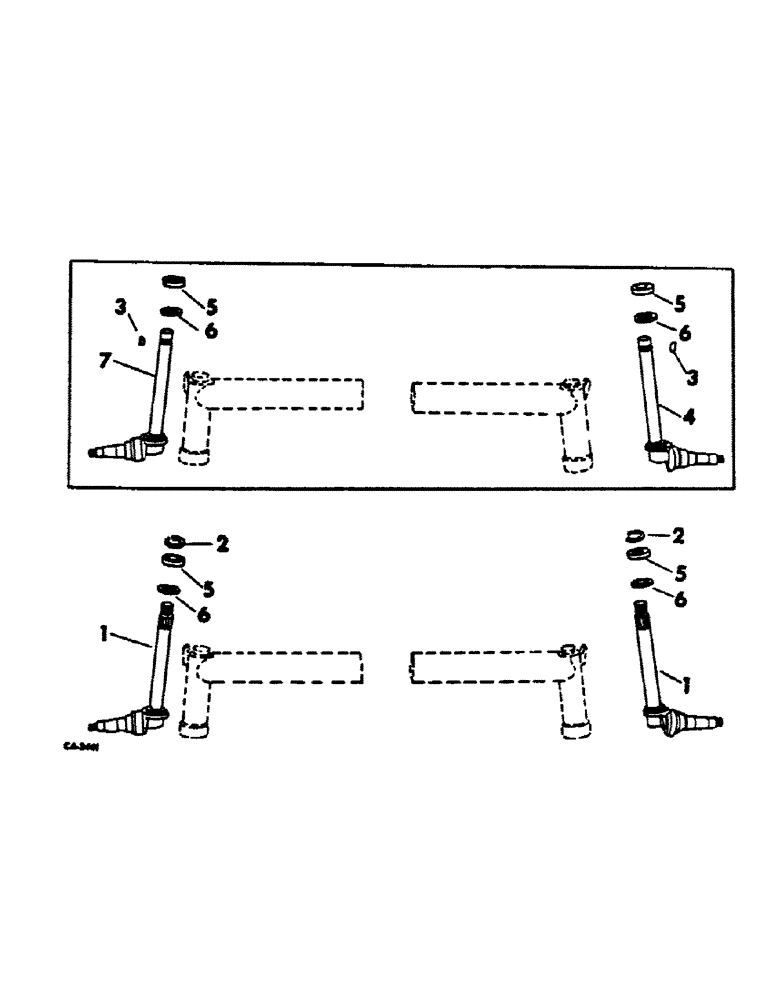

Запчасти Case IH 656 (J-27) - STEERING MECHANISM, HEAVY DUTY STEERING KNUCKLE Steering Mechanism

528492R91

PARTS ACCESSORY, heavy duty steering knuckle, International tractors not equipped w/heavy duty front axle attachments

1шт.

Consists of (2) bearing 405831R91, (2) bearing 619386R91, (2) bearing 618023R91, (2) bearing 619387R1, (2) bearing 618024R1, (2) fitting 443566, (2) hub assy 391823R11, (2) knuckle assy 406267R92, (2) retainer 48703D, (2) ring 146008R1, (2) washer 370255R2, (2) washer 15943DA

1шт.

529010R91

PARTS ACCESSORY, heavy duty steering knuckle, Farmall tractors,equipped w/adjustable wide tread front axle without heavy duty steering knuckle, Serial Range: -41971

1шт.

Consists of (2) bearing 405831R91, (2) bearing 619386R91, (2) bearing 618023R91, (2) bearing 619387R1, (2) bearing 618024R1, (2) fitting 443566, (2) hub assy 391823R11, (2) key 40093D, (1) knuckle assy 383912R92, (1) knuckle assy 383913R92, (2) retainer 48703D, (2) washer 370255R2, (2) washer 15943DA

1шт.

529011R91

PARTS ACCESSORY, heavy duty, steering knuckle, Farmall tractors, equipped with adjustable wide tread front axle without heavy duty steering knuckle., Start Serial: 41972

1шт.

Consists of (2) bearing 405831R91, (2) bearing 619386R91, (2) bearing 618023R91, (2) bearing 619387R1, (2) bearing 618024R1, (2) fitting 443566, (2) hub assy 391823R11, (2) knuckle assy 406267R92, (2) retainer 48703D, (2) ring 146008R1, (2) washer 370255R2, (2) washer 15943DA

1шт.

1

406267R92

STEERING KNUCKLE

KNUCKLE ASSY, steering, International tractors, composed of (1) knuckle 374386R1 (NSS), (1) pin 406264R2 (NSS), (1) seal 370254R91, (1) shield 48701D

1шт.

1

401768R92

STEERING KNUCKLE

KNUCKLE ASSY, steering, Farmall tractors, composed of (1) knuckle 374386R1 (NSS), (1) pin 401769R1 (NSS), (1) seal 370254R91, (1) shield 48701D, Start Serial: 41972

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

2шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga

2шт.

2

146008R1

SNAP RING,M41.15 x 2.46mm Thk, Ext

RING, steering knuckle retaining, Farmall tractors, Start Serial: 41972

2шт.

2

146008R1

SNAP RING,M41.15 x 2.46mm Thk, Ext

RING, steering knuckle retaining, International tractors, Serial Range: -11781

2шт.

3

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, 1/4 x 2-1/8 Woodruff, Farmall tractors, Serial Range: -41971

2шт.

4

383912R92

KNUCKLE

ASSY, steering LH, Farmall tractors, composed of (1) knuckle 374386R1 (NSS), (1) pin 372409R1, (1) seal 370254R91, (1) shield 48701D, Serial Range: -41971

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

5

405831R91

BEARING

steering knuckle pivot thrust

2шт.

6

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt

2шт.

7

383913R92

KNUCKLE JOINT

KNUCKLE ASSY, steering RH, Farmall tractors, composed of (1) knuckle 374386R1 (NSS), (1) pin 372409R1, (1) seal 370254R91, (1) shield 48701D, Serial Range: -41971

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 stl hex.

1шт.
